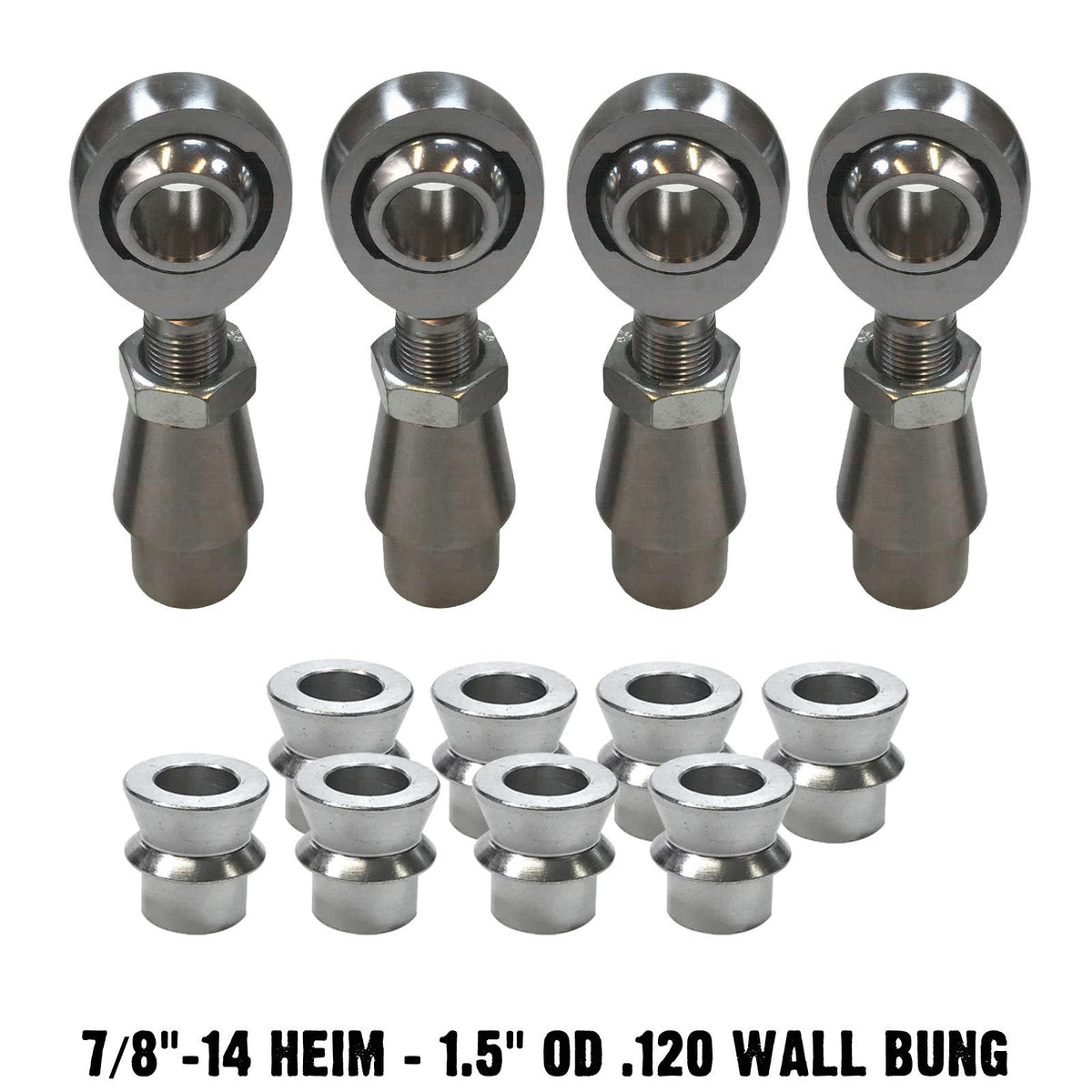

7/8 Chromoly Heim Joint Rod End Kit for 1.5" Tubing – Sway Bar Link | Sway Bar Link Fab Kit - 7/8" Heim, 1.5"OD .120 or .250 Wall Bung - Shown with Optional Misalignment Spacers

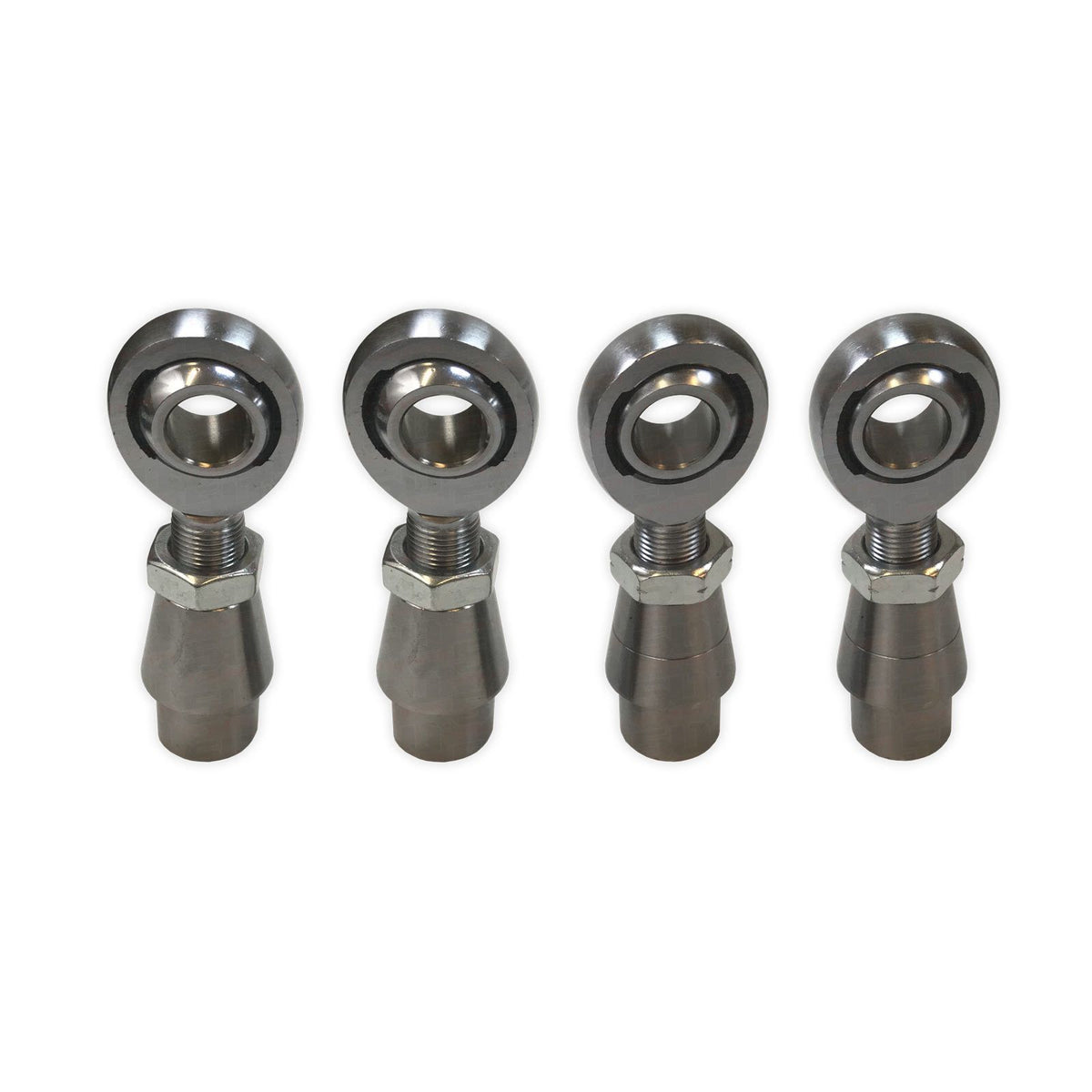

| Sway Bar Fab Kit - 7/8" Heim, 1.5"OD .120 or .250 Wall Bung

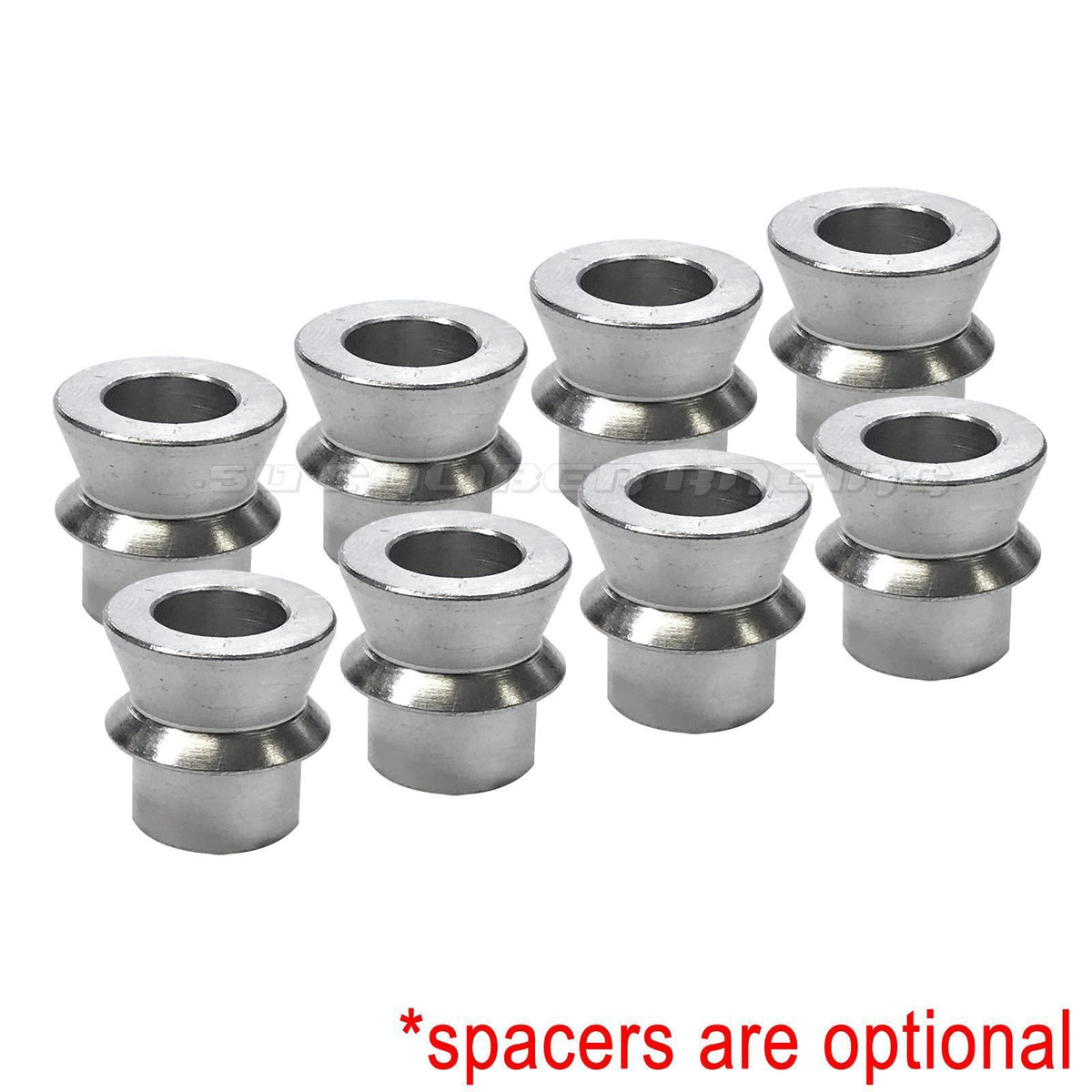

7/8 Chromoly Heim Joint Rod End Kit for 1.5" Tubing – Sway Bar Link | High Offset Misalignment Spacers made from Zinc plated Chromoly alloy

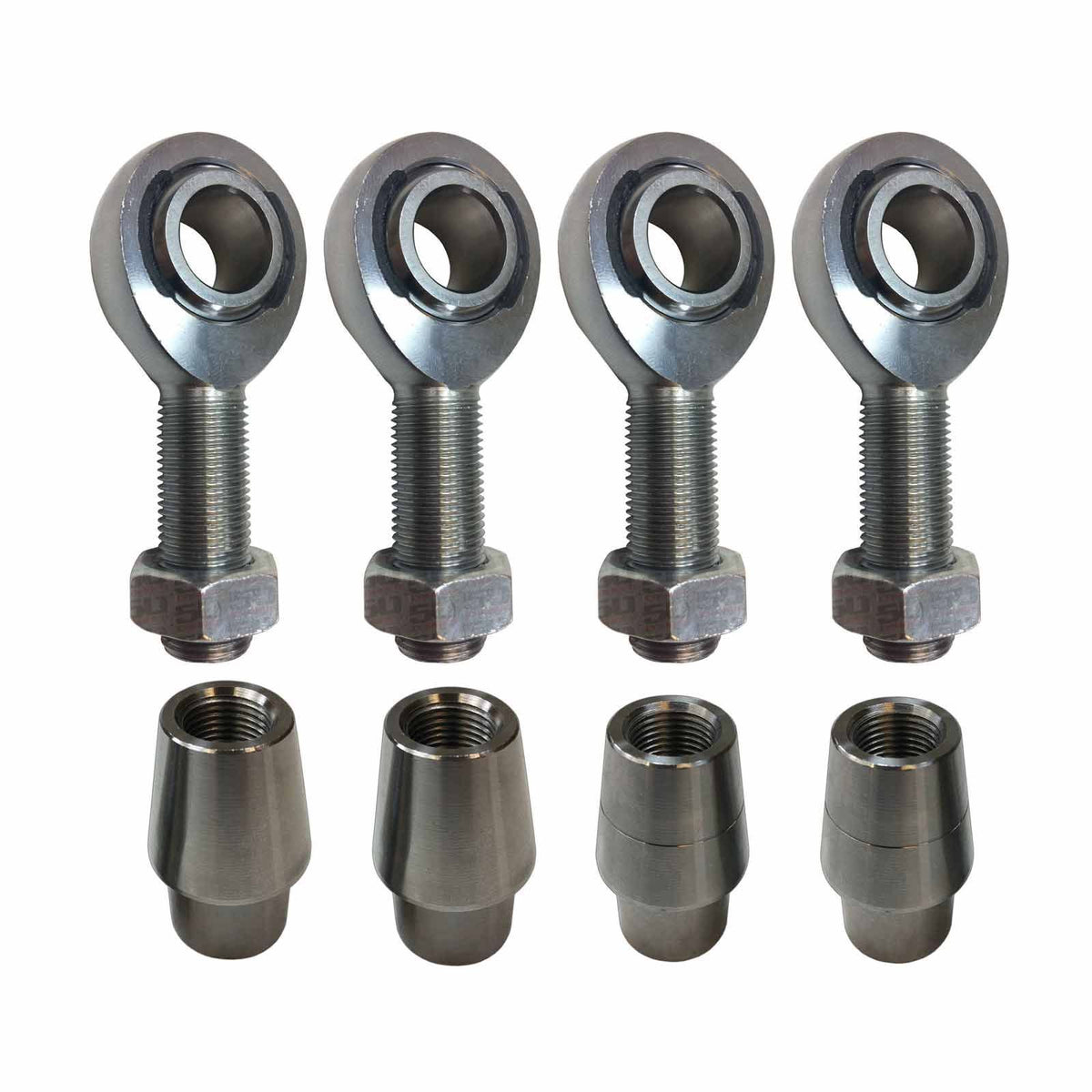

| 7/8" Sway Bar Link Rod End Kit - Chromoly Heim Joints and Bungs

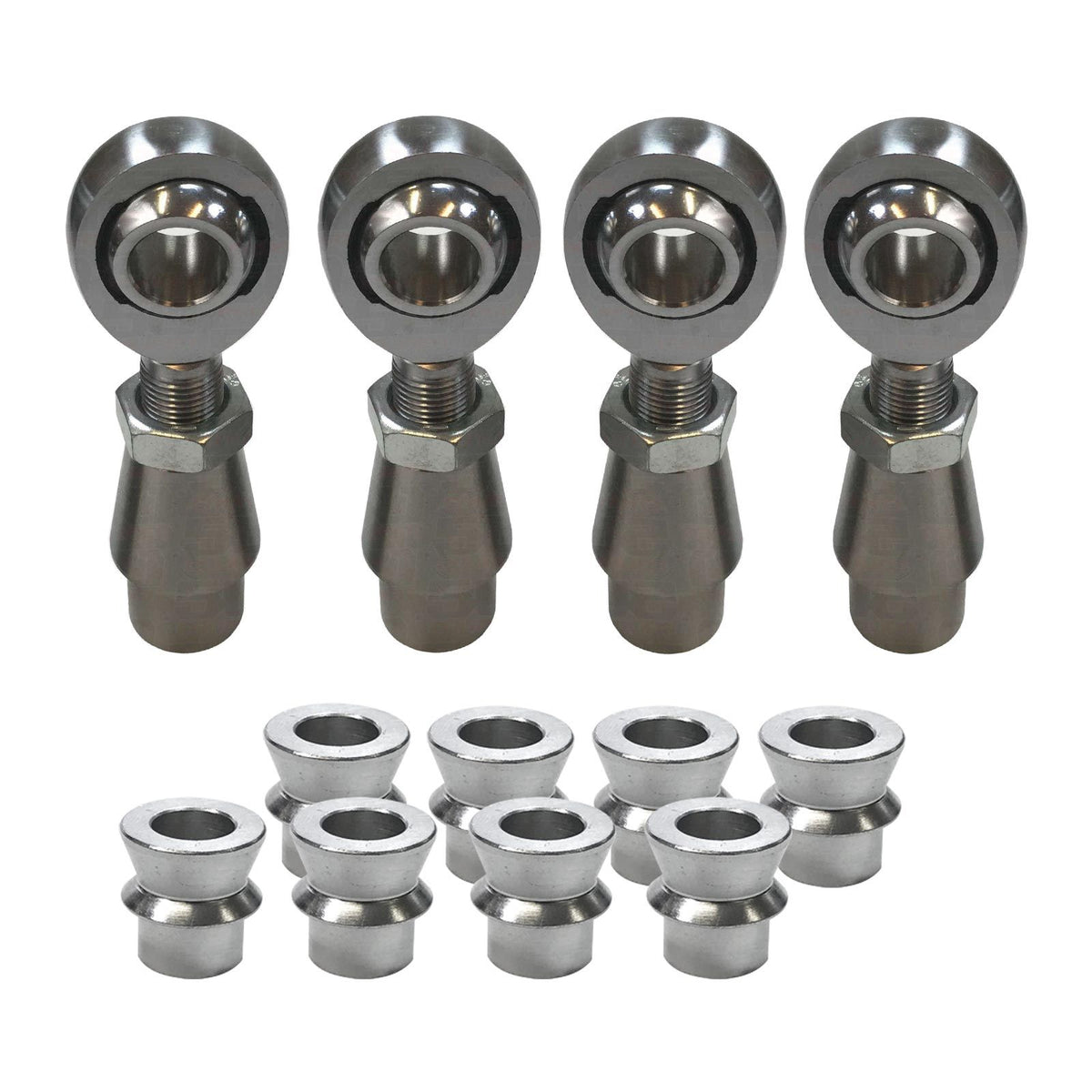

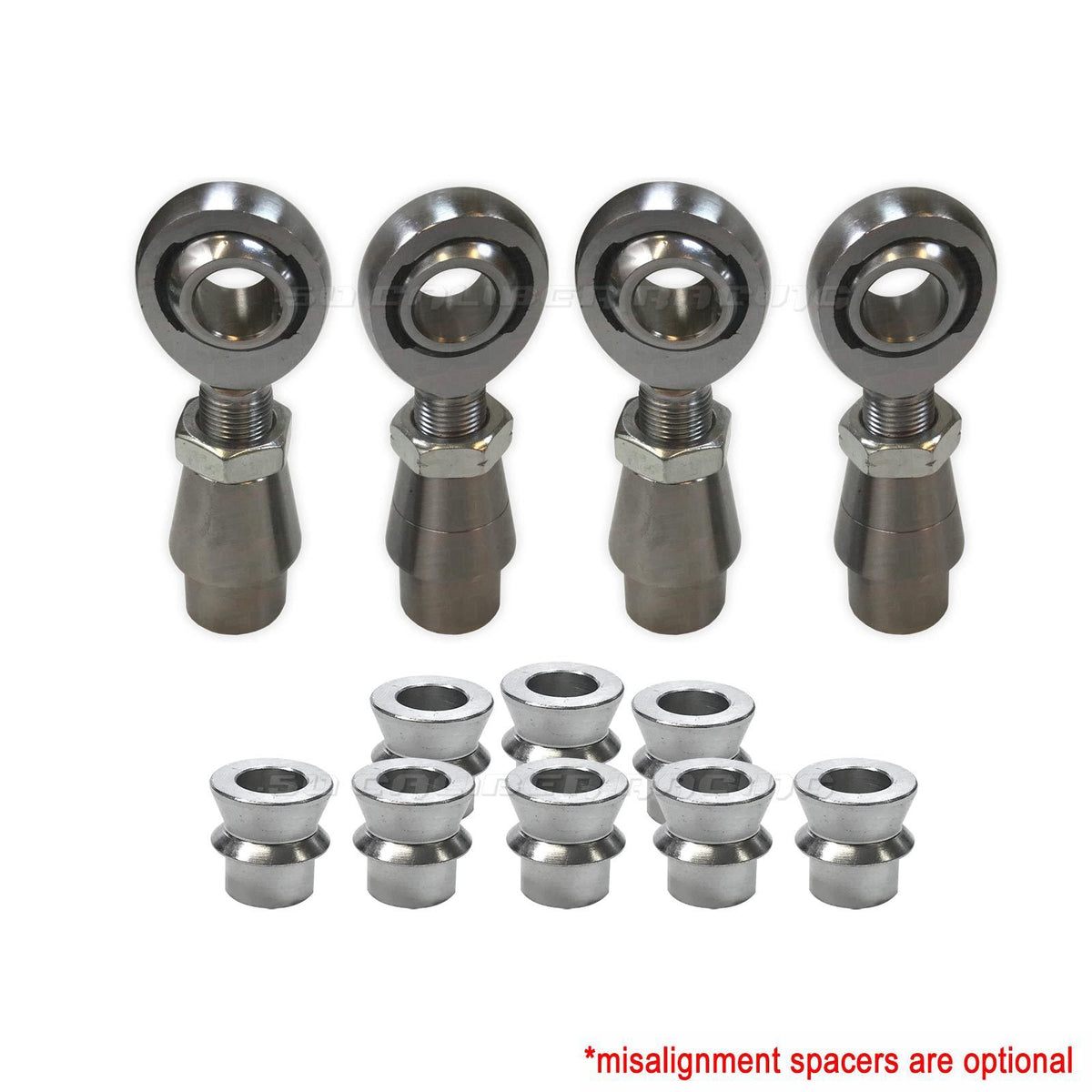

| 7/8" Sway Bar Link Rod End Kit - Shown with Optional Misalignment Spacers

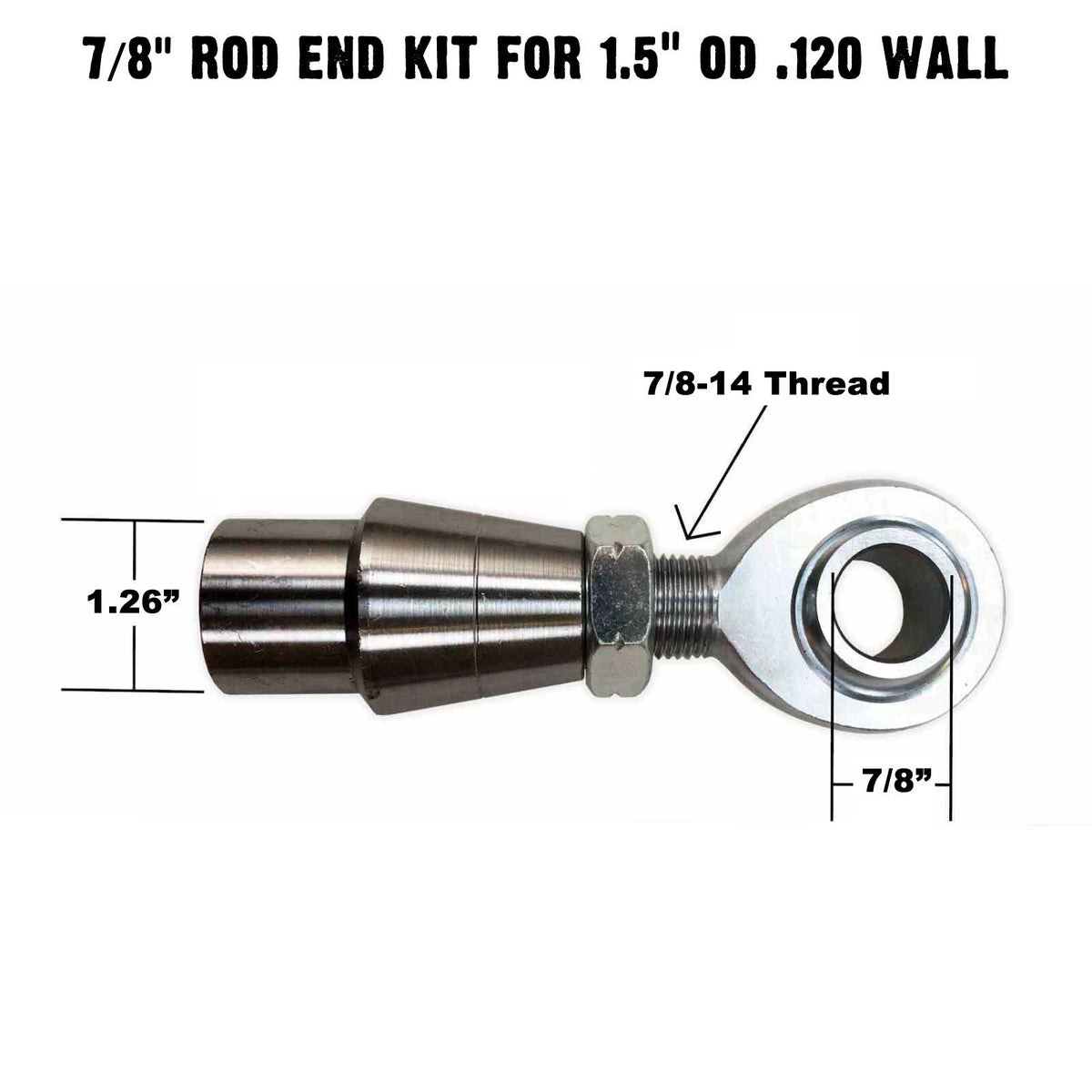

| 7/8-14 Sway Bar Link Rod End Kit - 1.5" OD .120 Wall Round Tubing - Dimensions
| 7/8-14 Sway Bar Link Rod End Kit - 1.5" OD .250 Wall Round Tubing - Dimensions
7/8 Chromoly Heim Joint Rod End Kit for 1.5" Tubing – Sway Bar Link | 7/8" Sway Bar Link Rod End Kit - Free can cooler included!

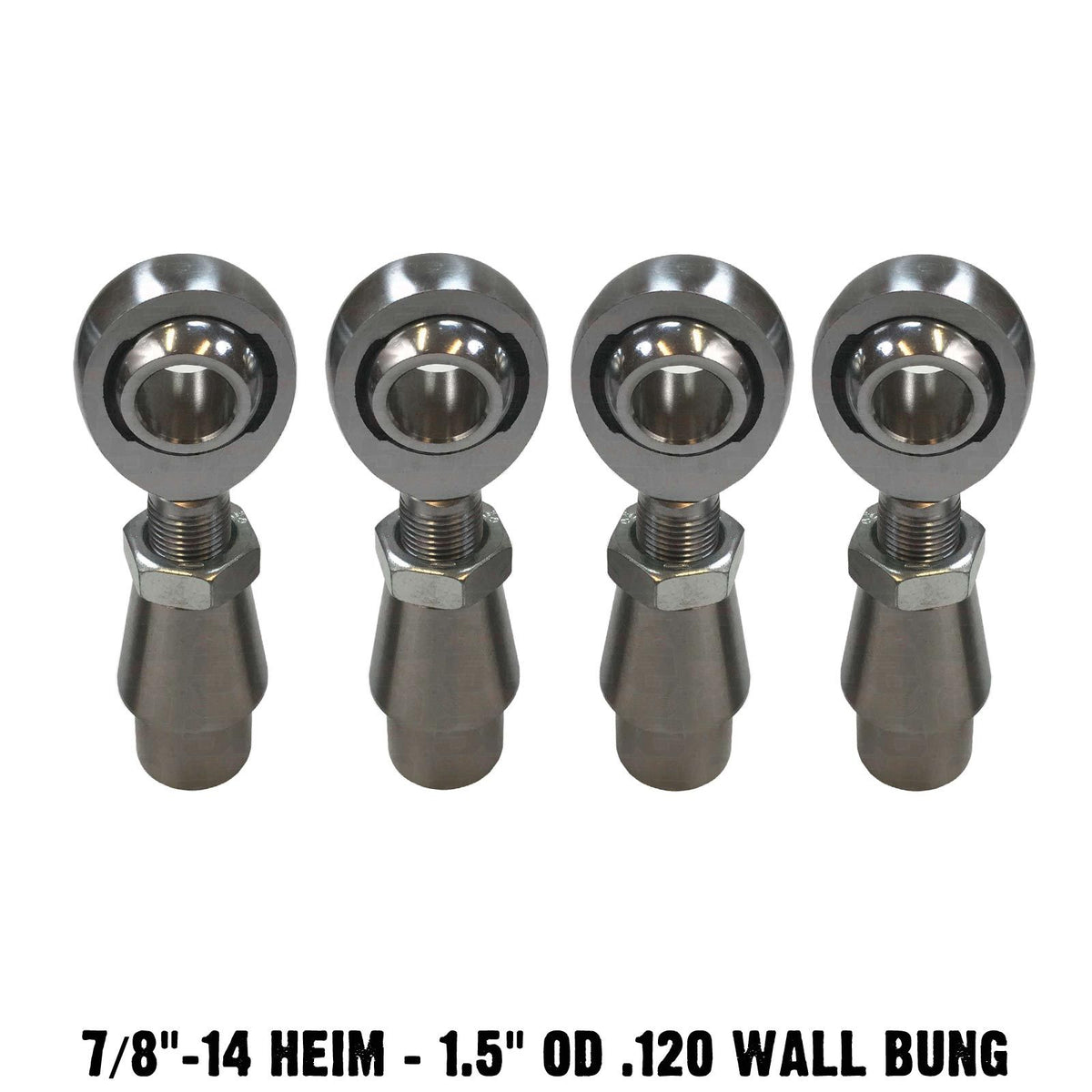

| 7/8-14 Sway Bar Link Rod End Kit - 1.5" OD .120 Wall Round Tubing - NO Spacers
| 7/8-14 Sway Bar Link Rod End Kit - 1.5" OD .120 Wall Round Tubing - WITH Spacers
| 7/8-14 Sway Bar Link Rod End Kit - 1.5" OD .250 Wall Round Tubing - NO Spacers

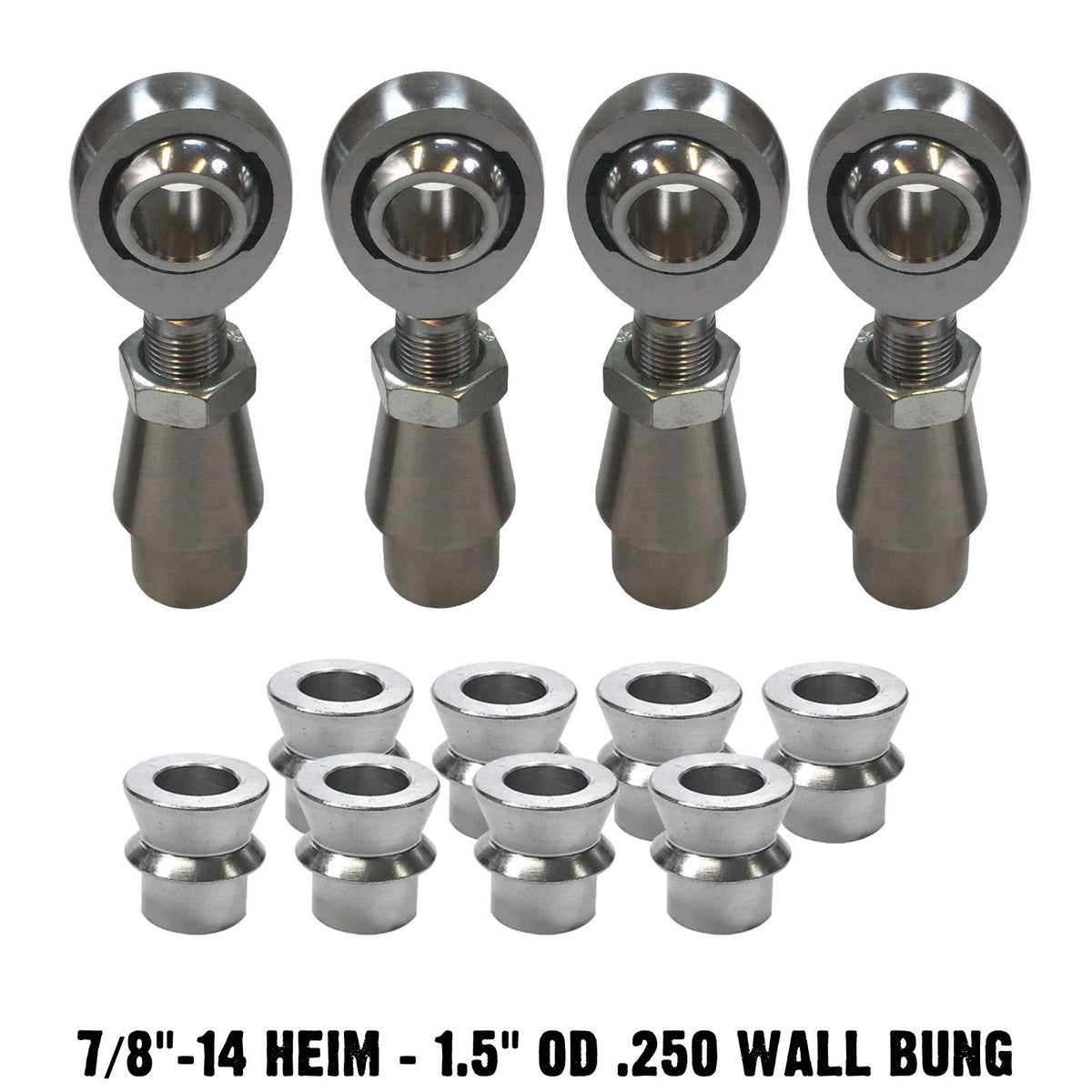

| 7/8-14 Sway Bar Link Rod End Kit - 1.5" OD .250 Wall Round Tubing - WITH Spacers

7/8 Chromoly Heim Joint Rod End Kit for 1.5" Tubing – Sway Bar Link

By 50 Caliber Racing
$127.00
SKU: 6101A39
Tubing Wall Thickness
Include High Misalignment Spacers
Rod End Kit Details
Heim joints4 (2 RH, 2 LH)
Jam nuts4 (2 RH, 2 LH)
Weld-in bungs4 (2 RH, 2 LH)
Heim7/8"-14 thread x 7/8" bore
Fits tubing1.5" OD, .120 or .250 wall
HMS spacersOptional
Material4130 chromoly, PTFE liner
Load rating45,051 lb static

Select tubing wall thickness and misalignment spacer options before ordering.

Looking for a Different Size?

1/2" heim for 1" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

5/8" heim for 1.25" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

3/4" heim for 1.5" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

3/4" heim for 1.75" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

7/8" heim for 1.5" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

7/8" heim for 1.75" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

Goes with

Heim JointsHeim JointsWeld BungsWeld BungsHMS SpacersHMS Spacers

See all rod end kits

Description

Sway bar link rod end fabrication kit complete with 7/8 x 7/8 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapters). Designed specifically for 1.5" OD tubing, with wall thickness of .120 or .250. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building custom sway bar links, tie rods and radius arms for Jeeps, buggies, rock crawlers, sand rails, trucks and more. Includes heim joints, jam nuts and bungs. Available with or without high misalignment spacers (HMS).

Specifications

Heim Joint:

  • 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
  • 52100 hardened bearing steel ball
  • Static radial load rating: 45,051 lb
  • Thread pitch: Male 7/8"-14
  • Thread length: 2.00"
  • Bore: 7/8"
  • Socket end diameter: 2.00"
  • Socket width: .765"
  • Ball width: .875"
  • Center line length: 3.375"

Bung:

  • Thread: Female 7/8"-14
  • Material: Chromoly Steel
  • Thread Length: Full length
  • Choose from 2 different tube sizes:
    • 1.5" OD x .120 Wall x 1.26" ID
    • 1.5" OD x .250 Wall x 1.00" ID

Misalignment Spacers (optional):

  • Material: Chromoly Steel
  • Surface finish: Zinc plated
  • .750" ID x .869" OD x .926" W
  • Compatible with 3/4" bolt size
  • Total assembled width with HMS spacers: 1.875"

What's Included

  • (2) 7/8-14 x 7/8" bore Heims - RH Thread
  • (2) 7/8-14 x 7/8" bore Heims - LH Thread
  • (2) RH Jam Nuts
  • (2) LH Jam Nuts
  • (2) RH Weld in Bungs (tubing adapter)
  • (2) LH Weld in Bungs (tubing adapter)
  • Optional: (8) Misalignment spacers

Applications

  • Sway bar end links
  • Drag link
  • Hi steer components
  • Radius rods
  • Panhard bar / Track bar
  • Tie rods
  • Control arms
  • 3 Link / 4 Link
  • Custom mounts

Perfect for fabricating custom suspension and steering links on your 4x4, rock crawler, sand rail, hot rod, Jeep and more!
