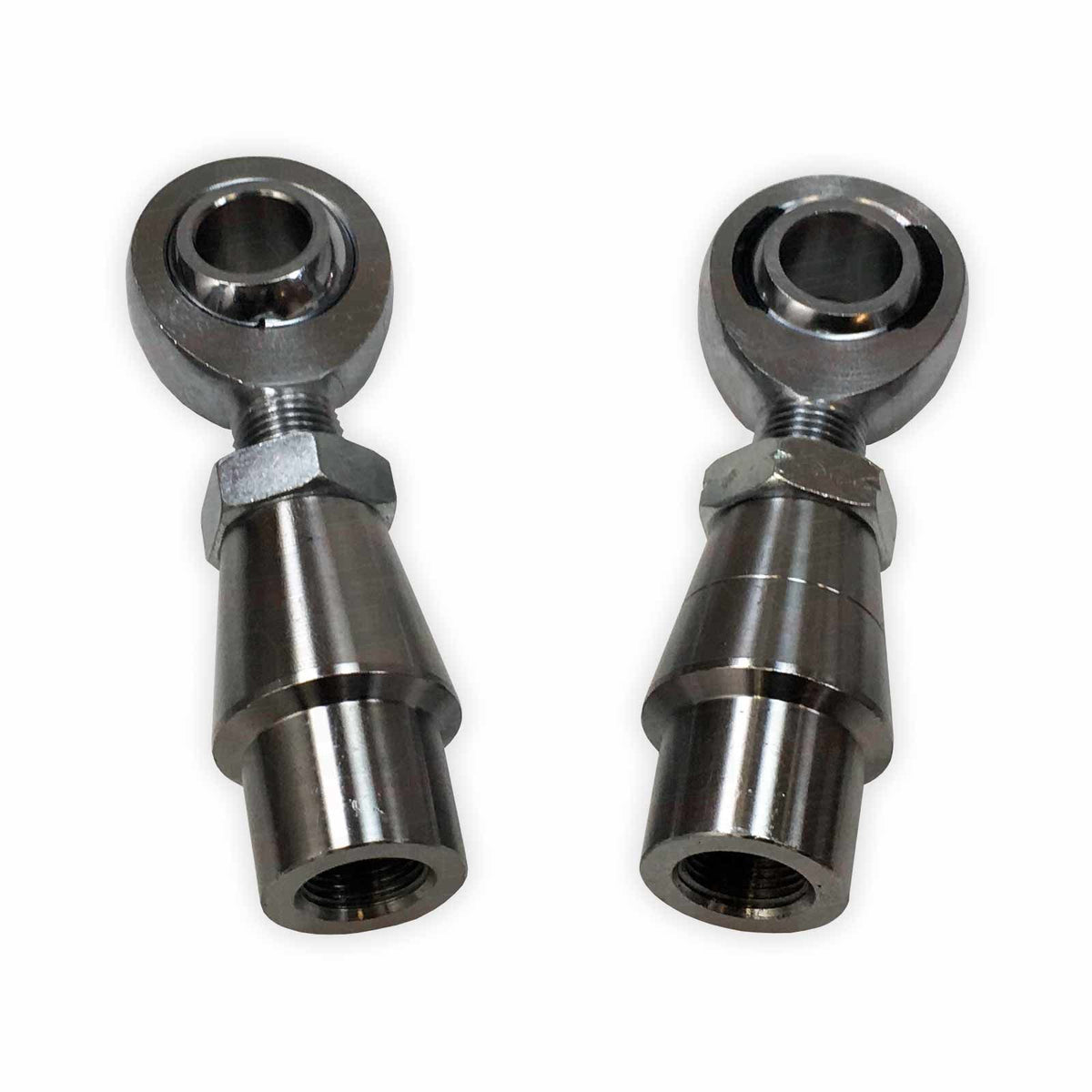

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar | 50 Caliber Racing Panhard Bar Fab Kit - Shown with optional high misalignment spacers

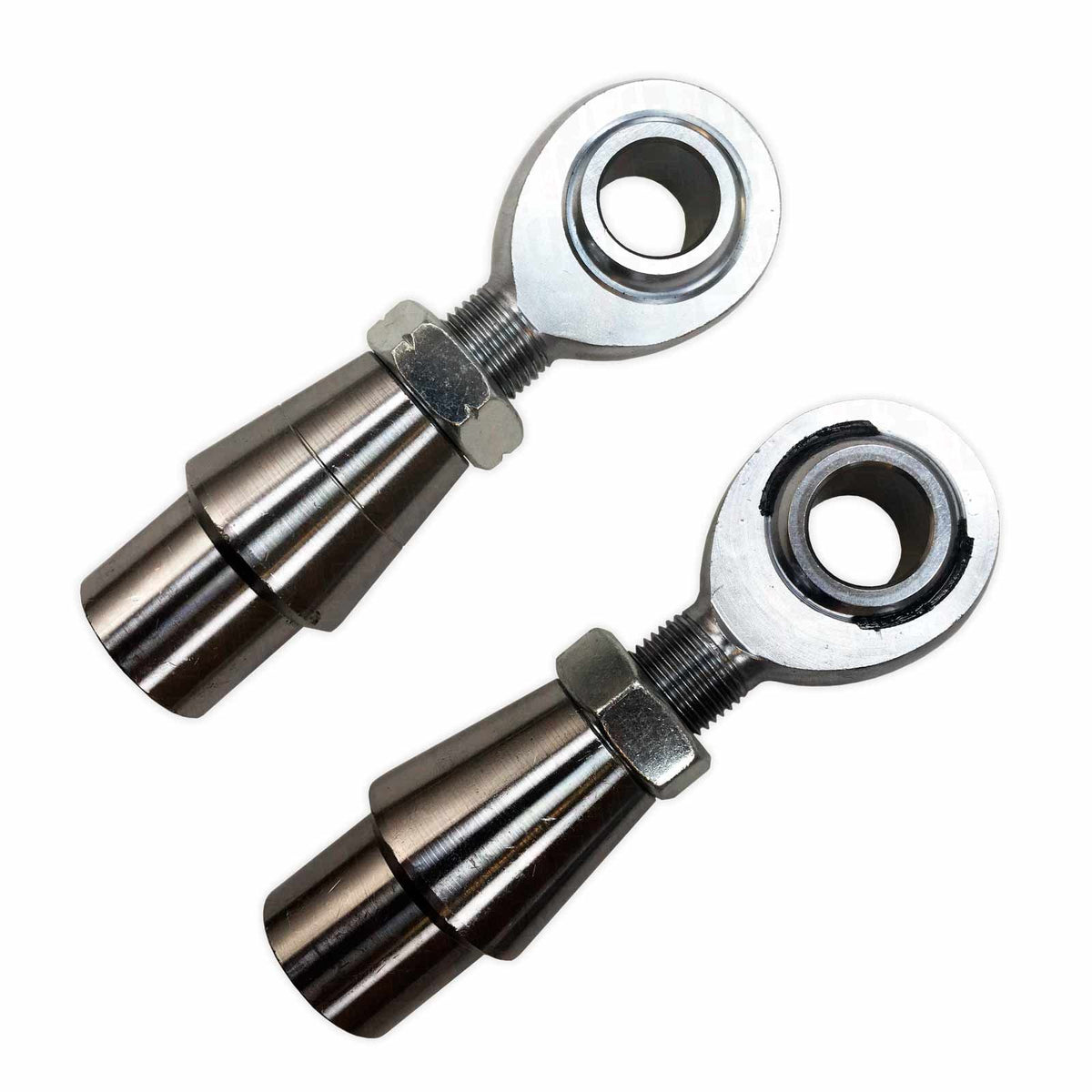

| 50 Caliber Racing Panhard Bar Fab Kit - 1/2-20 x 1/2" Bore Chromoly Heims & Bungs for 1" OD Tubing

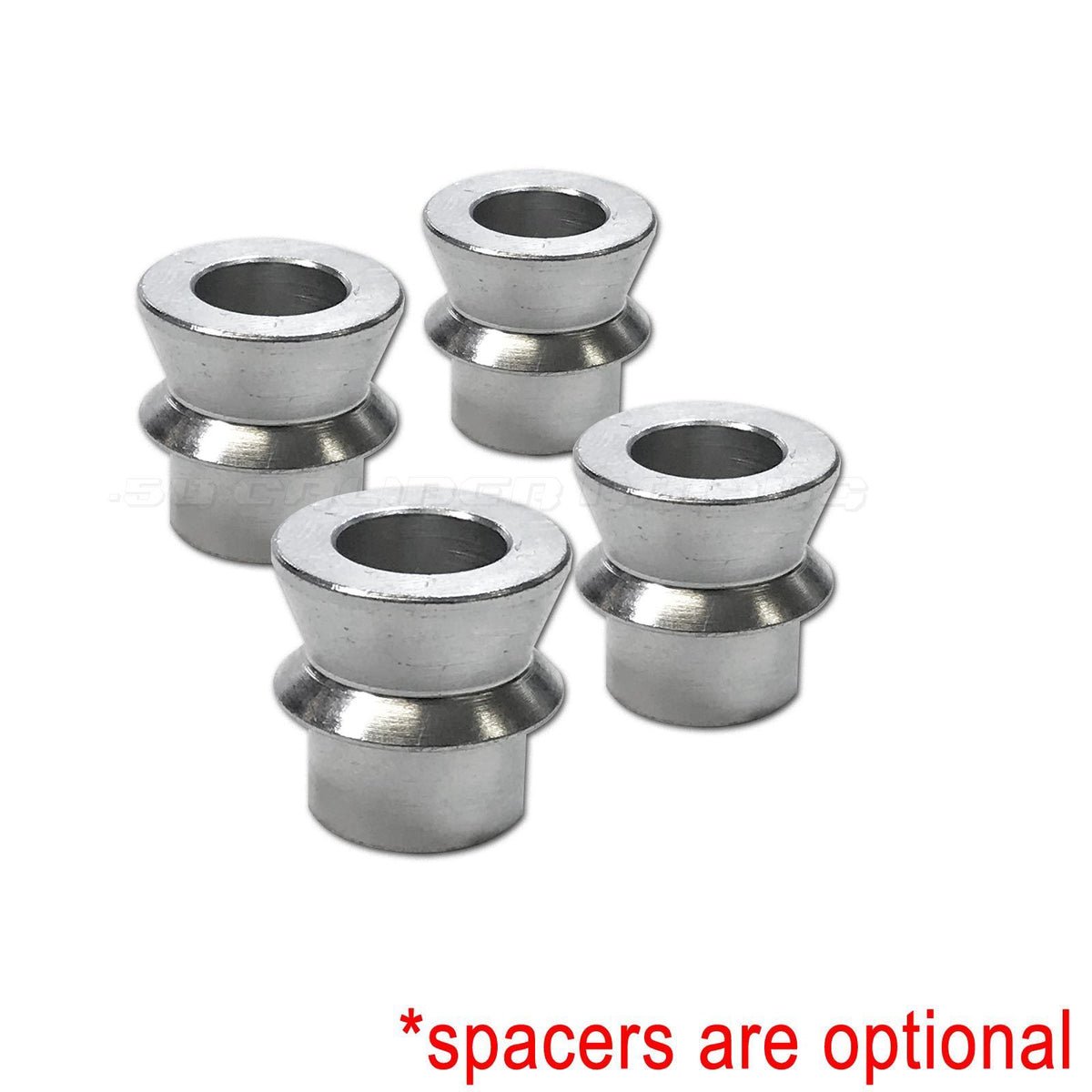

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar | 50 Caliber Racing Panhard Bar Fab Kit - 4130 Chromoly High Misalignment spacers with zinc plating

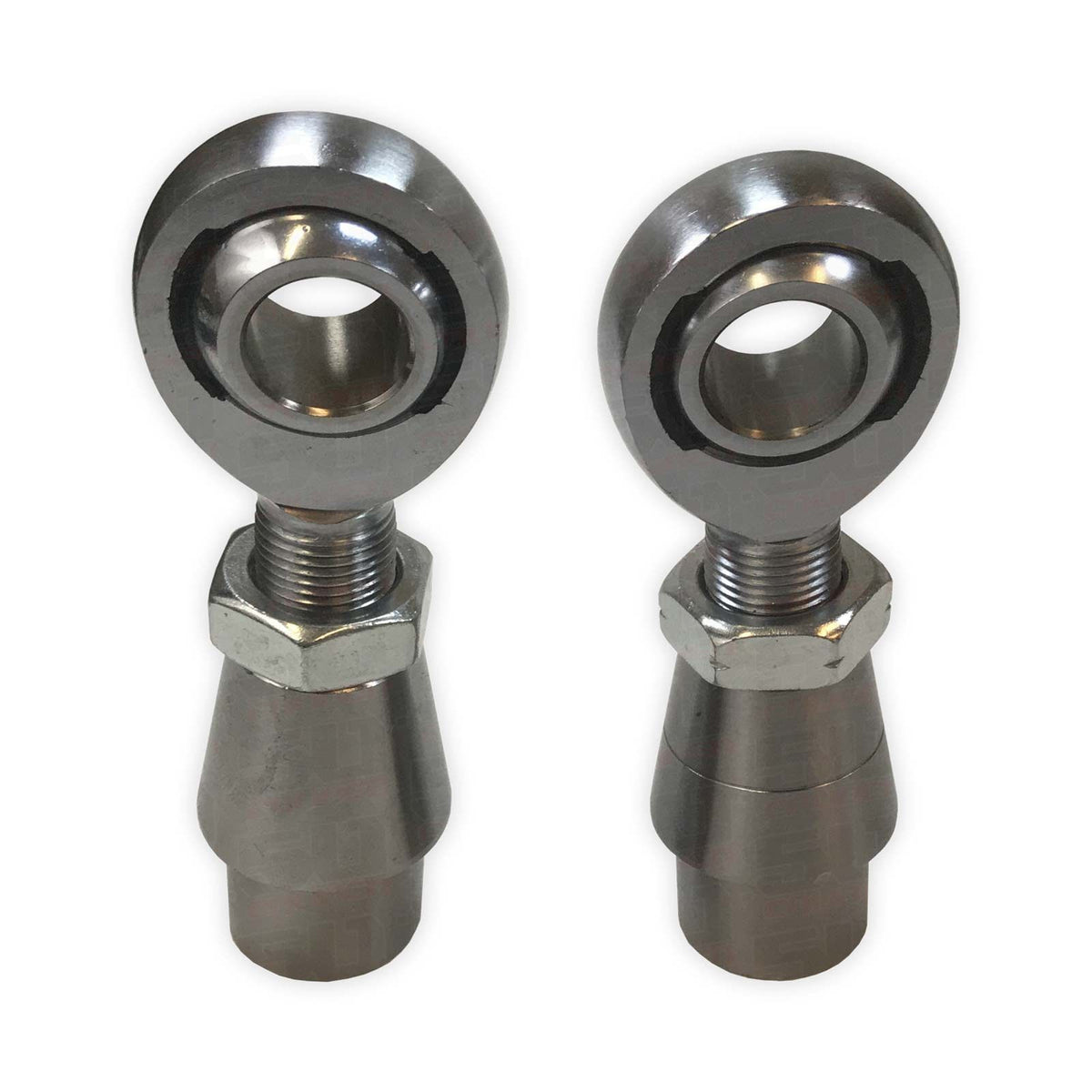

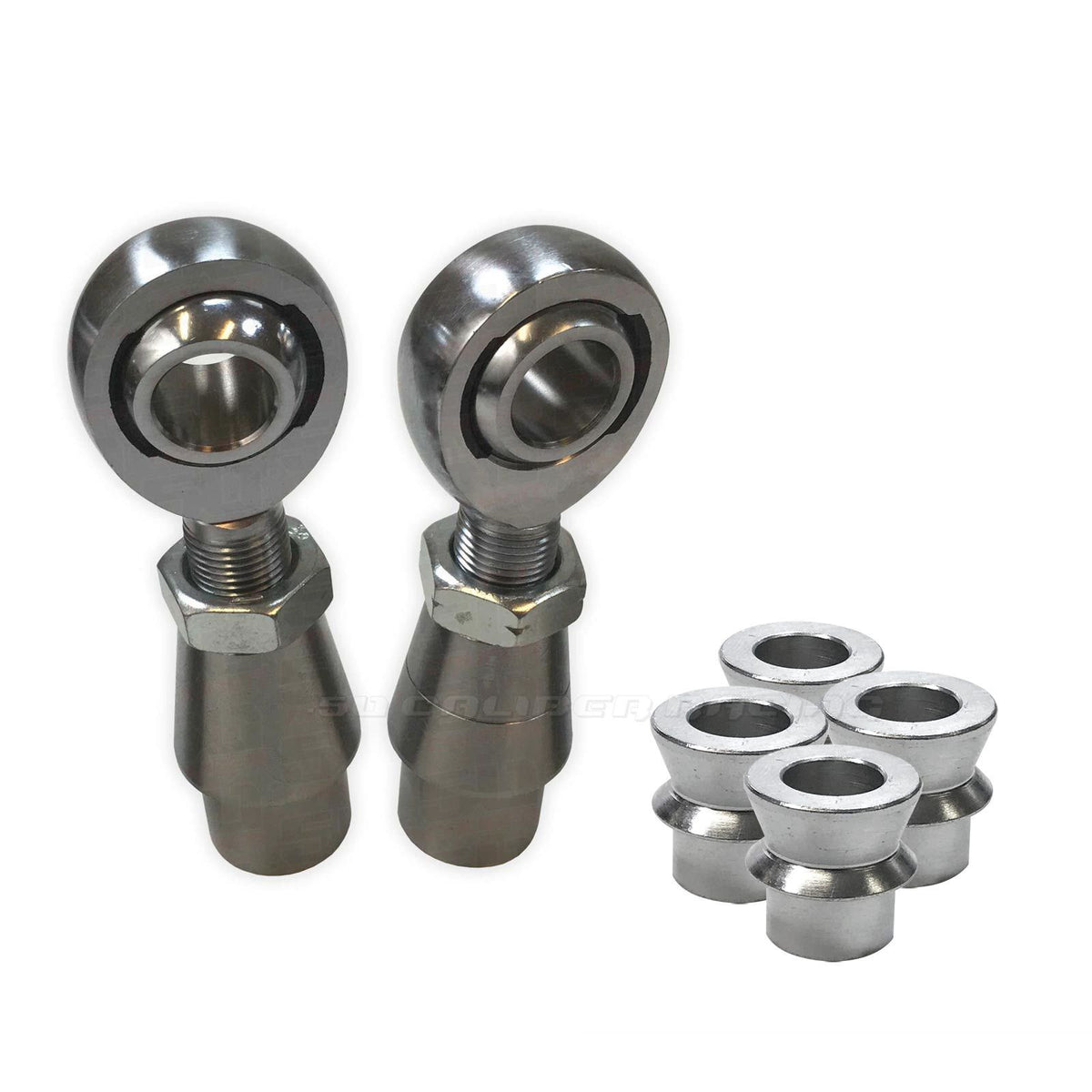

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar | 50 Caliber Racing Panhard Bar Fab Kit - 4130 Chromoly Heim Joints 1/2-20 x 1/2"

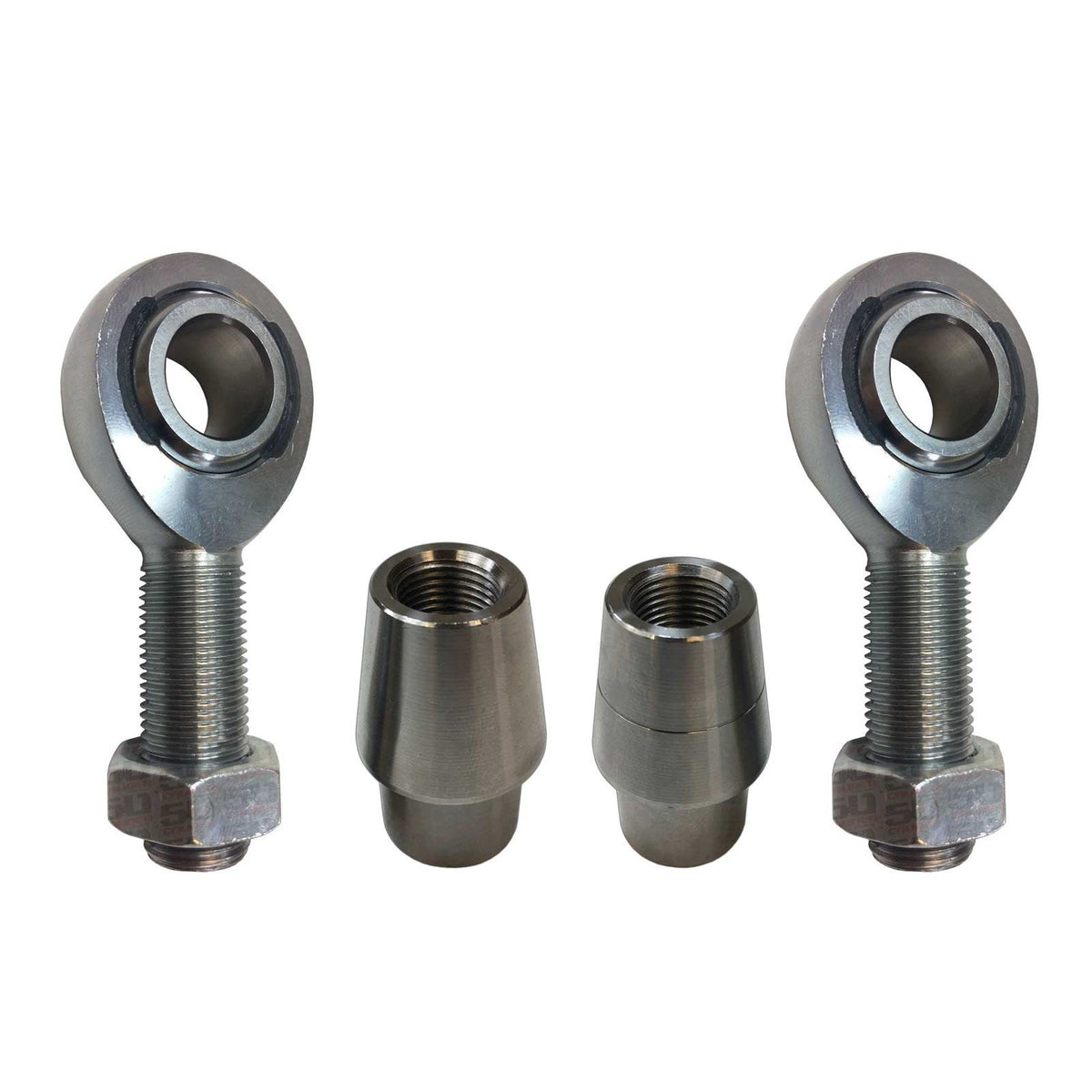

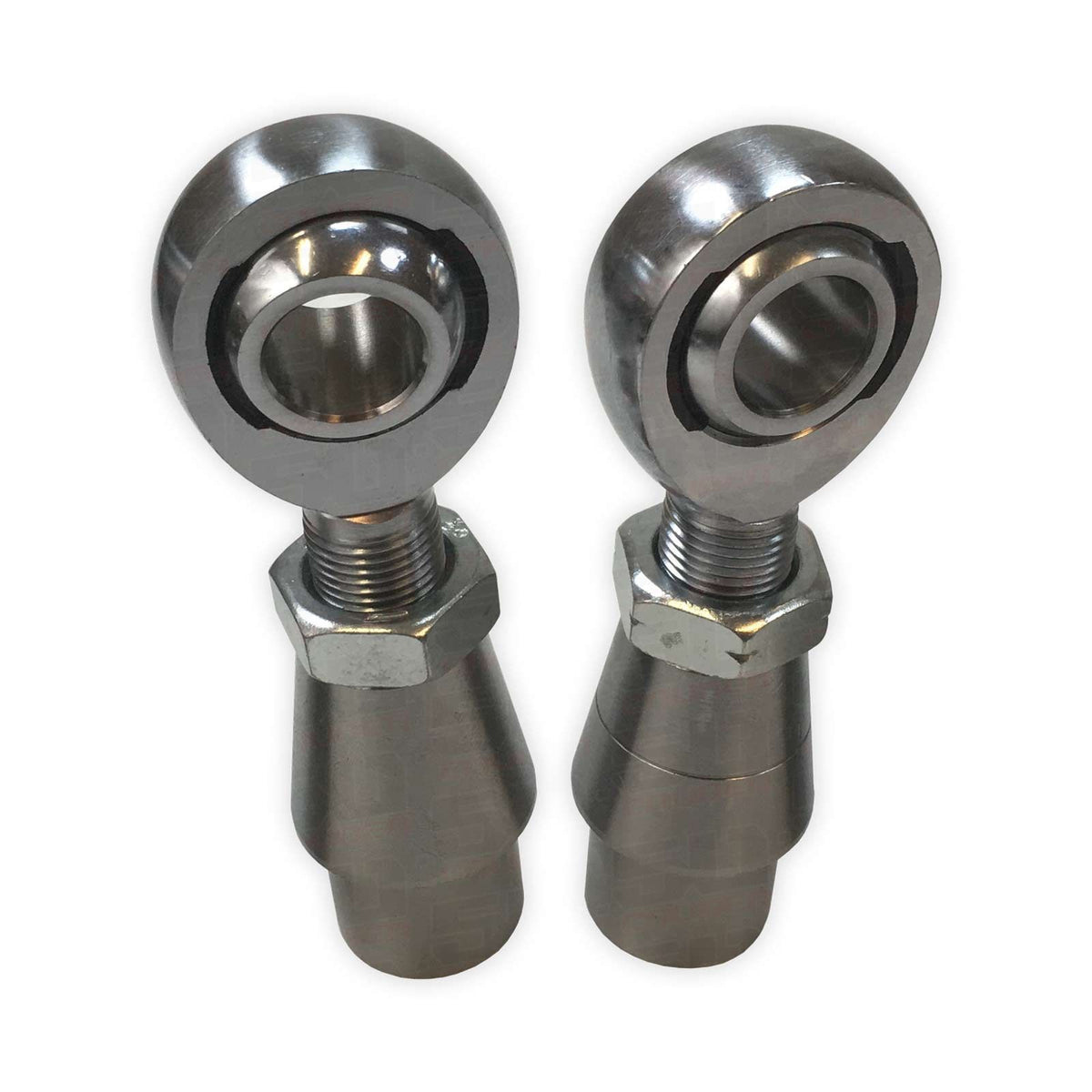

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar | 50 Caliber Racing Panhard Bar Fab Kit - Includes left and right heim joints with chromoly bungs

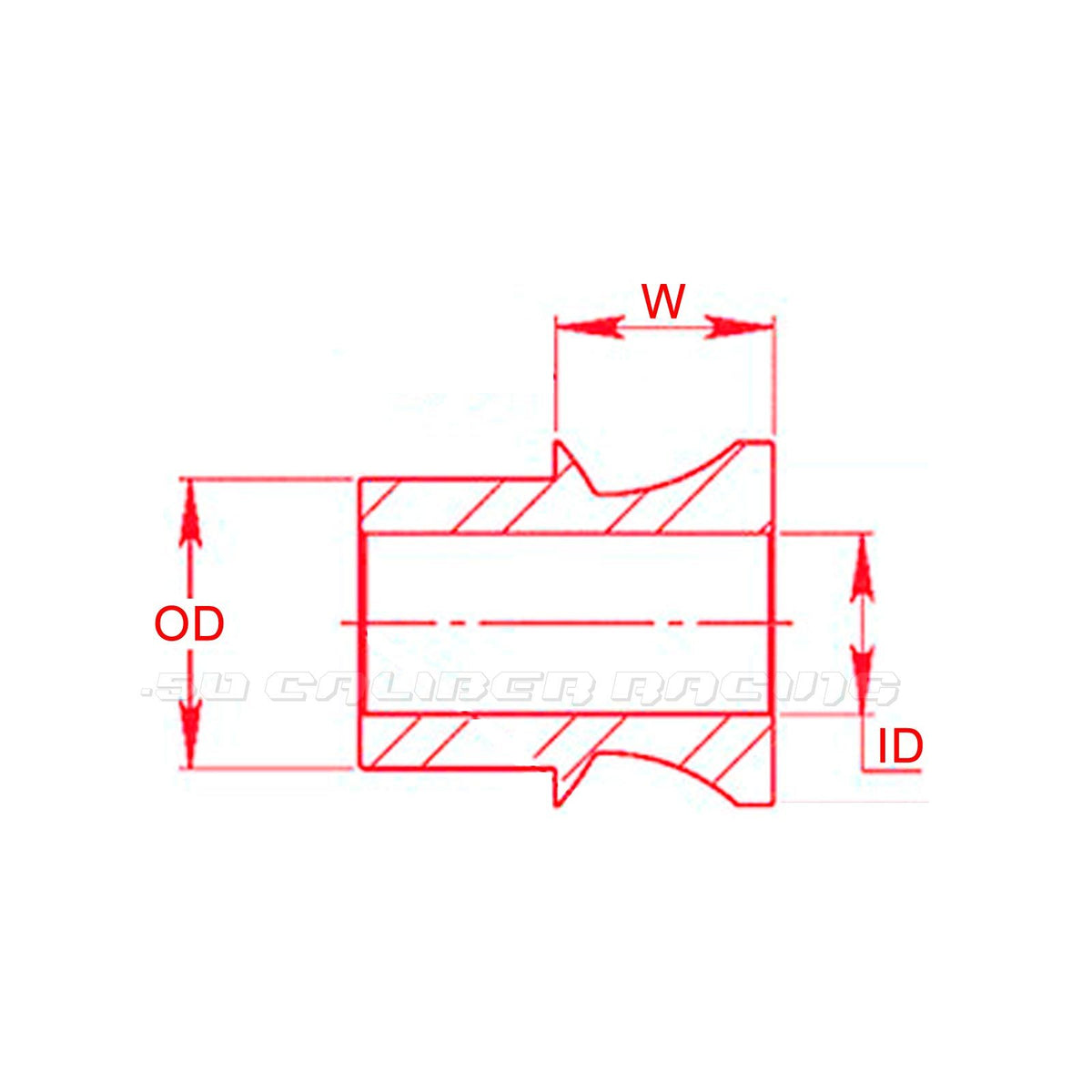

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar | 50 Caliber Racing Panhard Bar Fab Kit - Misalignment spacer diagram

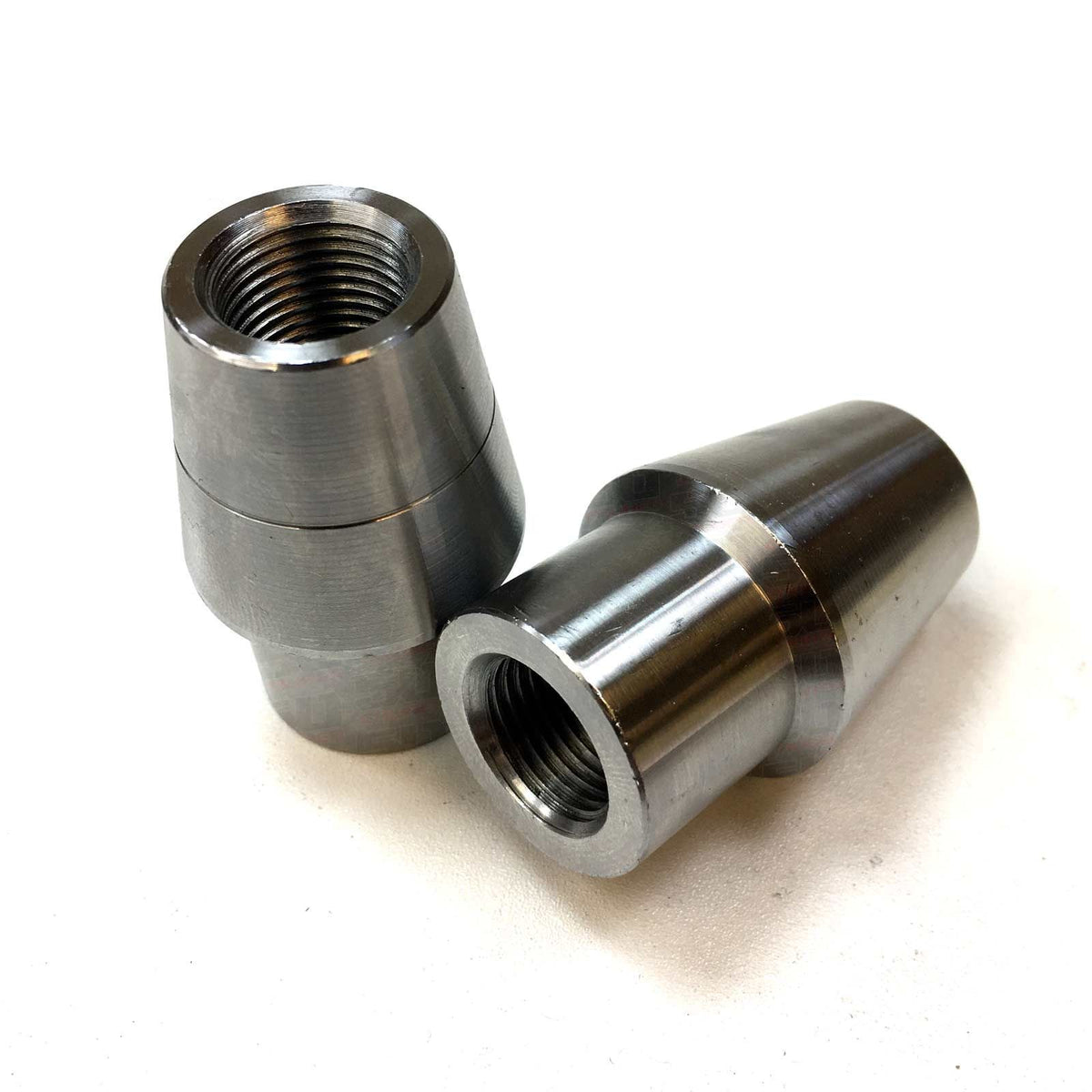

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar | 50 Caliber Racing Panhard Bar Fab Kit - Chromoly Weld In Tube Adapter Bungs

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar | 50 Caliber Racing Panhard Bar Fab Kit - Includes Chromoly Jam nuts and Bungs

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar | 50 Caliber Racing Panhard Bar Fab Kit - Free Can Koozie Included!

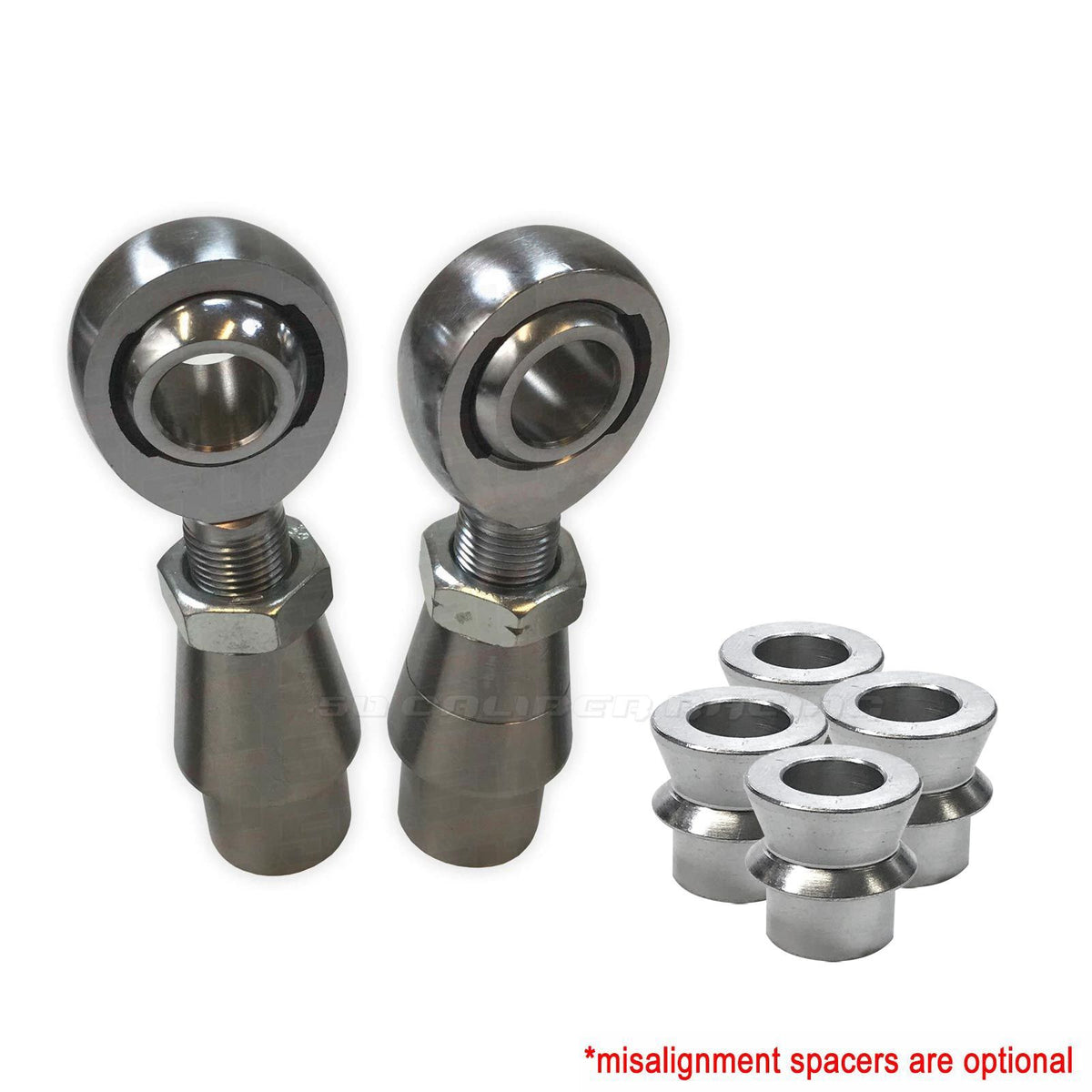

| 50 Caliber Racing Panhard Bar Fab Kit - Shown with optional high misalignment spacers

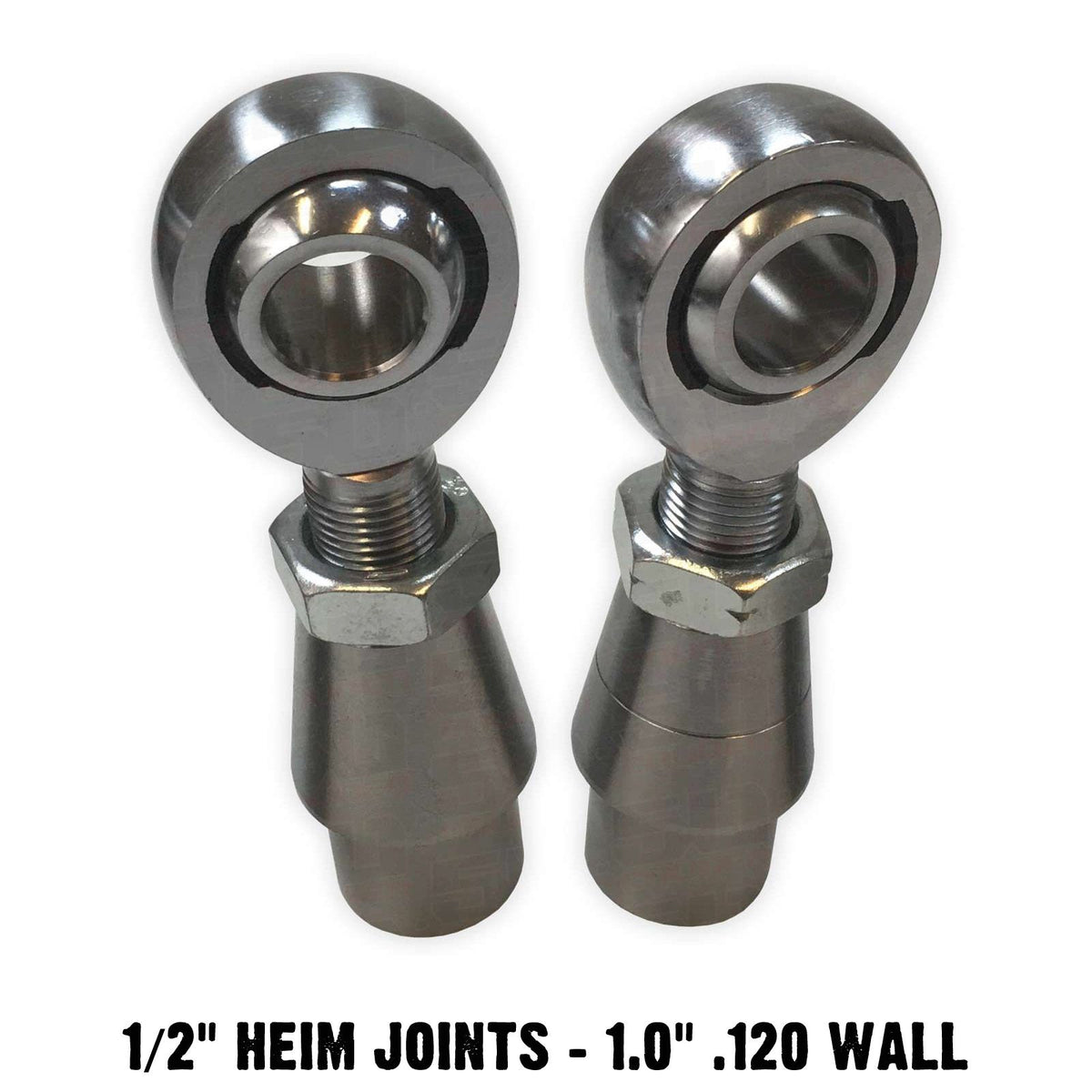

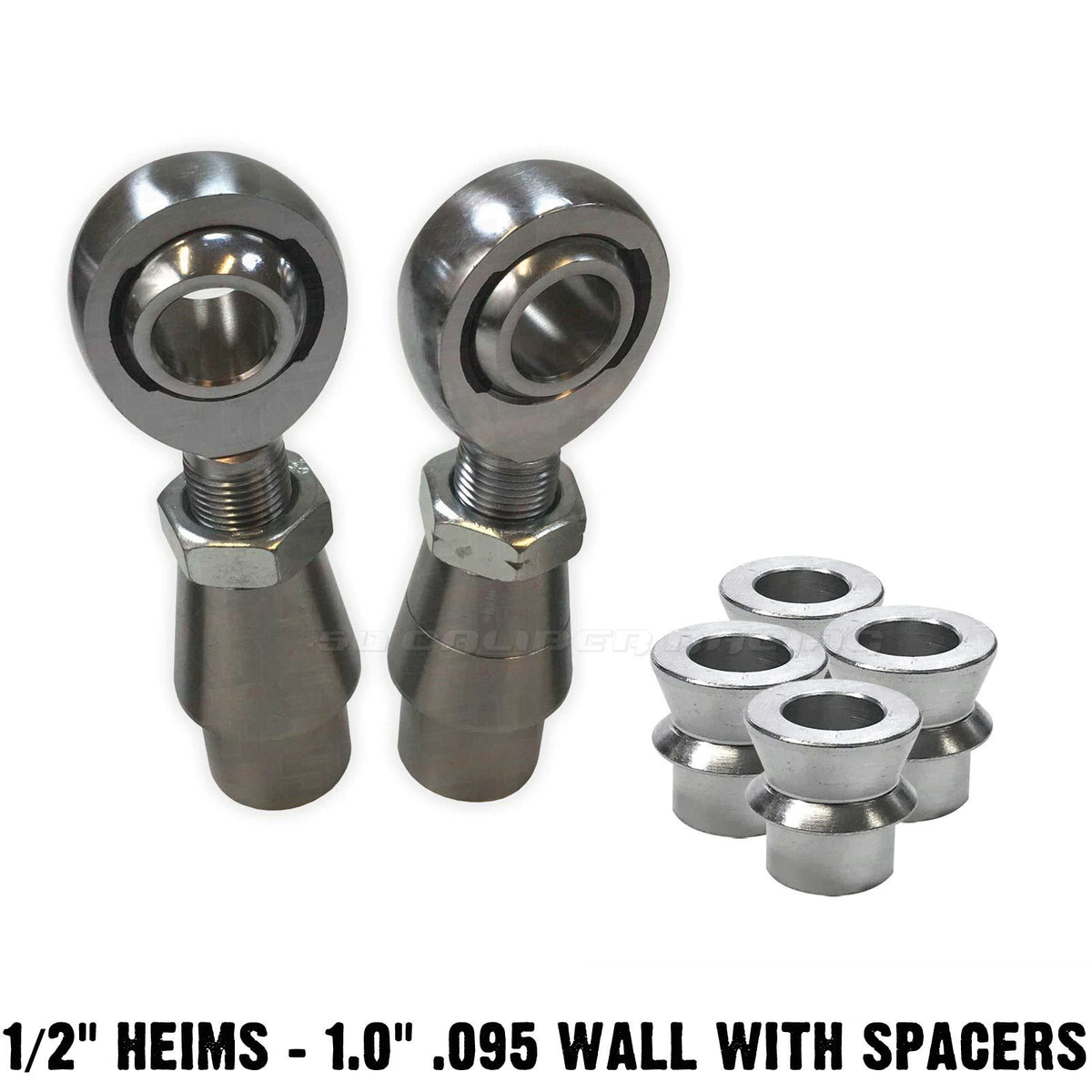

| Part Number 6101A3 - 1/2" Heim Joint, Bung for 1" .095 Wall - No Spacers

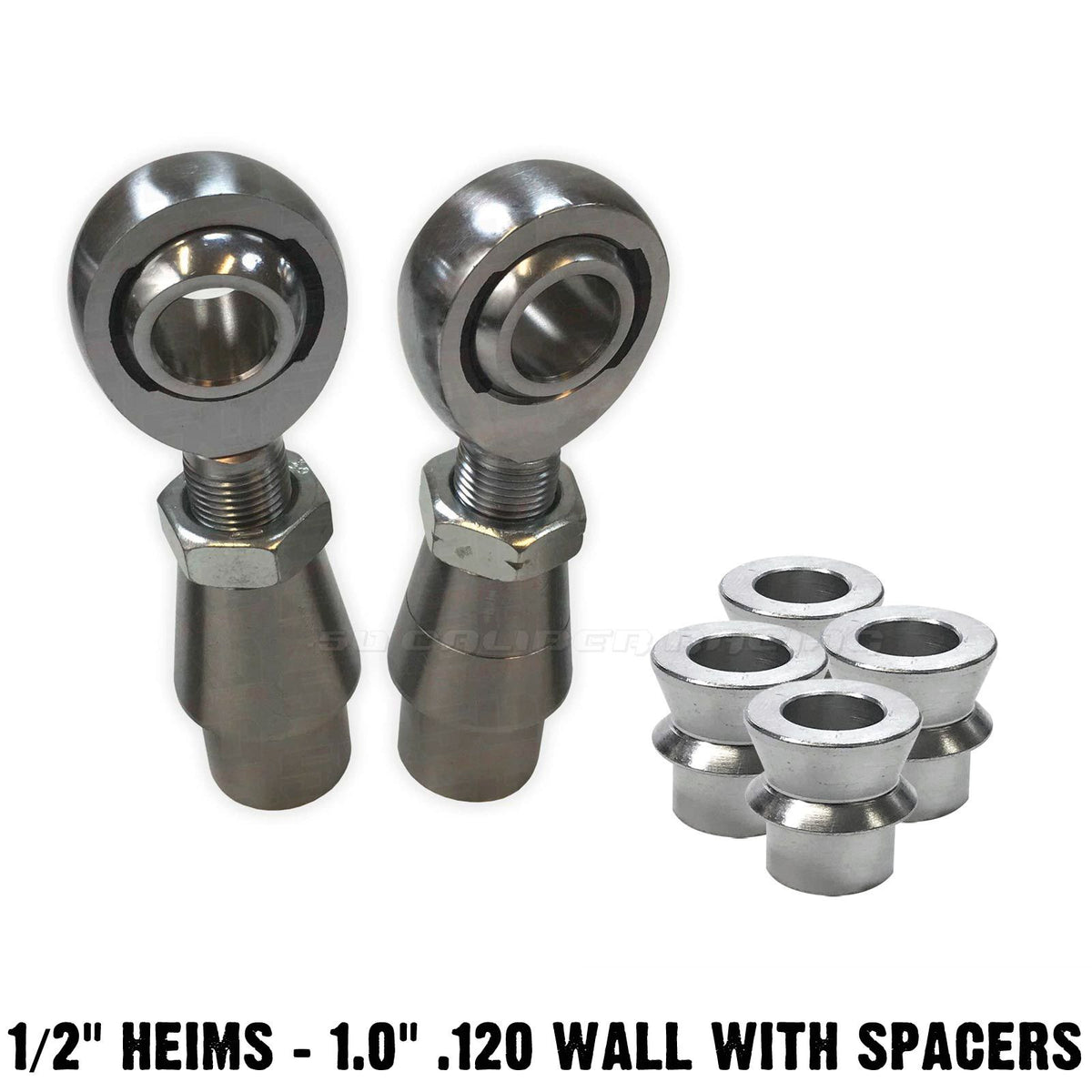

| Part Number 6101A8 - 1/2" Heim Joint, Bung for 1" .120 Wall - No Spacers

| Part Number 6101B3 - 1/2" Heim Joint, Bung for 1" .095 Wall - Spacers Included

| Part Number 6101B8 - 1/2" Heim Joint, Bung for 1" .120 Wall - Spacers Included

1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar

Name: 1/2 Chromoly Heim Joint Rod End Kit for 1" Tubing – Panhard Bar
Rating: 5.00 (12 reviews)

By 50 Caliber Racing

$40.00

SKU: 6101A3

Tubing Wall Thickness

.095 Wall .120 Wall

Include High Misalignment Spacers

No Yes

Rod End Kit Details
Heim joints	2 (1 RH, 1 LH)
Jam nuts	2 (1 RH, 1 LH)
Weld-in bungs	2 (1 RH, 1 LH)
Heim	1/2"-20 thread x 1/2" bore
Fits tubing	1" OD, .095 or .120 wall
HMS spacers	Optional
Material	4130 chromoly, PTFE liner
Load rating	16,238 lb static

Select tubing wall thickness and misalignment spacer options before ordering.

Looking for a Different Size?

1/2"5/8"3/4"7/8"

1/2" heim for 1" tubing

Single Joint1 joint Panhard Bar2 joints Sway Bar Link4 joints 4 Link8 joints

5/8" heim for 1.25" tubing

Single Joint1 joint Panhard Bar2 joints Sway Bar Link4 joints 4 Link8 joints

3/4" heim for 1.5" tubing

Single Joint1 joint Panhard Bar2 joints Sway Bar Link4 joints 4 Link8 joints

3/4" heim for 1.75" tubing

Single Joint1 joint Panhard Bar2 joints Sway Bar Link4 joints 4 Link8 joints

7/8" heim for 1.5" tubing

Single Joint1 joint Panhard Bar2 joints Sway Bar Link4 joints 4 Link8 joints

7/8" heim for 1.75" tubing

Single Joint1 joint Panhard Bar2 joints Sway Bar Link4 joints 4 Link8 joints

Goes with

Description

Panhard bar rod end fabrication kit complete with 1/2 x 1/2 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapters). Designed specifically for 1" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building a custom panhard bar (trackbar), tie rods and radius arms for go karts, ATVs, UTVs, cars and more. Includes heim joints, jam nuts and bungs. Available with or without high misalignment spacers (HMS).

Specifications

Heim Joint:

4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
Static radial load rating: 16,238 lb
Thread pitch: Male 1/2"-20
Bore: 1/2"
Ball end diameter: 1.312"
Socket width: .500"
Ball width: .625"
Center line length: 2.438"

Bung:

Thread: Female 1/2"-20
Material: Chromoly Steel
Thread Length: Full length
Choose from 2 different tube sizes:
- 1" OD x .095 Wall x 0.81" ID
- 1" OD x .120 Wall x 0.76" ID

Misalignment Spacers (optional):

Material: Chromoly Steel
Surface finish: Zinc plated
.375" ID x .499" OD x .617" W
Compatible with 3/8" bolt size
Total assembled width with HMS spacers: 1.375"

What's Included

(1) 1/2-20 x 1/2 Heim Joints - RH Thread
(1) 1/2-20 x 1/2 Heim - LH Thread
(1) RH Jam Nut
(1) LH Jam Nut
(1) RH Weld in Bung (tubing adapter)
(1) LH Weld in Bung (tubing adapter)
Optional: (4) Misalignment spacers

Applications

Panhard bar / Trackbar
Drag link
Hi steer components
Radius rods
Sway bar links
Tie rods
Control arms
4 Link setups
Custom Mounts

Perfect for fabricating custom suspension and steering links on your 4x4, sand rail, hot rod, race car, utv and more!
