5/8 Chromoly Heim Joint Kit – 1.25 OD Tubing

By 50 Caliber Racing
$23.00
SKU: 6101A12
Tubing Wall Thickness
Thread direction
Include High Misalignment Spacers
Rod End Kit Details
IncludesHeim joint, jam nut, bung
Heim5/8"-18 thread x 5/8" bore
Thread directionRH or LH
Fits tubing1.25" OD, .095 or .120 wall
HMS spacersOptional
Material4130 chromoly, PTFE liner
Load rating17,955 lb static

Select tubing wall thickness, thread direction and spacer options before ordering.

Looking for a Different Size?

1/2" heim for 1" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

5/8" heim for 1.25" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

3/4" heim for 1.5" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

3/4" heim for 1.75" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

7/8" heim for 1.5" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

7/8" heim for 1.75" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

Goes with

Heim JointsHeim JointsWeld BungsWeld BungsHMS SpacersHMS Spacers

See all rod end kits

Description

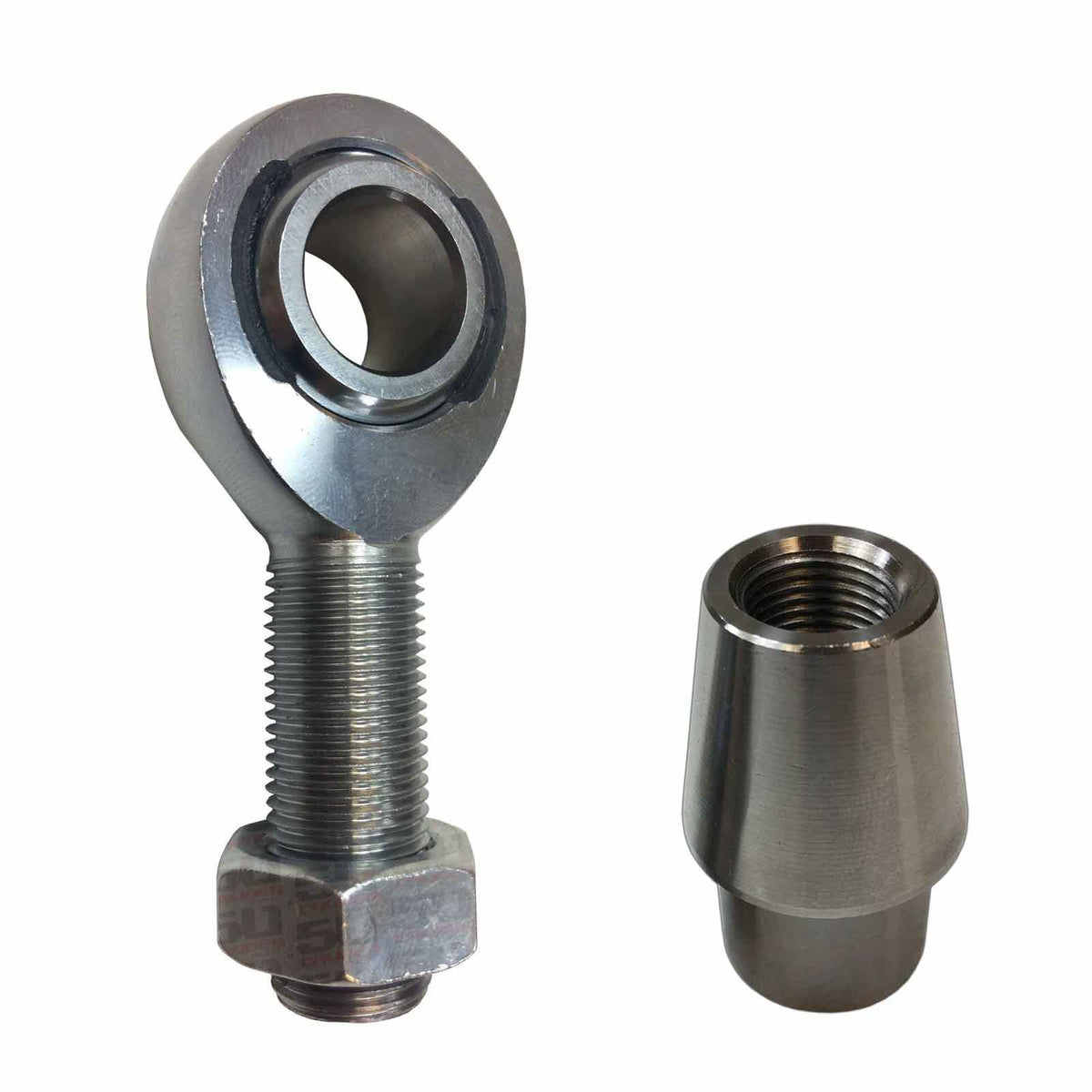

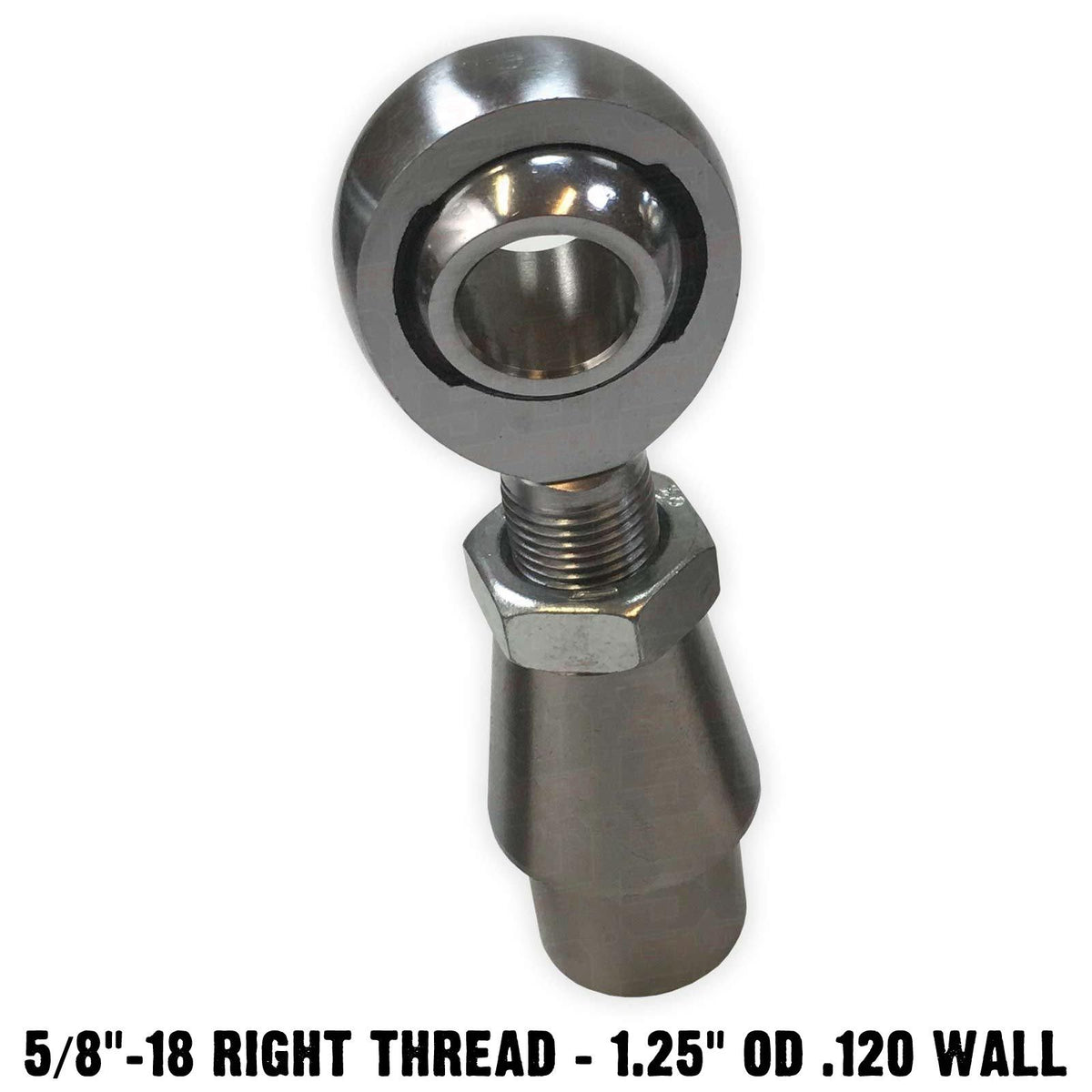

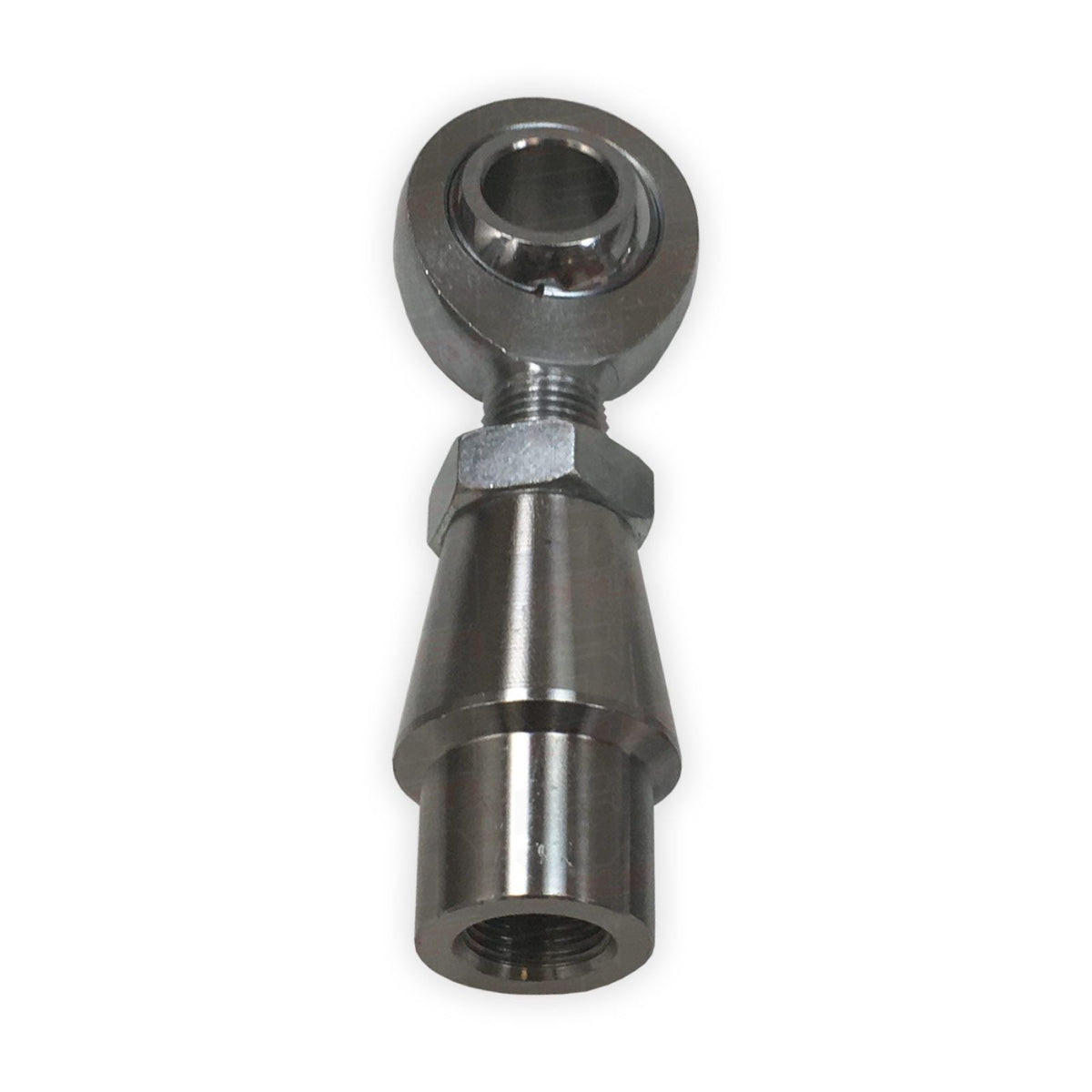

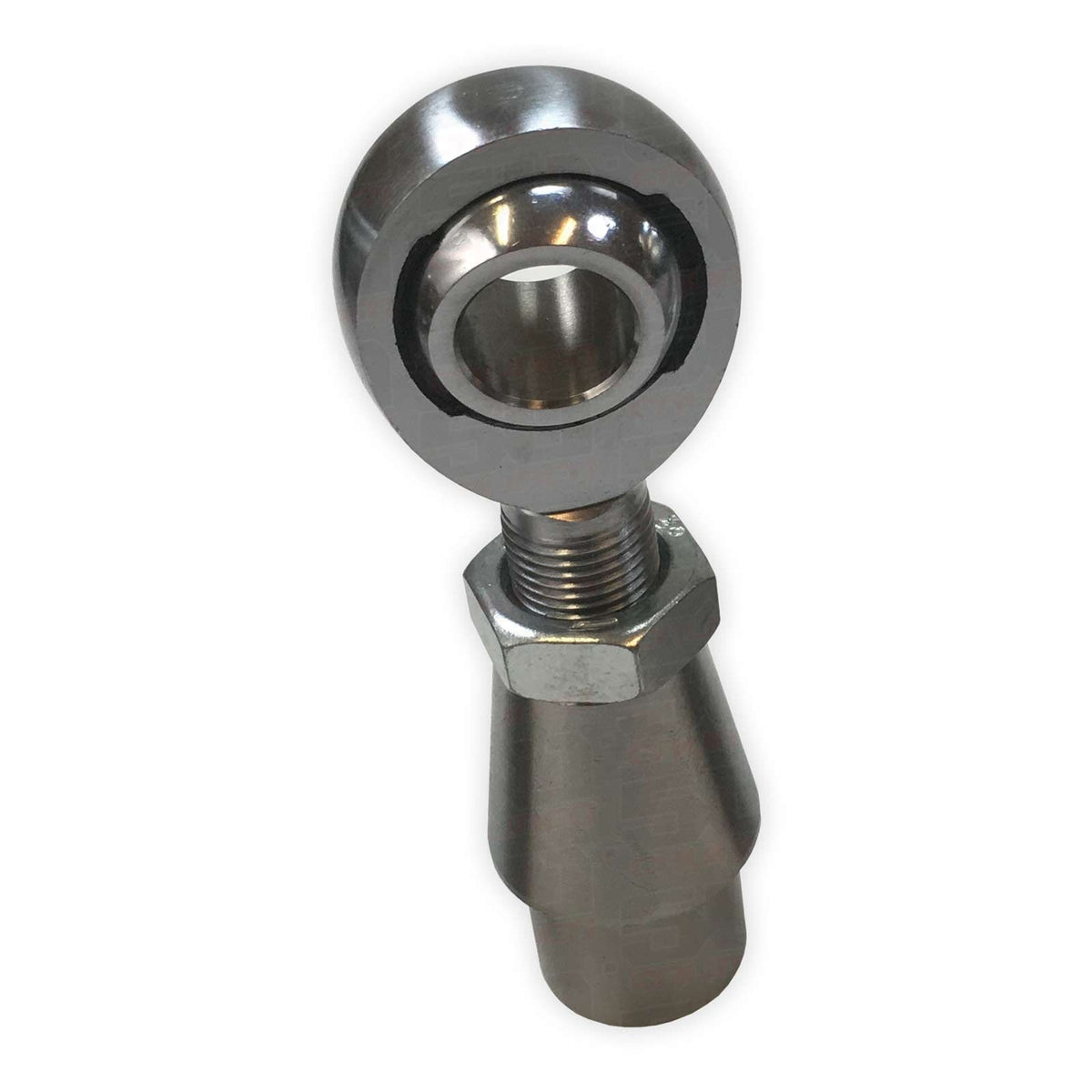

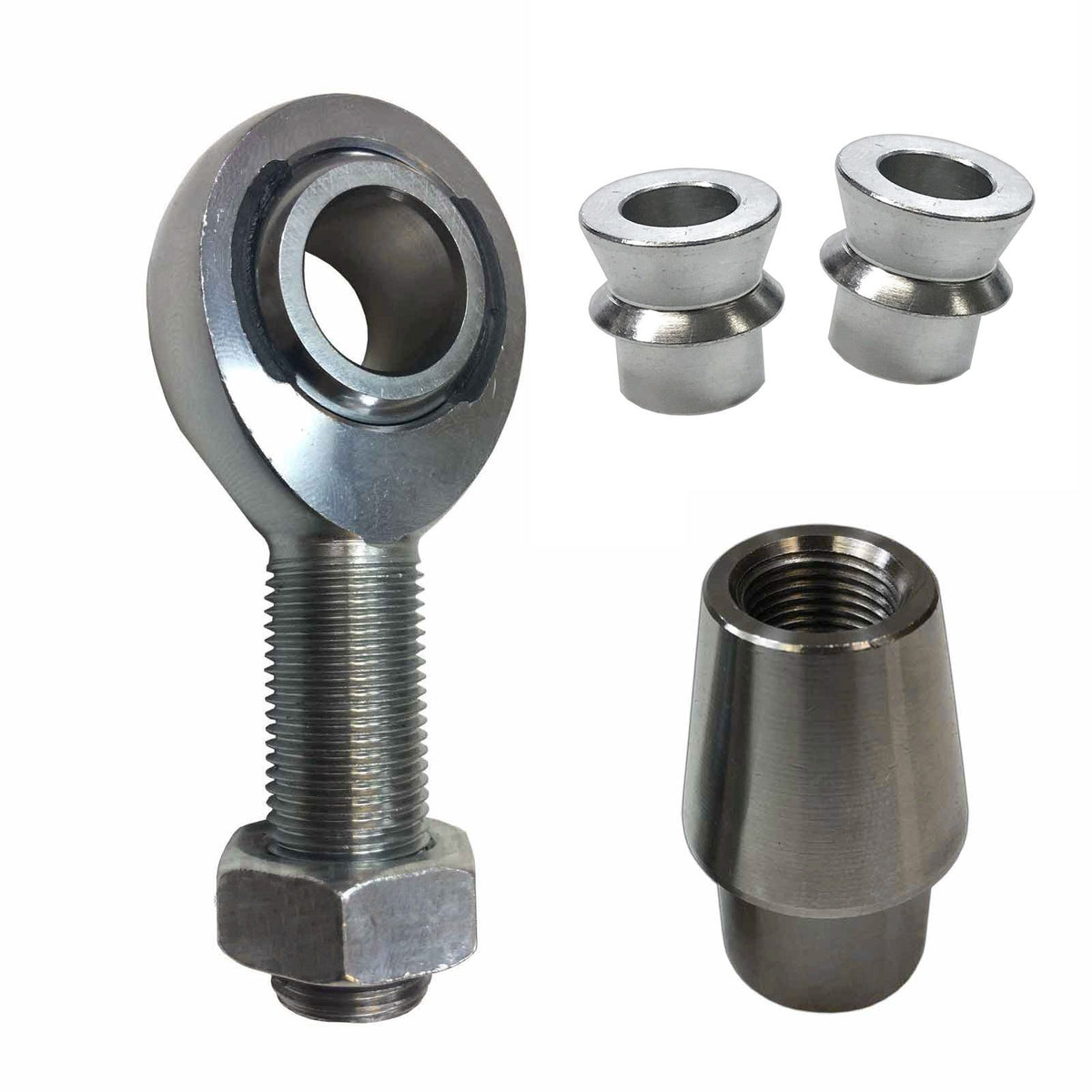

Single joint rod end kit complete with a 5/8 x 5/8 heat treated chromoly heim joint, jam nut, and weld in bung (tube adapter). Designed specifically for 1.25" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building custom steering and suspension links for UTVs, ATVs and more. Includes one heim joint, jam nut and bung. Available with or without high misalignment spacers (HMS).

Specifications

Heim Joint:

  • 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
  • Static radial load rating: 17,955 lb
  • Thread pitch: Male 5/8"-18
  • Bore: 5/8"
  • Ball end diameter: 1.5"
  • Socket width: .562"
  • Ball width: .75"
  • Overall length: 3.37"
  • Center line length: 2.63"

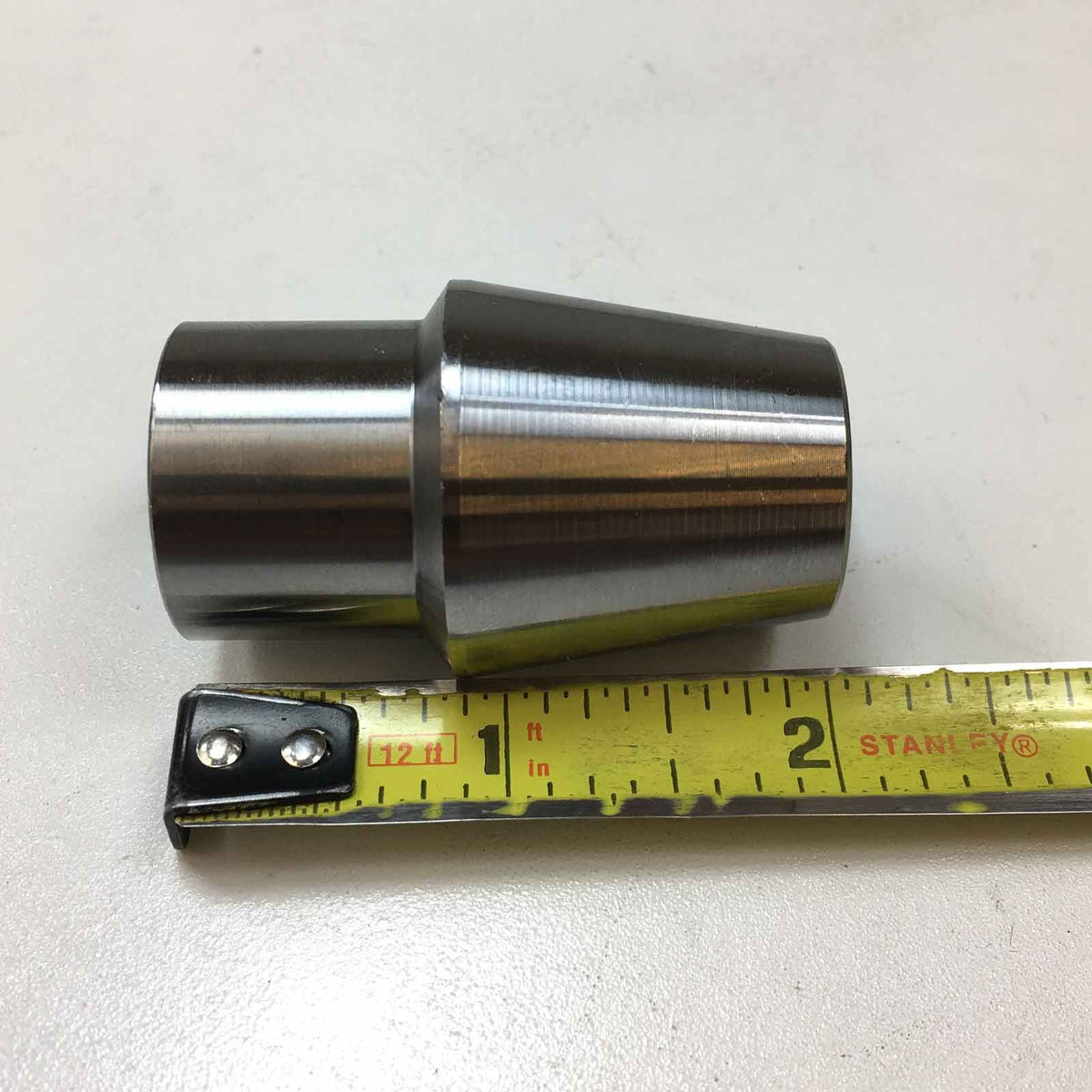

Bung:

  • Thread: Female 5/8"-18
  • Material: Chromoly Steel
  • Thread Length: Full length
  • Choose from 2 different tube sizes:

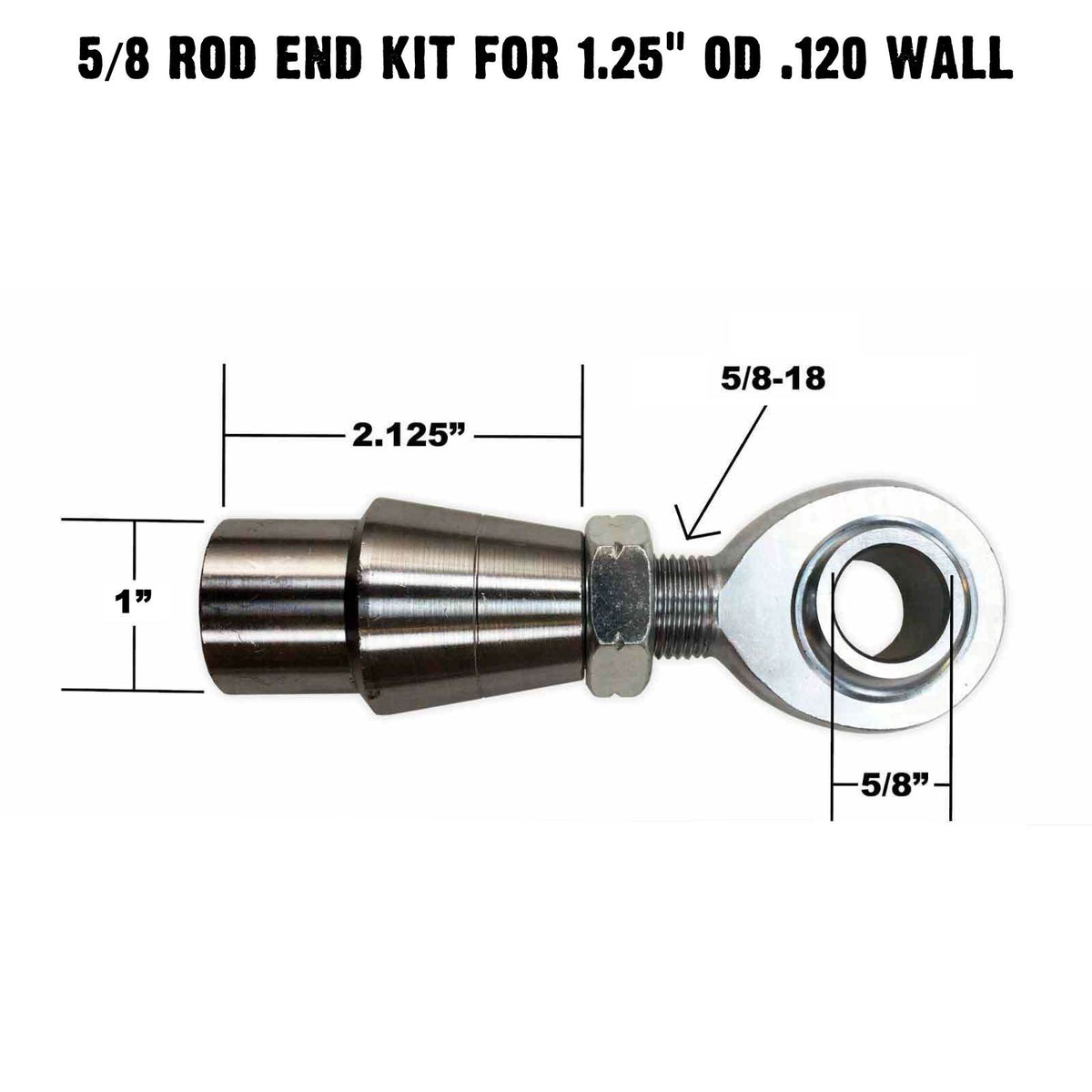

    • 1.25" OD x .095 Wall x 1.06" ID
    • 1.25" OD x .120 Wall x 1.0" ID

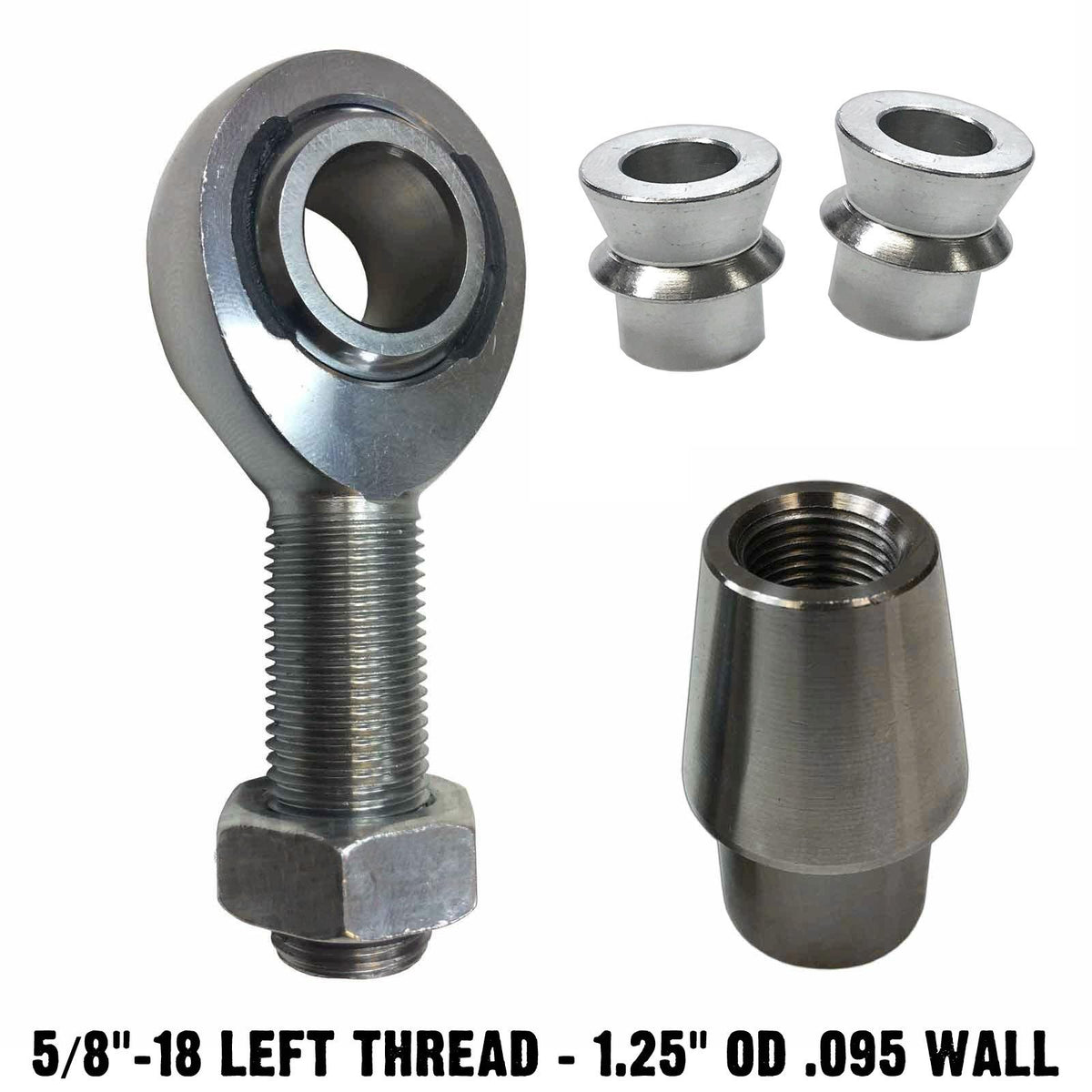

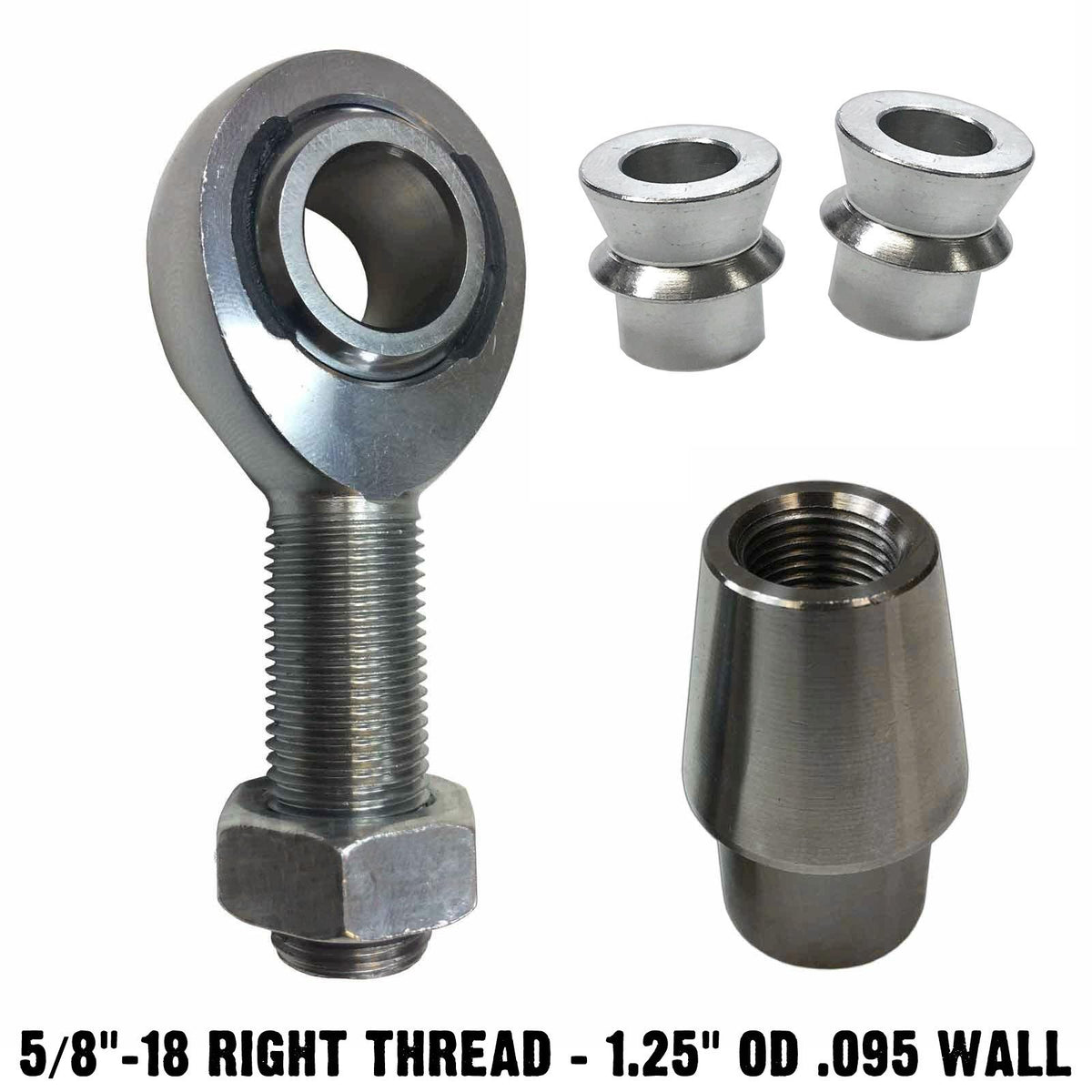

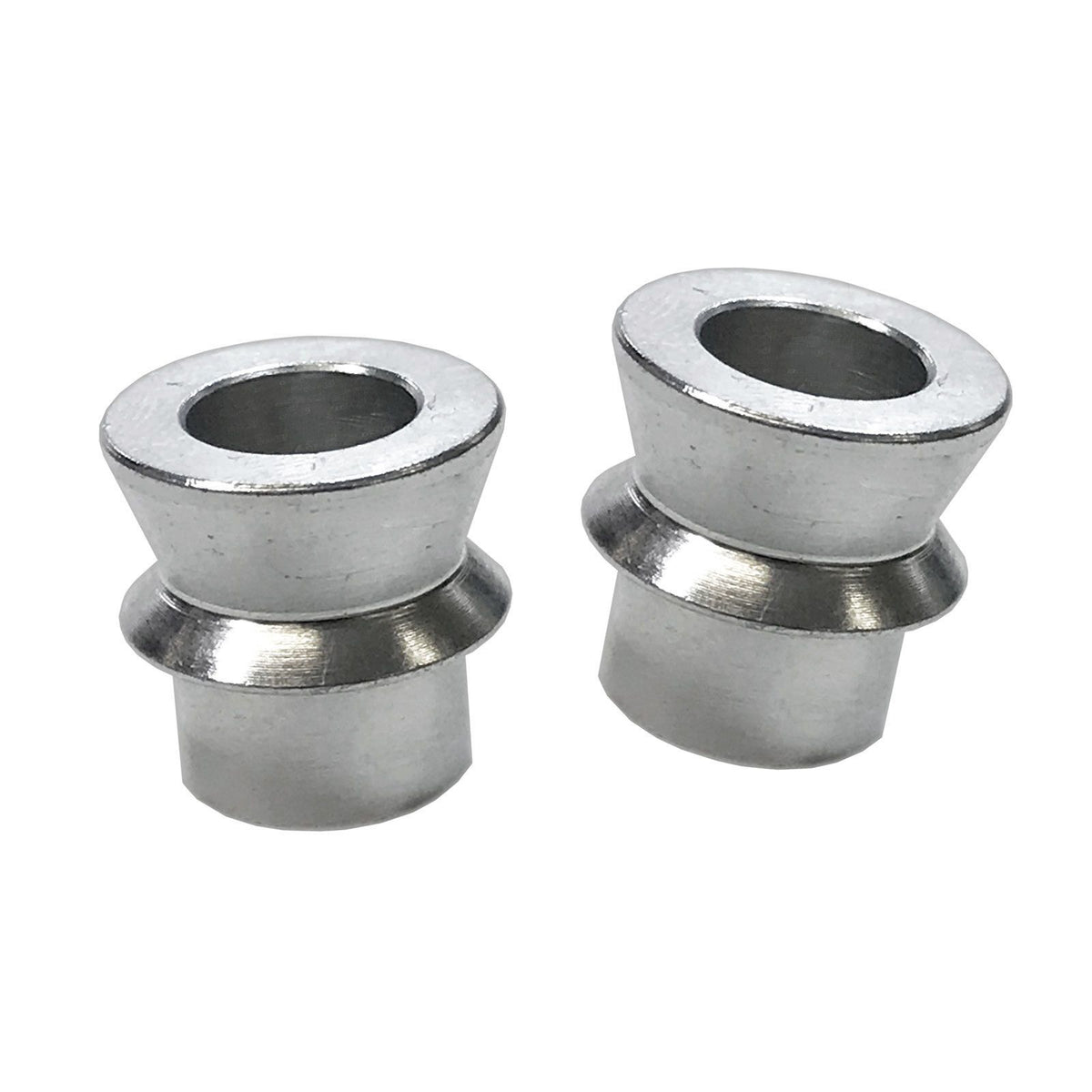

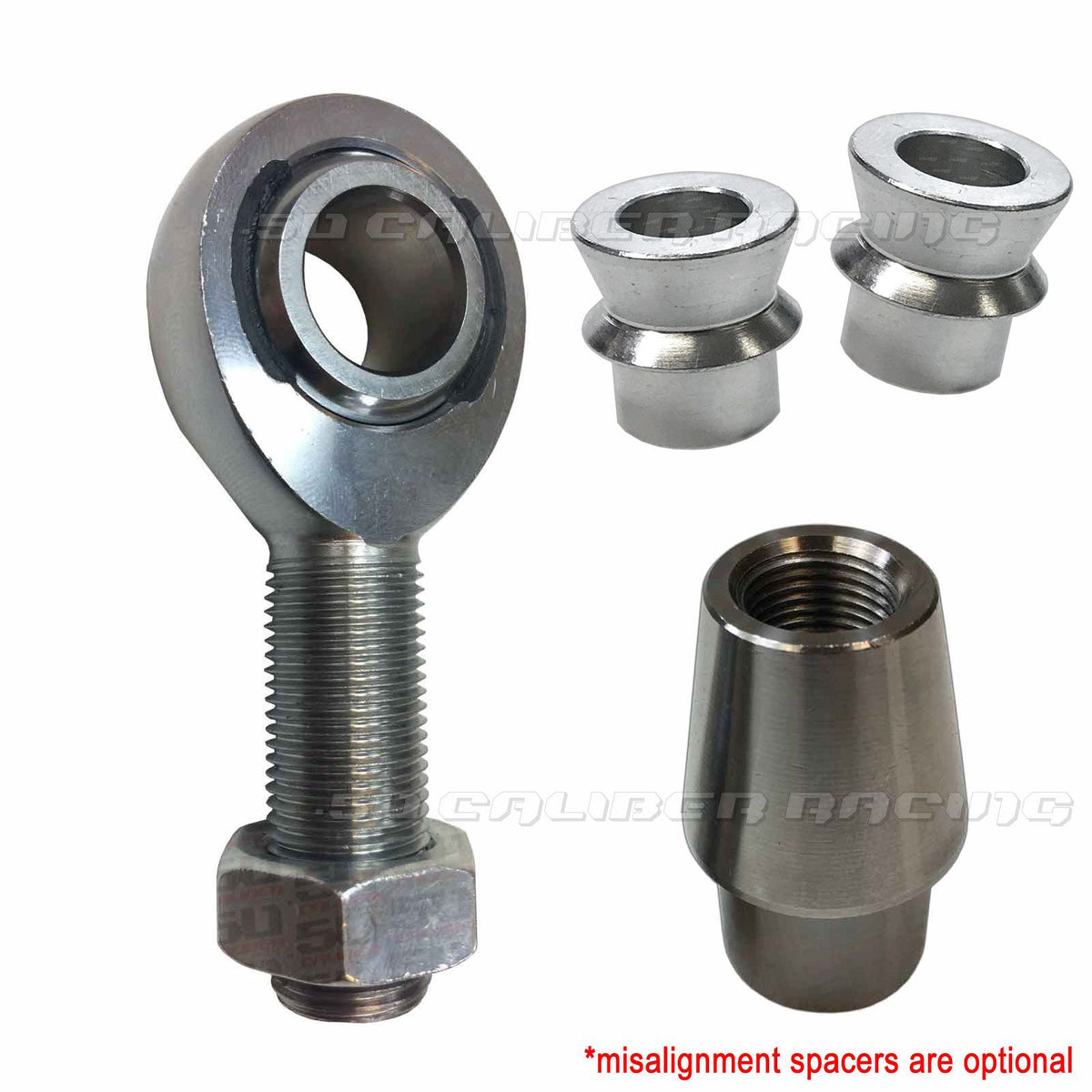

Misalignment Spacers (optional):

  • Material: Chromoly Steel
  • Surface finish: Zinc plated
  • .500" ID x .619" OD x .672" W
  • Compatible with 1/2" bolt size
  • Total assembled width with HMS spacers: 1.5"

What's Included

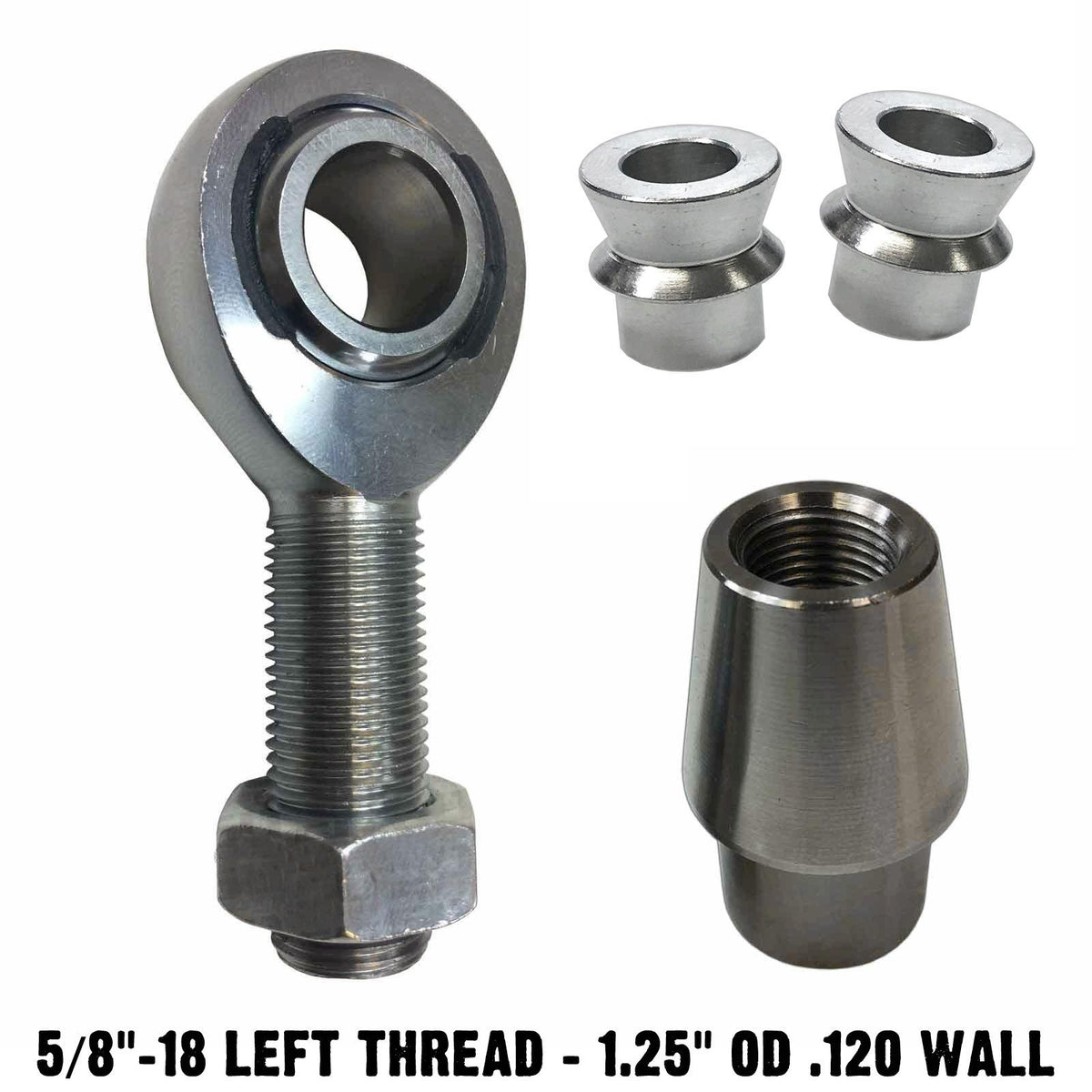

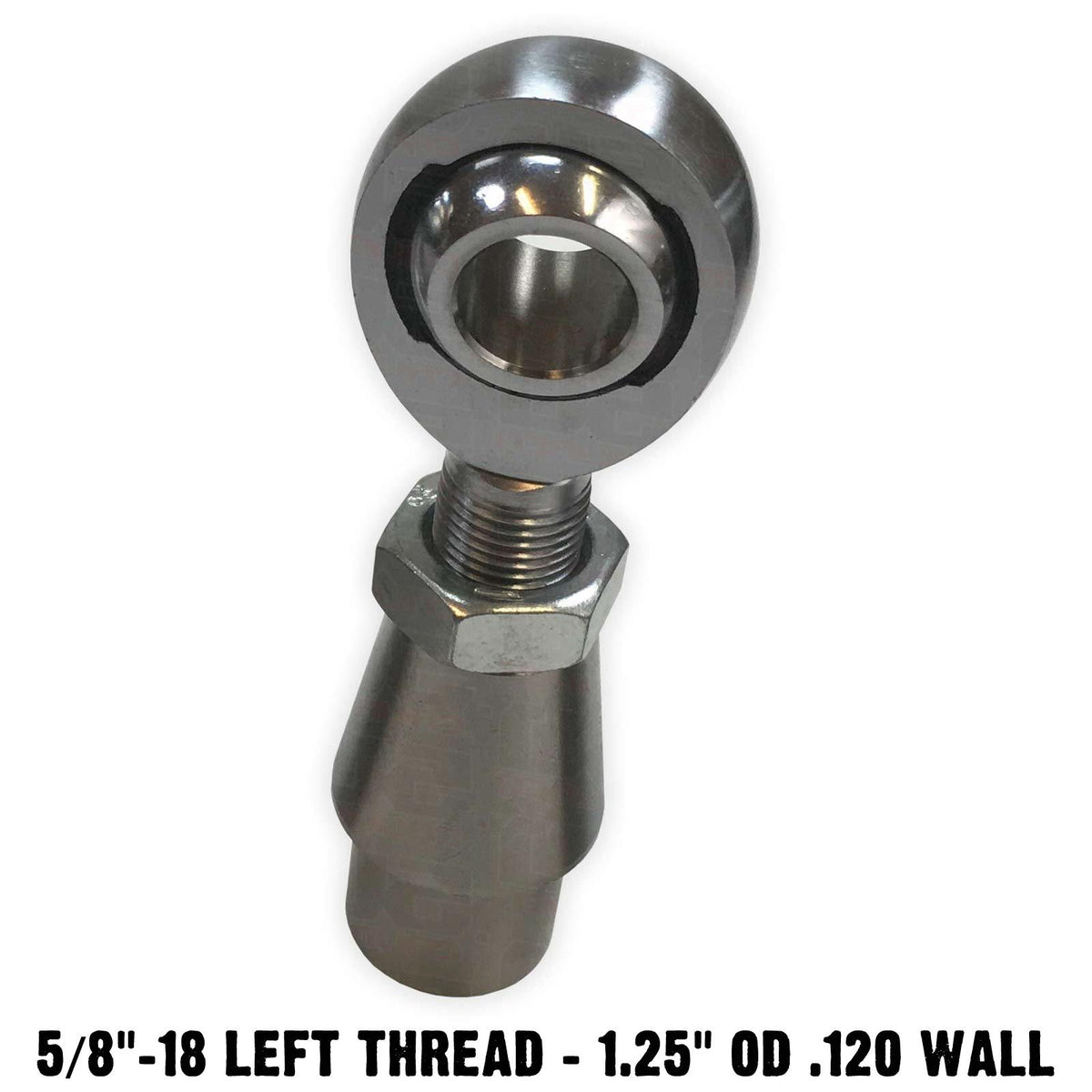

  • (1) 5/8-18 x 5/8 bore Heim - RH or LH Thread
  • (1) Jam Nut
  • (1) Weld in Bung (tubing adapter)
  • Optional: Misalignment spacers

Applications

  • Shock mounts
  • Radius rods
  • Sway bar links
  • Tie rods
  • Drag links
  • Control arms
  • 4 Link setups
  • Panhard bar
  • Hi steer
  • Custom Mounts

Perfect for fabricating custom suspension and steering links on your 4x4, sand rail, hot rod, race car, utv and more!
