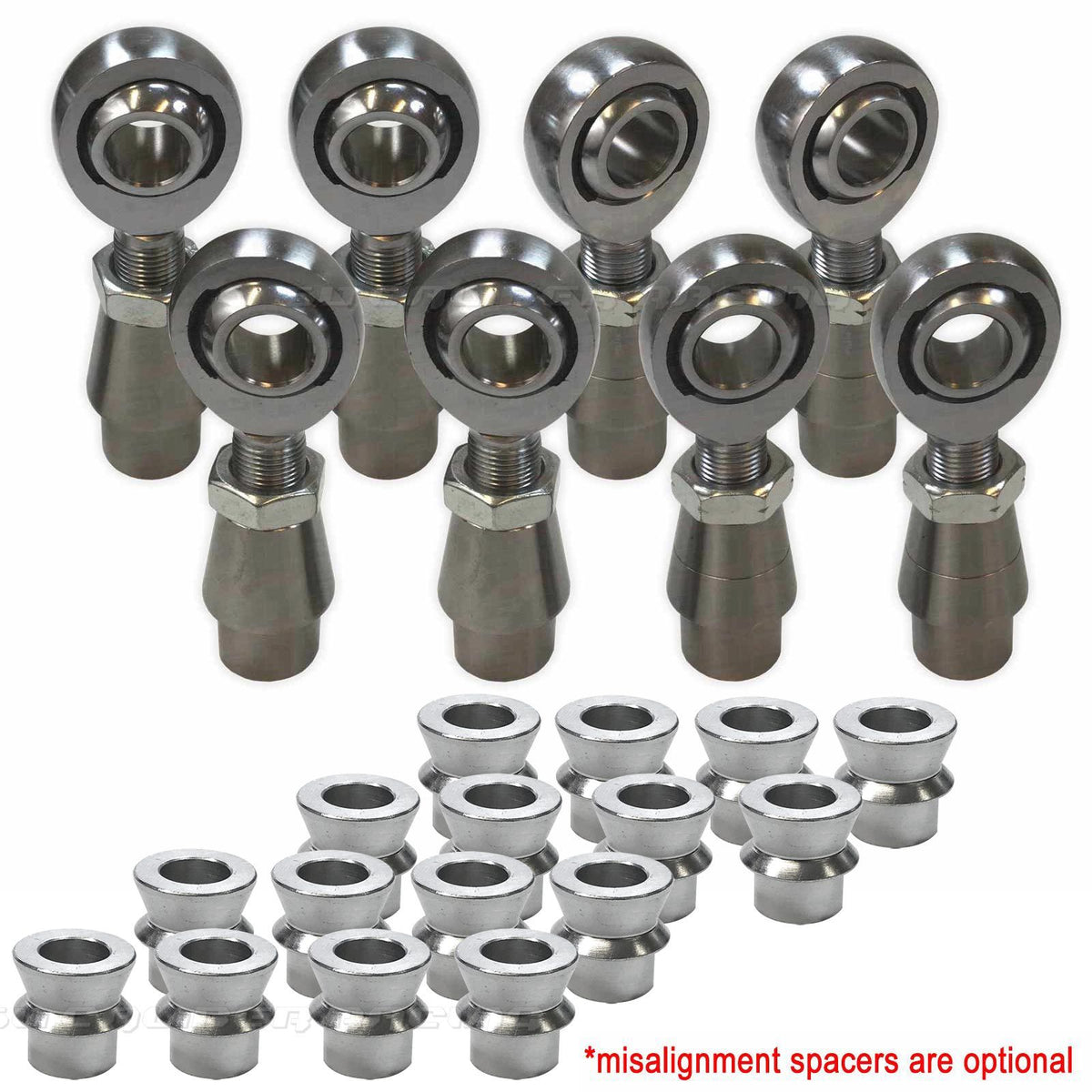

1/2 Chromoly Heim Joint 4 Link Rod End Kit for 1" Tubing | 4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD Tubing and high misalignment spacers included | Cover Image
1/2 Chromoly Heim Joint 4 Link Rod End Kit for 1" Tubing | 4 Link Rod End Kit - with Eight 1/2" Chromoly Heim joints and Eight bungs for 1" OD Tubing

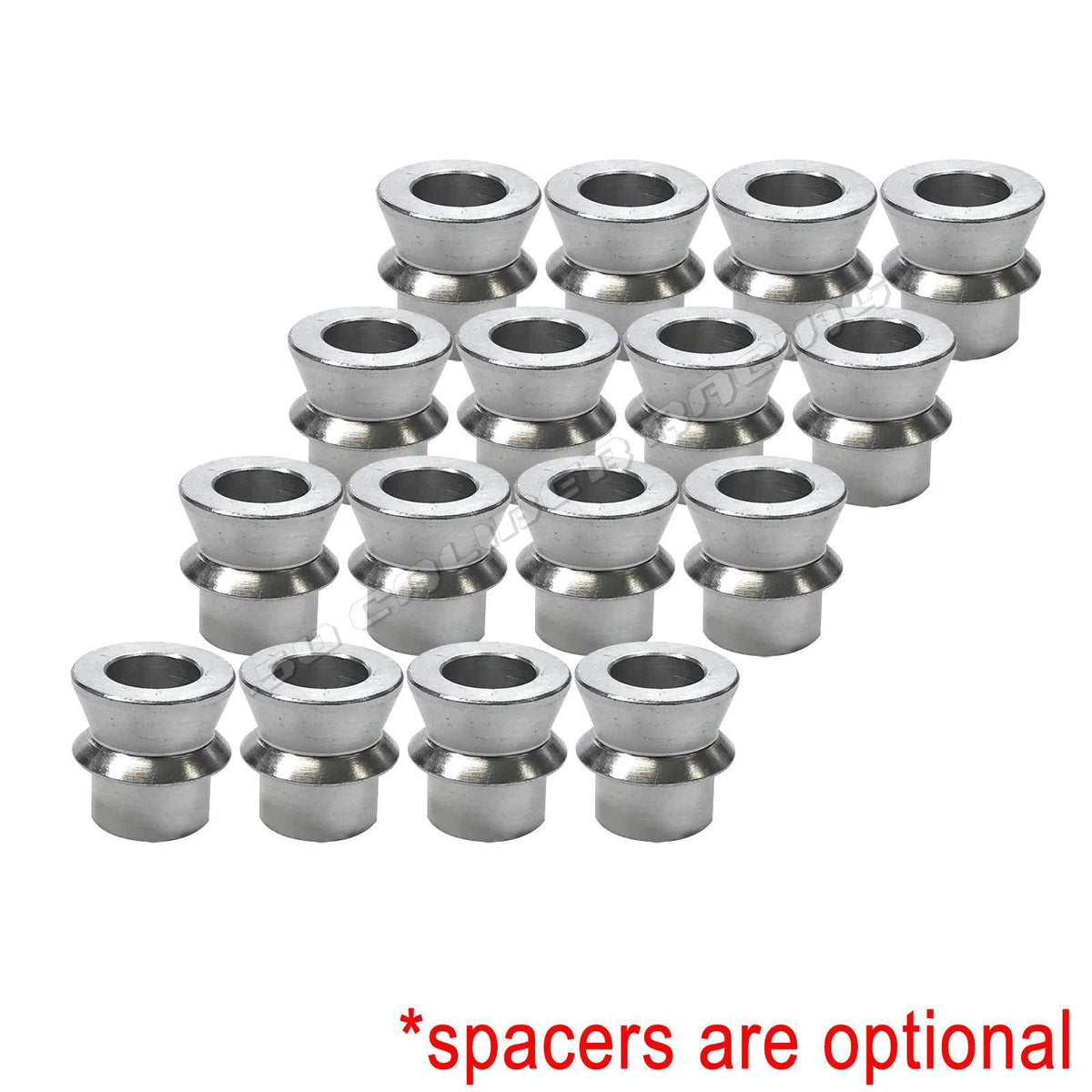

1/2 Chromoly Heim Joint 4 Link Rod End Kit for 1" Tubing | High misalignment spacers reduce 1/2" bore heim joint to 3/8" bolt

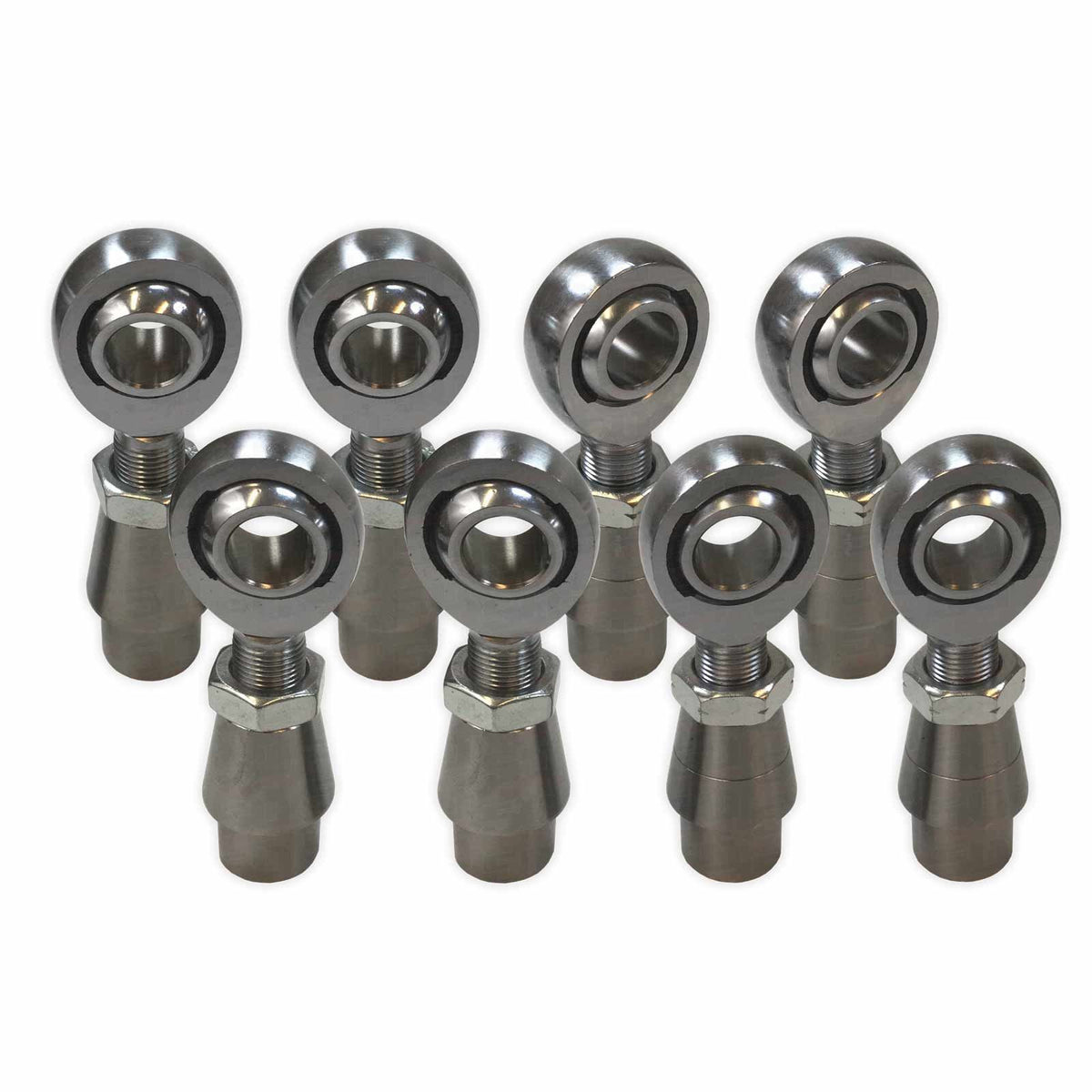

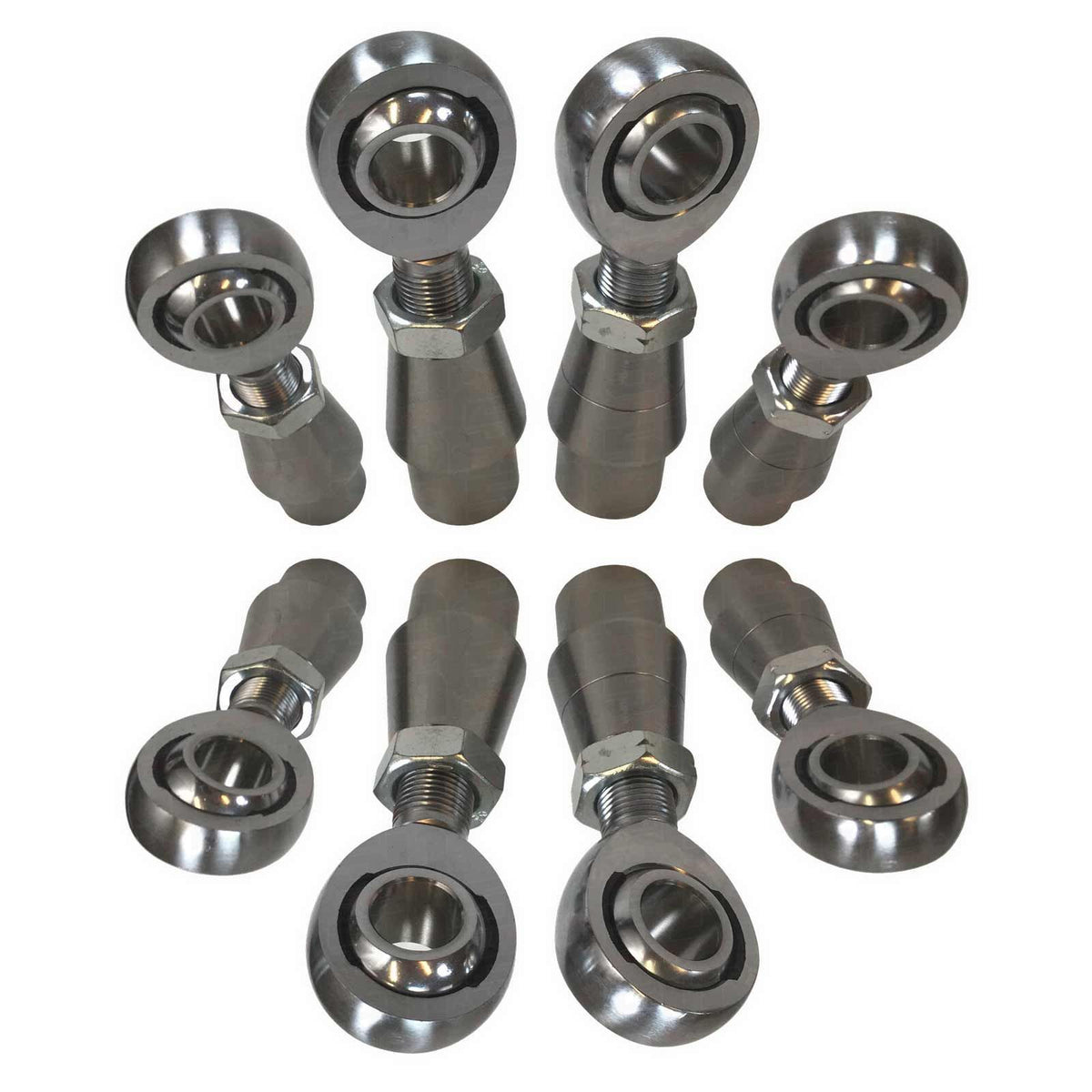

1/2 Chromoly Heim Joint 4 Link Rod End Kit for 1" Tubing | 1/2" Chromoly Heim joints with PTFE Liner, with bungs for .095 or .120 wall 1" OD Tubing

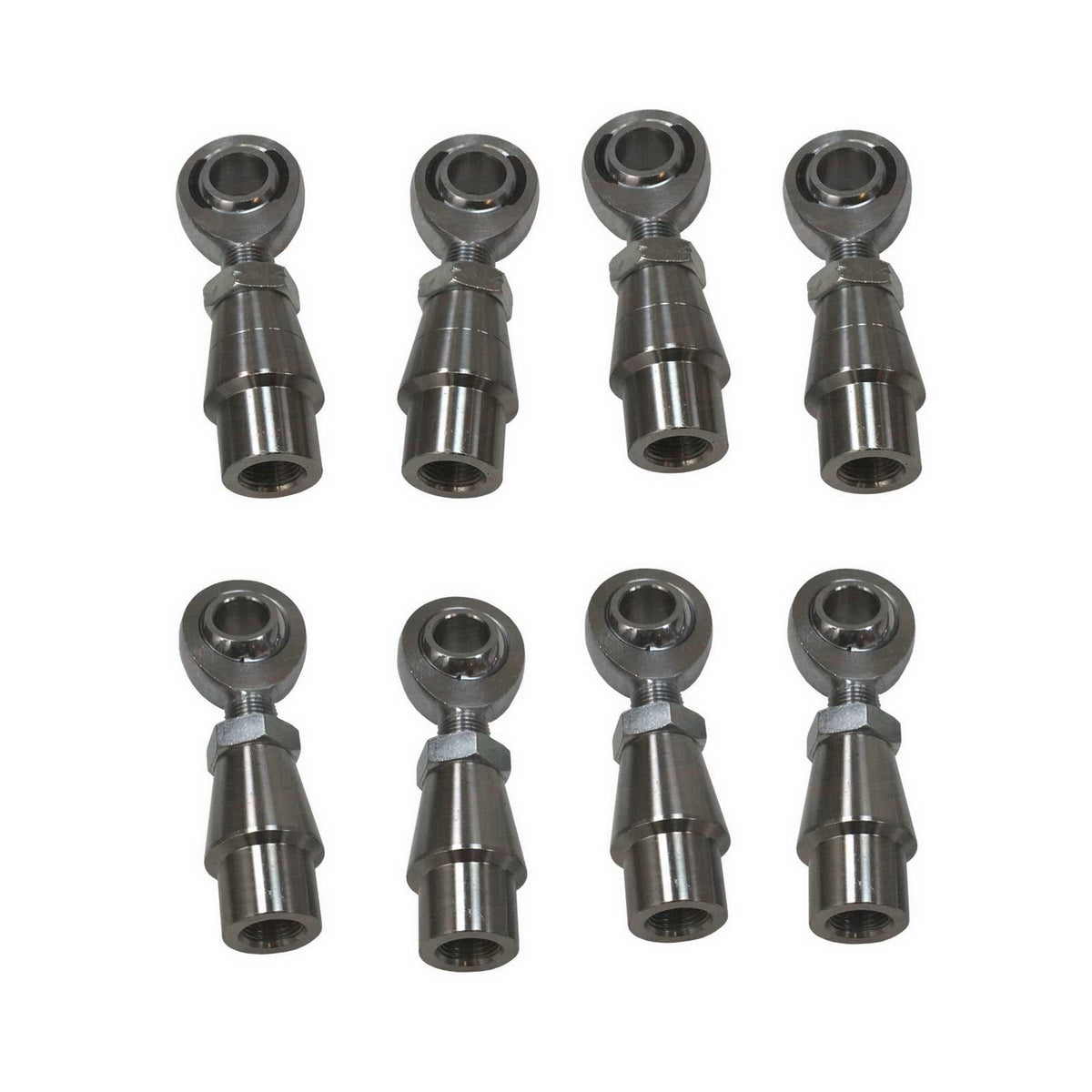

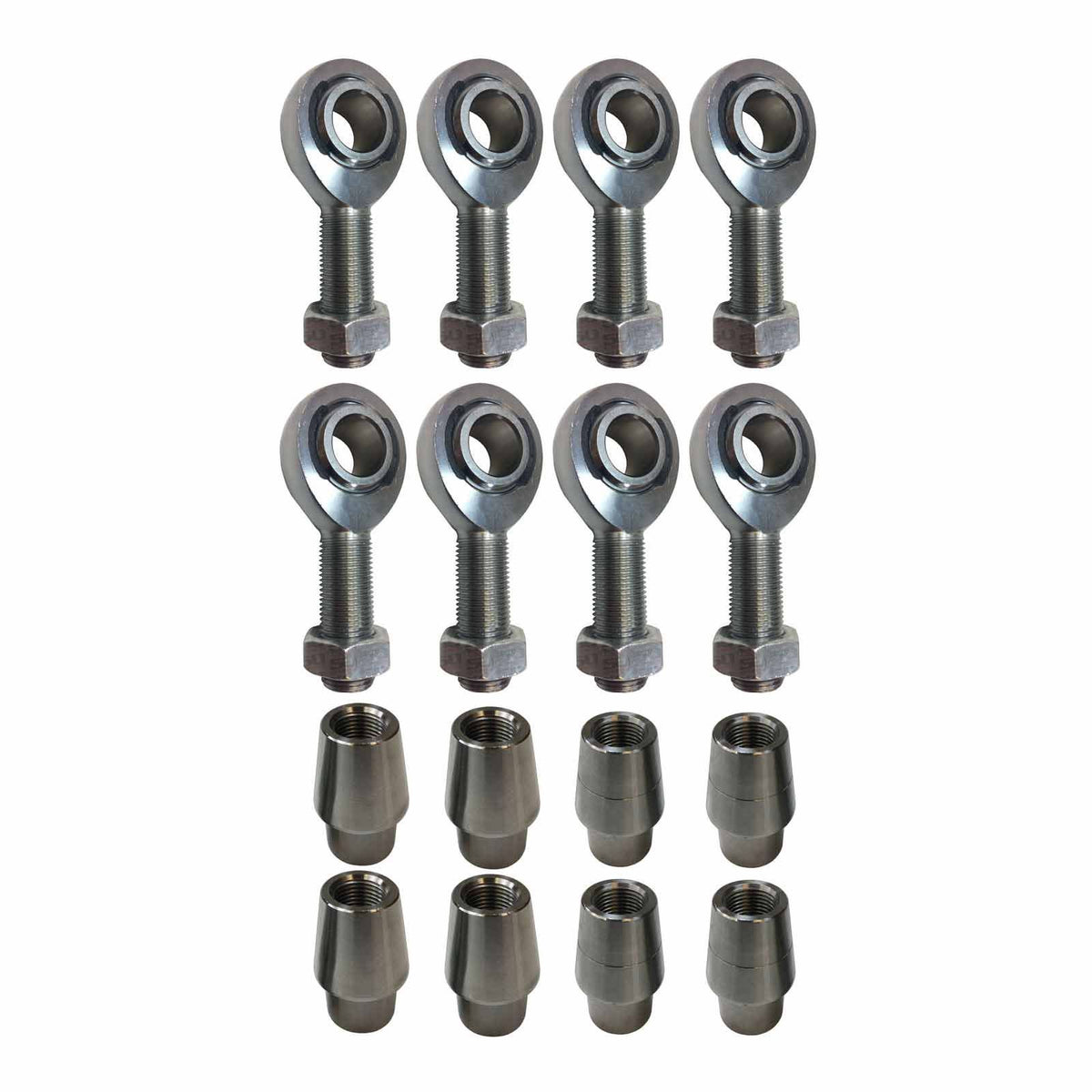

1/2 Chromoly Heim Joint 4 Link Rod End Kit for 1" Tubing | 4 Link Rod End Kit - Set of 8 Heim Joints, 4 Left Bungs, 4 Right Bungs
| 1/2" Chromoly Heim joints with PTFE Liner, with bungs for .095 or .120 wall 1" OD Tubing
| 4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD Tubing and high misalignment spacers included
1/2 Chromoly Heim Joint 4 Link Rod End Kit for 1" Tubing | 4 Link Rod End Kit - One free can koozie from many awesome designs!

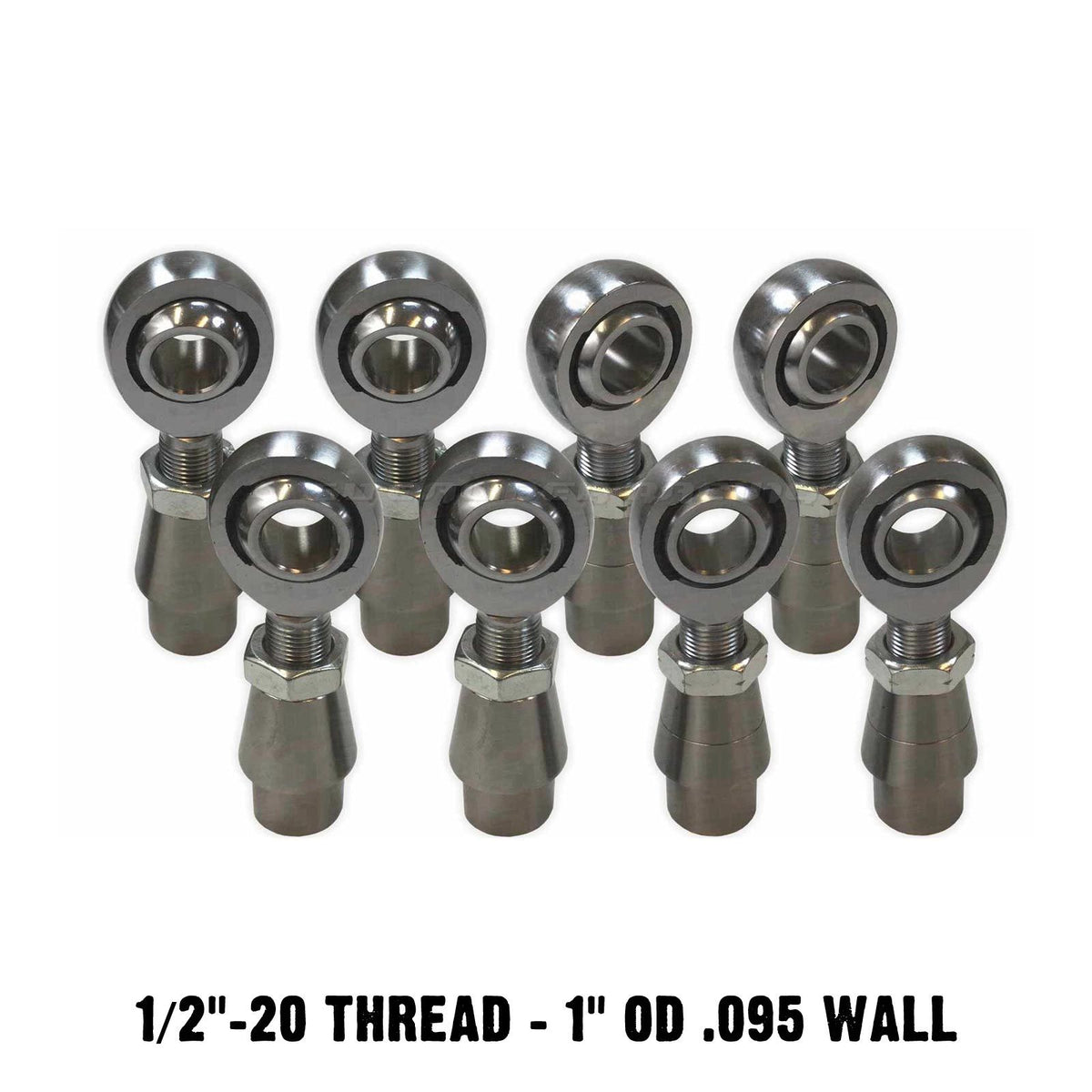

| 4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD .095 Wall Round Tubing Without Spacers

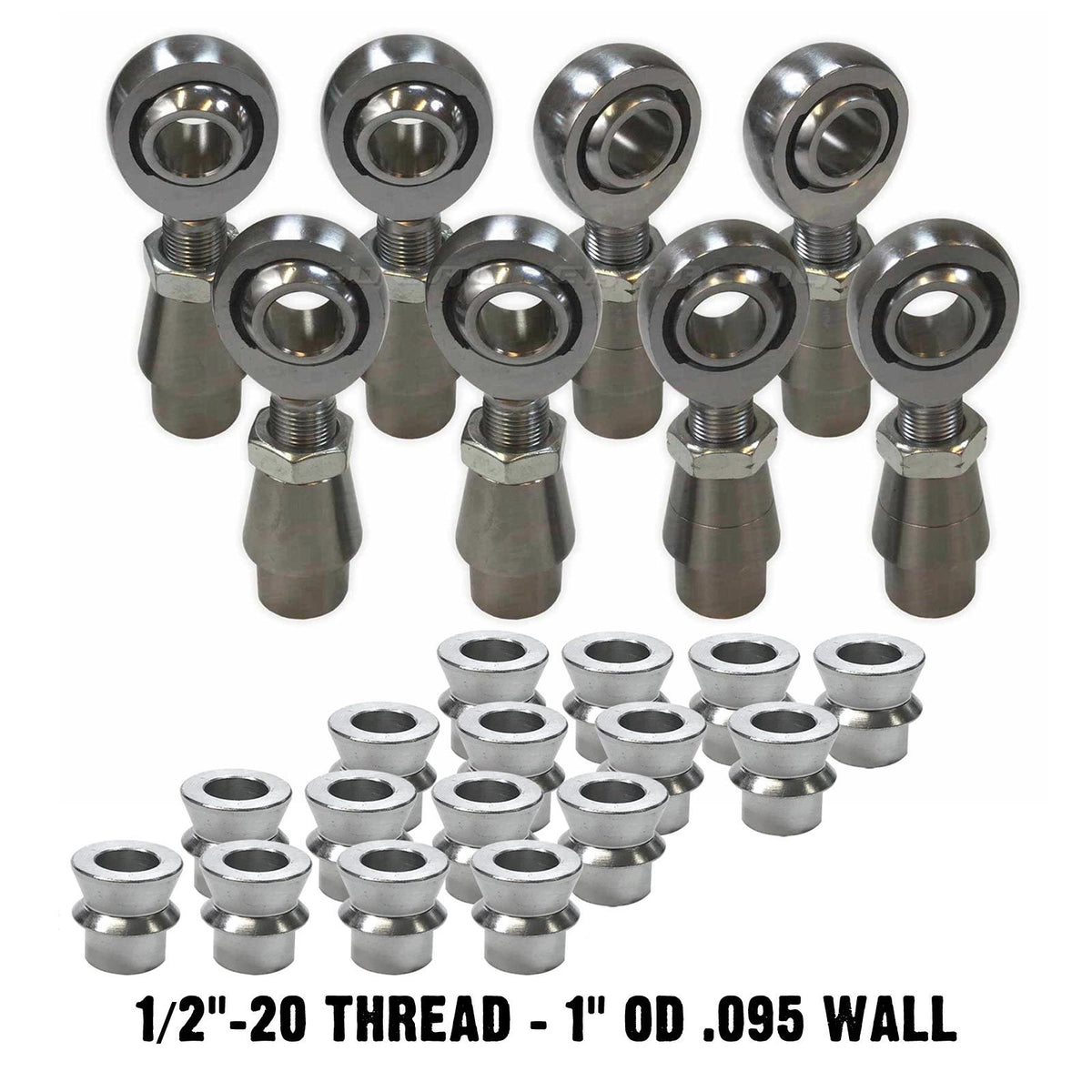

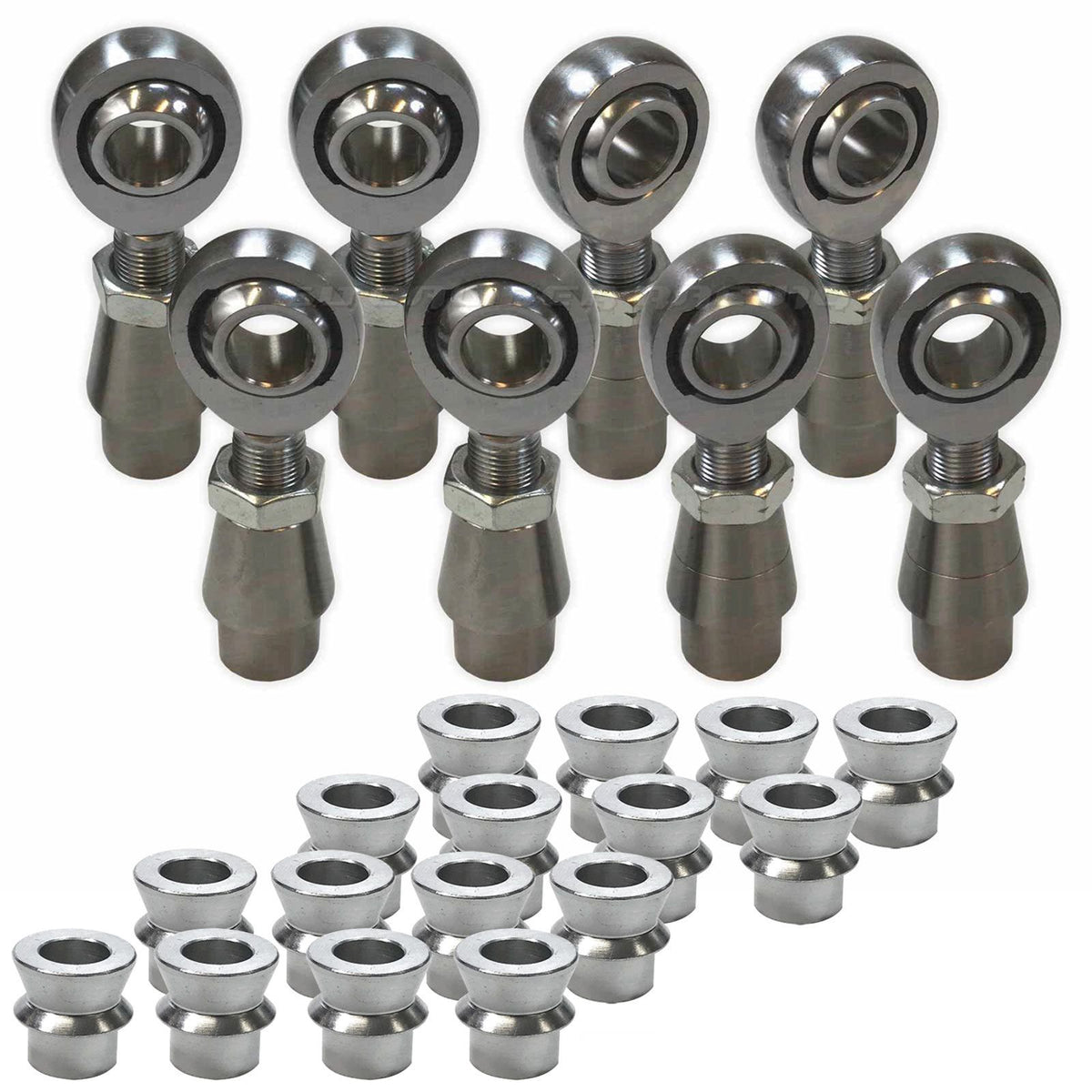

| 4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD .095 Wall Round Tubing WITH Spacers
| 4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD Tubing with .095 Wall thickness - Dimensions

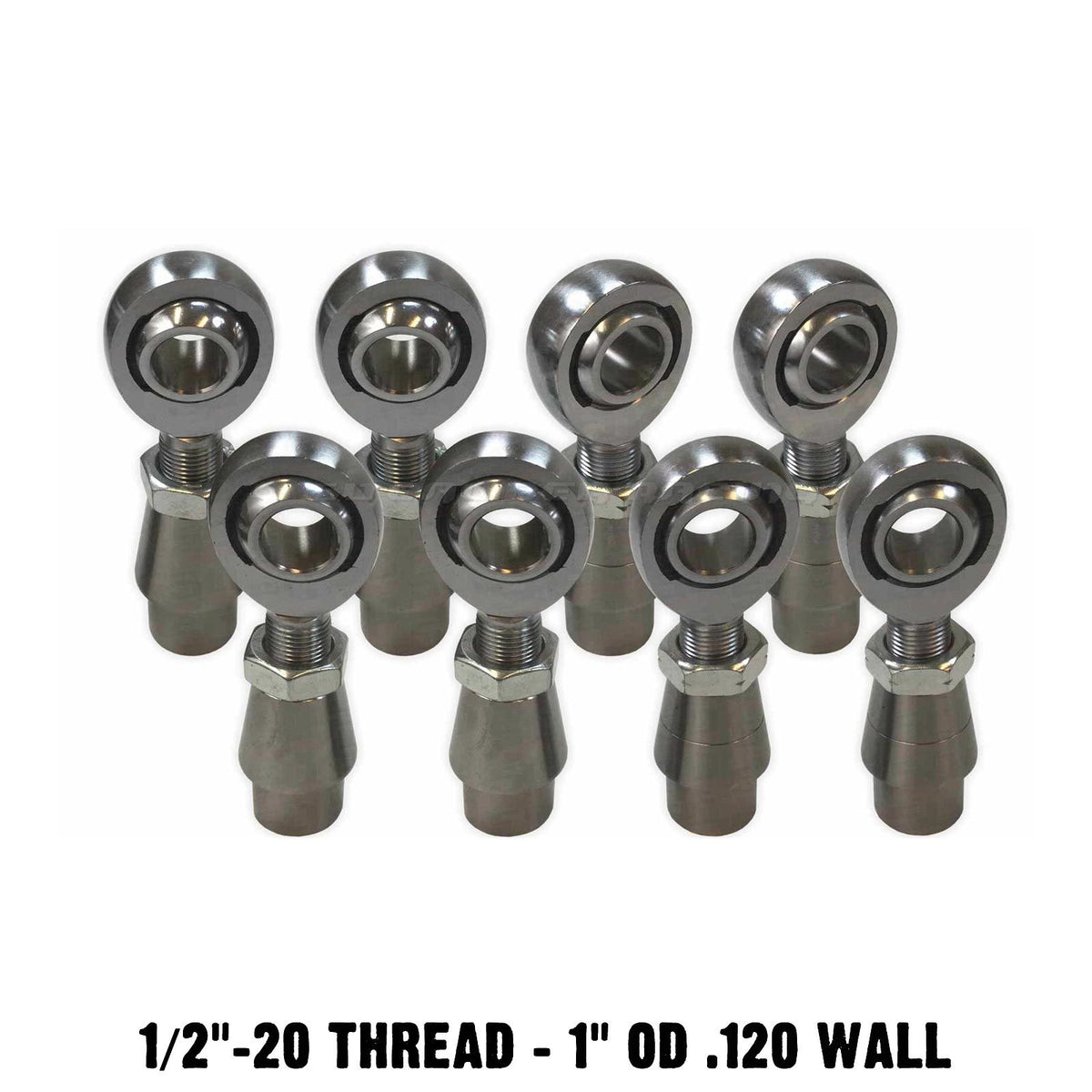

| 4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD .120 Wall Round Tubing Without Spacers
| 4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD .120 Wall Round Tubing WITH Spacers

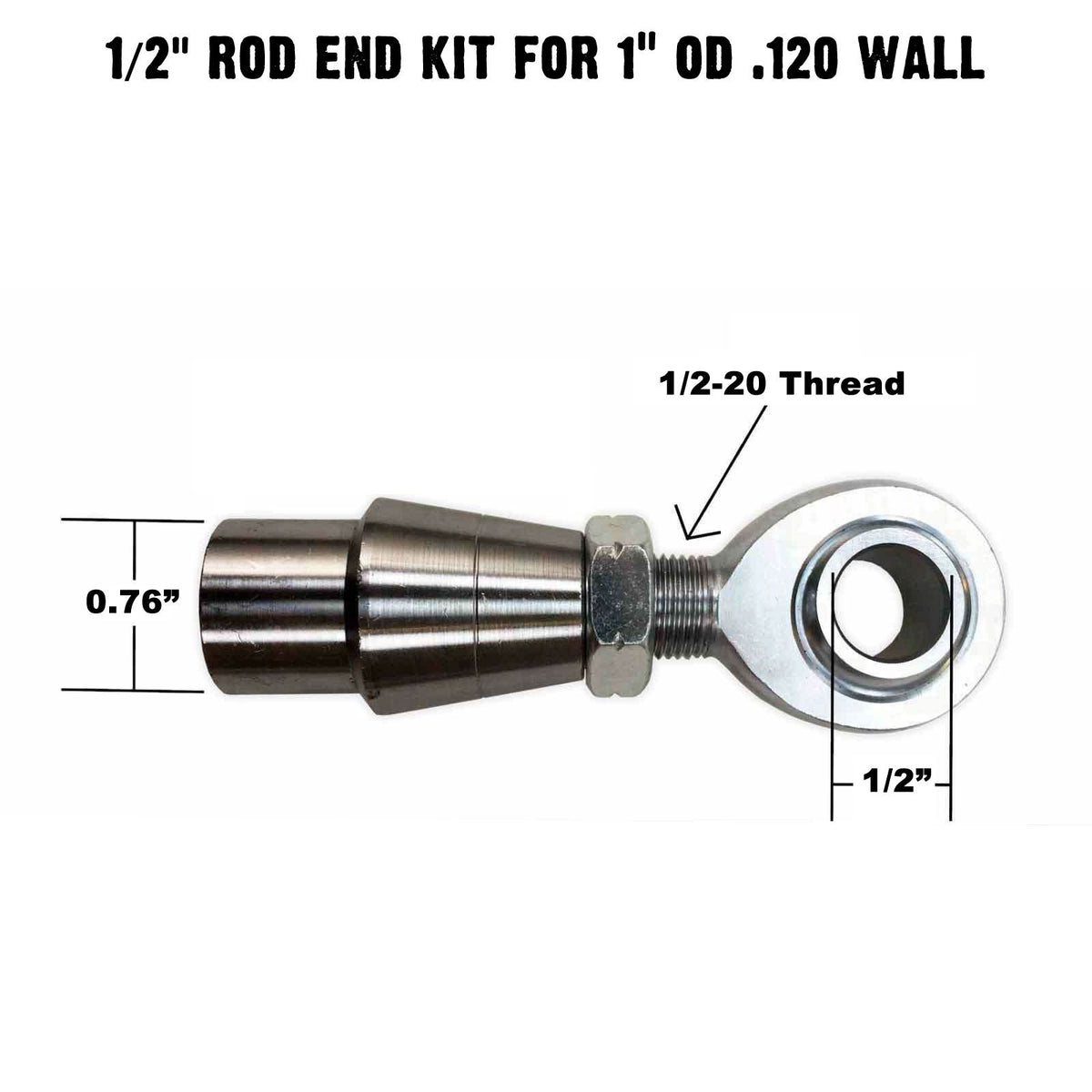

| 4 Link Rod End Kit - 1/2" Chromoly Heim - 1" OD Tubing with .120 Wall thickness - Dimensions

1/2 Chromoly Heim Joint 4 Link Rod End Kit for 1" Tubing

By 50 Caliber Racing
$118.00
SKU: 6101A5
Tubing Wall Thickness
Include High Misalignment Spacers
Rod End Kit Details
Heim joints8 (4 RH, 4 LH)
Jam nuts8 (4 RH, 4 LH)
Weld-in bungs8 (4 RH, 4 LH)
Heim1/2"-20 thread x 1/2" bore
Fits tubing1" OD, .095 or .120 wall
HMS spacersOptional
Material4130 chromoly, PTFE liner
Load rating16,238 lb static

Select tubing wall thickness and misalignment spacer options before ordering.

Looking for a Different Size?

1/2" heim for 1" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

5/8" heim for 1.25" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

3/4" heim for 1.5" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

3/4" heim for 1.75" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

7/8" heim for 1.5" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

7/8" heim for 1.75" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

Goes with

Heim JointsHeim JointsWeld BungsWeld BungsHMS SpacersHMS Spacers

See all rod end kits

Description

4 Link Rod end fabrication kit complete with 1/2 x 1/2 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapters). Designed specifically for 1" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building a custom 4 link suspension setup, radius rods and control arms for go karts, ATVs, UTVs, cars and more. Includes heim joints, jam nuts and bungs. Available with or without high misalignment spacers (HMS).

Specifications

Heim Joint:

  • 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
  • Static radial load rating: 16,238 lb
  • Thread pitch: Male 1/2"-20
  • Bore: 1/2"
  • Ball end diameter: 1.312"
  • Socket width: .500"
  • Ball width: .625"
  • Center line length: 2.438"

Bung:

  • Thread: Female 1/2"-20
  • Material: Chromoly Steel
  • Thread Length: Full length
  • Choose from 2 different tube sizes:
    • 1" OD x .095 Wall x 0.81" ID
    • 1" OD x .120 Wall x 0.76" ID

Misalignment Spacers (optional):

  • Material: Chromoly Steel
  • Surface finish: Zinc plated
  • .375" ID x .499" OD x .617" W
  • Compatible with 3/8" bolt size
  • Total assembled width with HMS spacers: 1.375"

What's Included

  • (4) 1/2-20 x 1/2 bore Heims - RH Thread
  • (4) 1/2-20 x 1/2 bore Heims - LH Thread
  • (4) RH Jam Nuts
  • (4) LH Jam Nuts
  • (4) RH Weld in Bungs (tubing adapter)
  • (4) LH Weld in Bungs (tubing adapter)
  • Optional: (16) Misalignment spacers

Applications

  • 4 Link suspension arms
  • Tie Rods
  • Hi steer components
  • Radius rods
  • Panhard bar / trackbar
  • Drag link
  • Control arms
  • Sway bar end links
  • Custom Mounts

Perfect for fabricating custom suspension and steering links on your go kart, sand rail, hot rod, race car, utv and more!
