High Misalignment Spacers - Chromoly with Zinc Plating

By 50 Caliber Racing
$18.00
SKU: 5801
Choose Size
HMS Spacer Details
Sold asPack of 2 (1 heim joint)
1/2" heim3/8" bolt
5/8" heim1/2" bolt
3/4" heim5/8" bolt
7/8" heim3/4" bolt
Material4130 chromoly, zinc plated

Pack of 2: enough for one heim joint. Order one pack per joint.

Need Heim Joints to Match?
1/2" Heim Jointuses 1/2" spacers5/8" Heim Jointuses 5/8" spacers3/4" Heim Jointuses 3/4" spacers7/8" Heim Jointuses 7/8" spacers

Goes with

Weld BungsWeld BungsRod End KitsRod End Kits

See all heim joints

Description

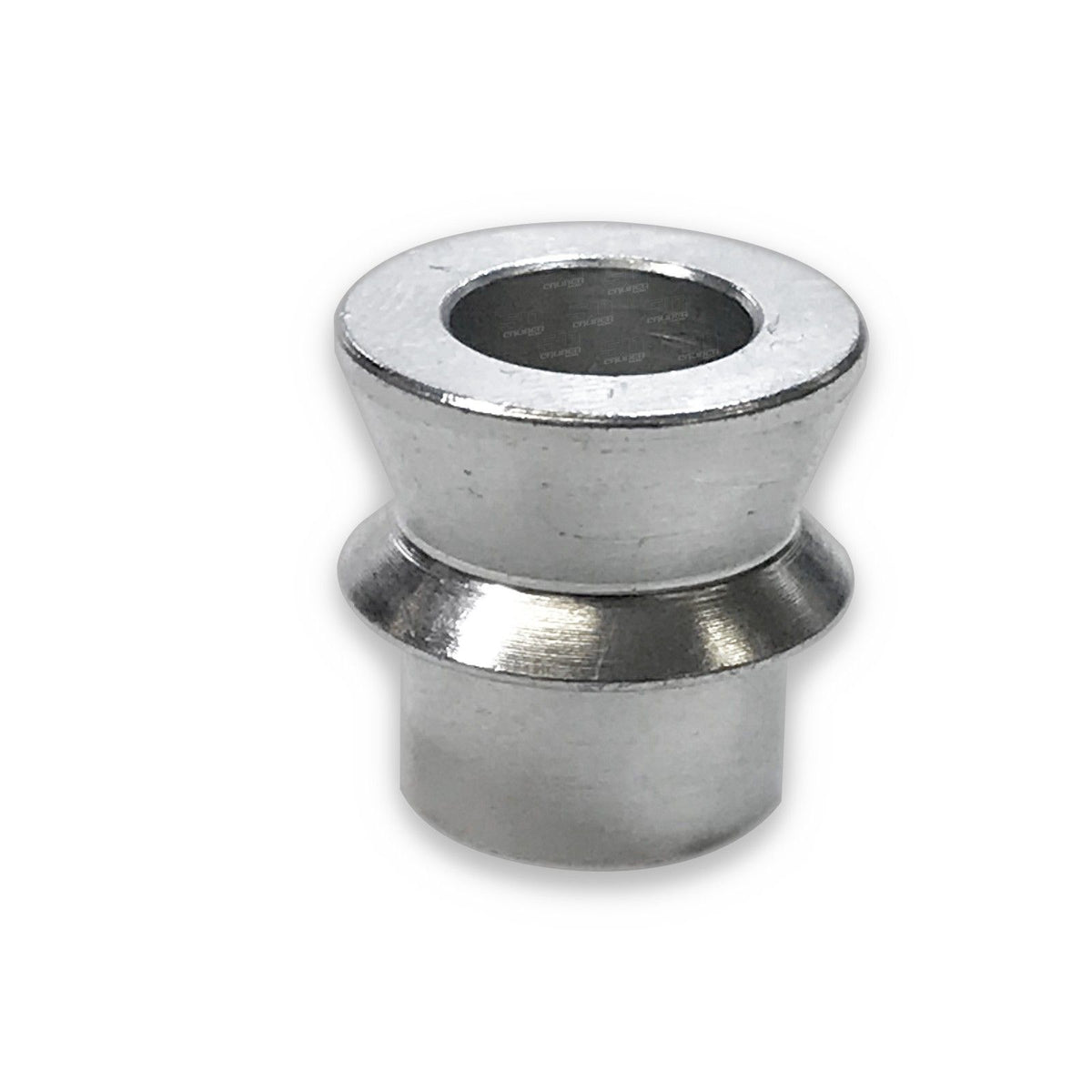

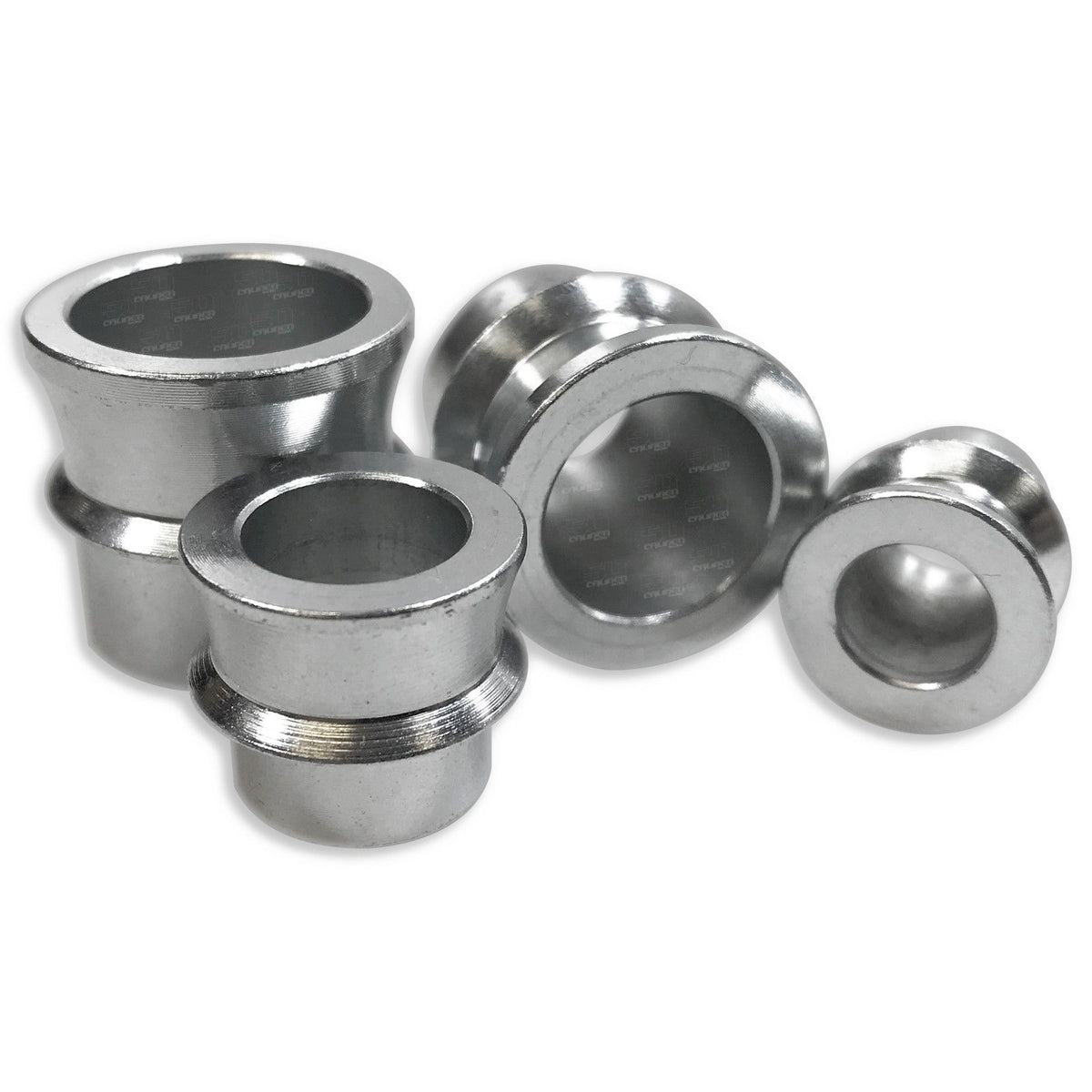

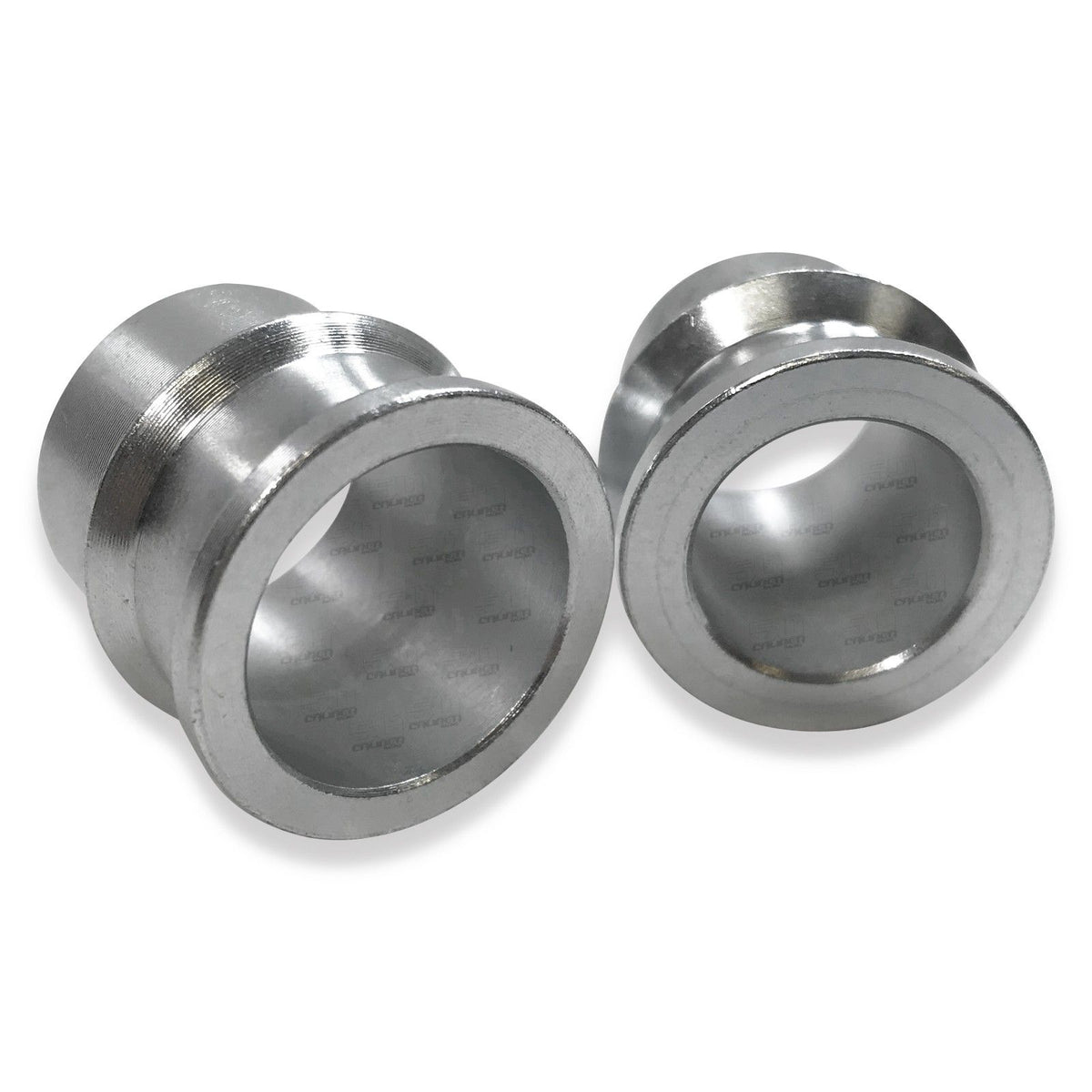

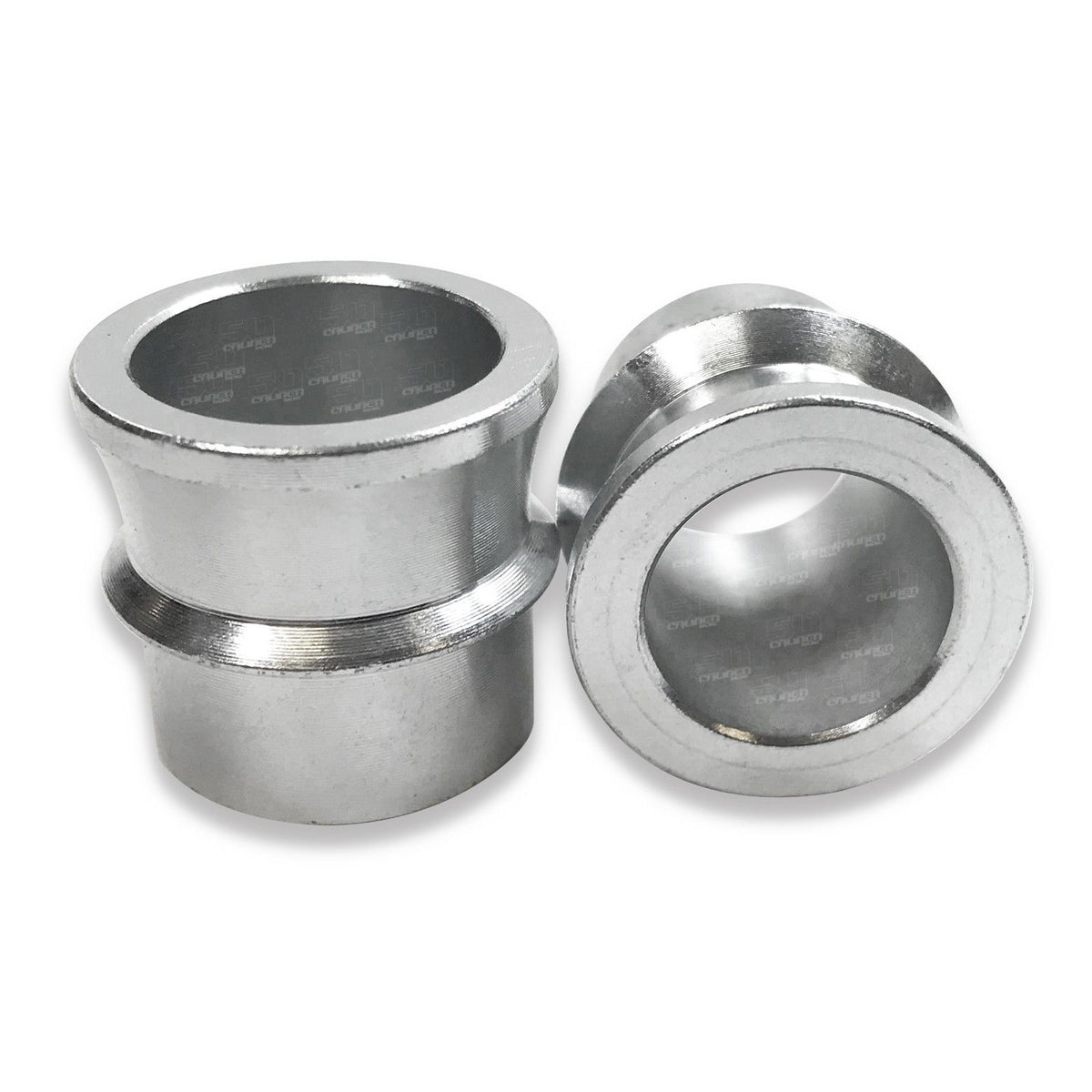

High misalignment spacers (HMS) for heim joints, sold in a pack of 2. Made from zinc plated 4130 Chromoly steel. Available in several sizes to fit any fabrication project. Used to fabricate custom tie rods, control arms, sway bar links, and more. Price is for one pair of spacers, enough for one Heim joint.

Specifications

  • Made from 4130 Chromoly steel alloy
  • Zinc coated for corrosion resistance
  • Sold in a pack of 2

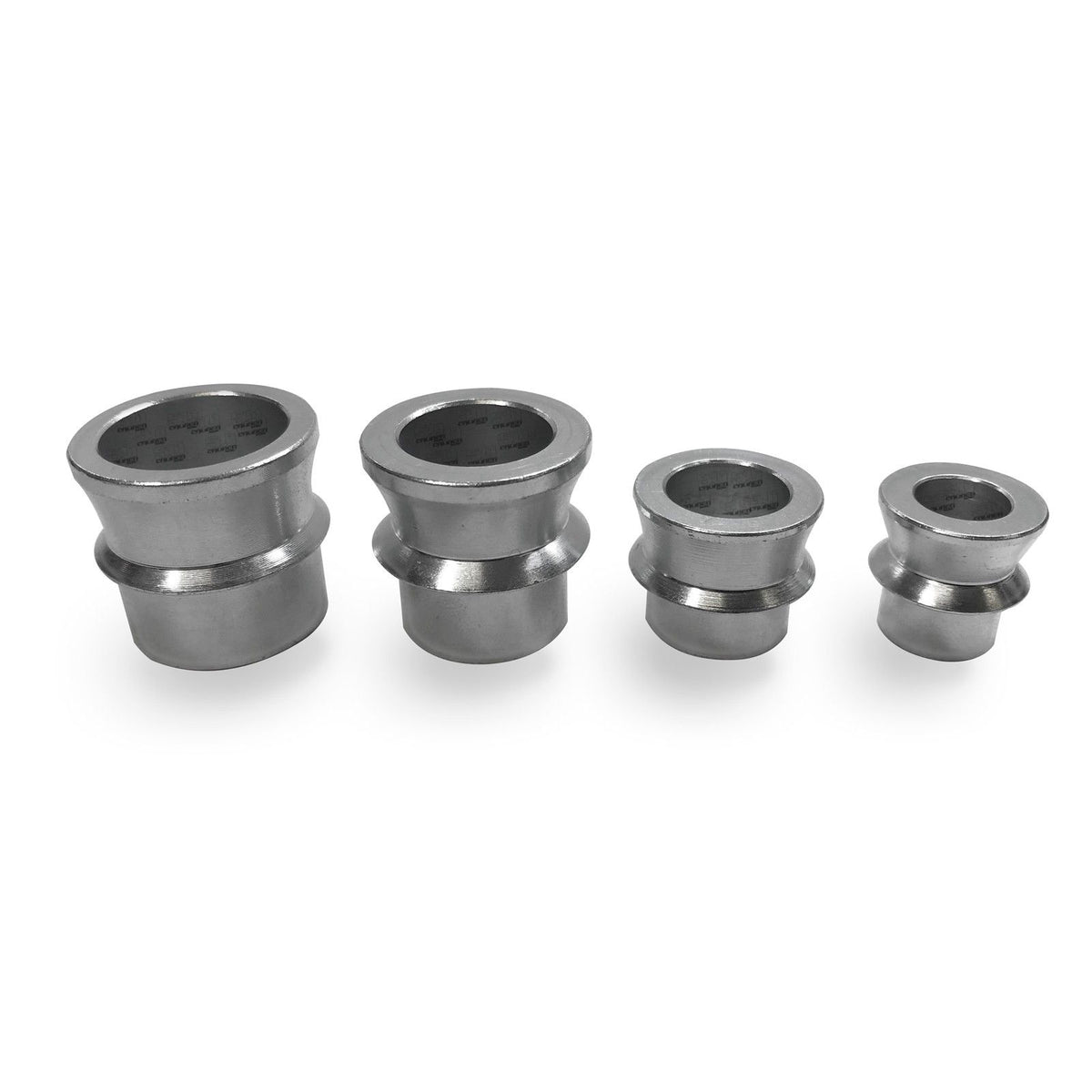

Sizes:

  • 1/2"
    • .375" ID x .494" OD x .617" W
    • 1/2" Hole to 3/8" bolt size
  • 5/8"
    • .500" ID x .619" OD x .672" W
    • 5/8" Hole to 1/2" bolt size
  • 3/4"
    • .625" ID x .743" OD x .922" W
    • 3/4" Hole to 5/8" bolt size
  • 7/8"
    • .750" ID x .869" OD x .926" W
    • 7/8" Hole to 3/4" bolt size

What's Included

  • (2) Misalignment spacers (pack of 2, enough for one heim joint)

Applications

  • Shock mounts
  • Radius rods
  • Sway bar links
  • Tie rods
  • Ladder Bars
  • Control arms
  • 4 Link setups
  • Panhard bar
  • Hi steer

Perfect for fabricating suspension parts on your 4x4, sand rail, hot rod, race car, utv and more!
