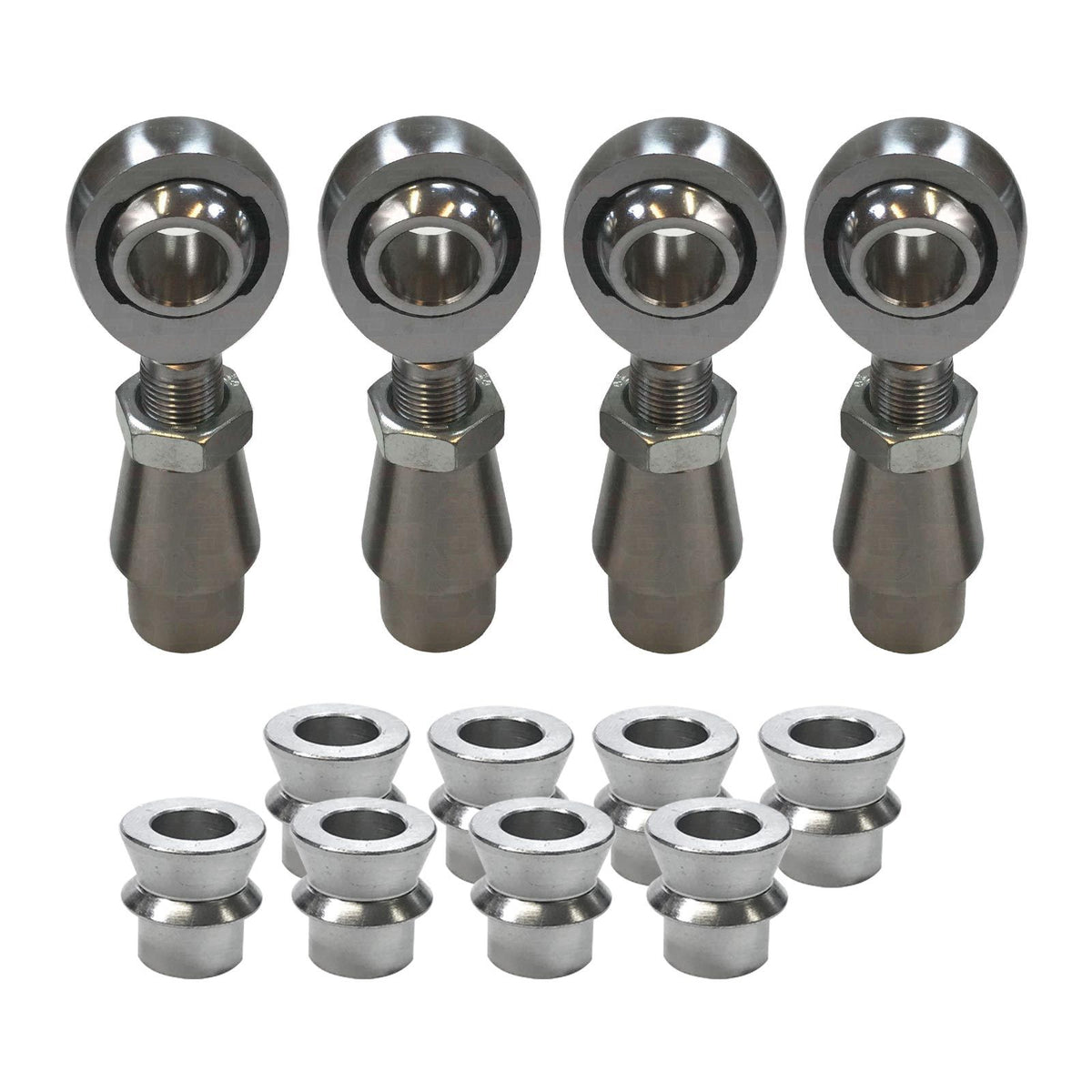

3/4 Chromoly Heim Joint Rod End Kit for 1.75" Tubing – Sway Bar Link | 3/4" Sway Bar Link Rod End Kit for 1.75" OD Tubing - Shown with Optional Misalignment Spacers
| 3/4" Sway Bar Link Rod End Kit for 1.75" OD Tubing

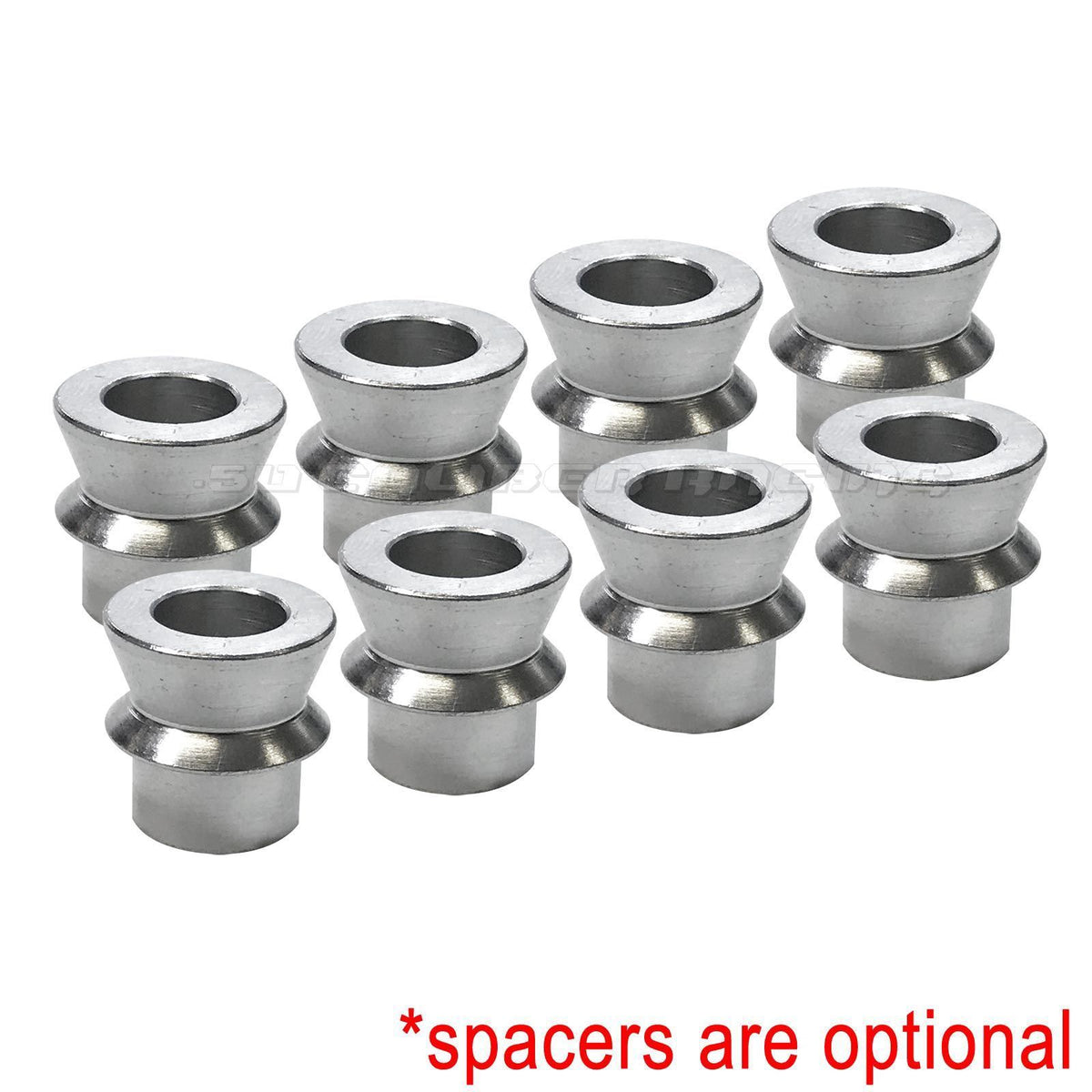

3/4 Chromoly Heim Joint Rod End Kit for 1.75" Tubing – Sway Bar Link | 3/4" Sway Bar Link Rod End Kit for 1.75" OD Tubing - High Offset Misalignment Spacers made from Zinc plated Chromoly Steel

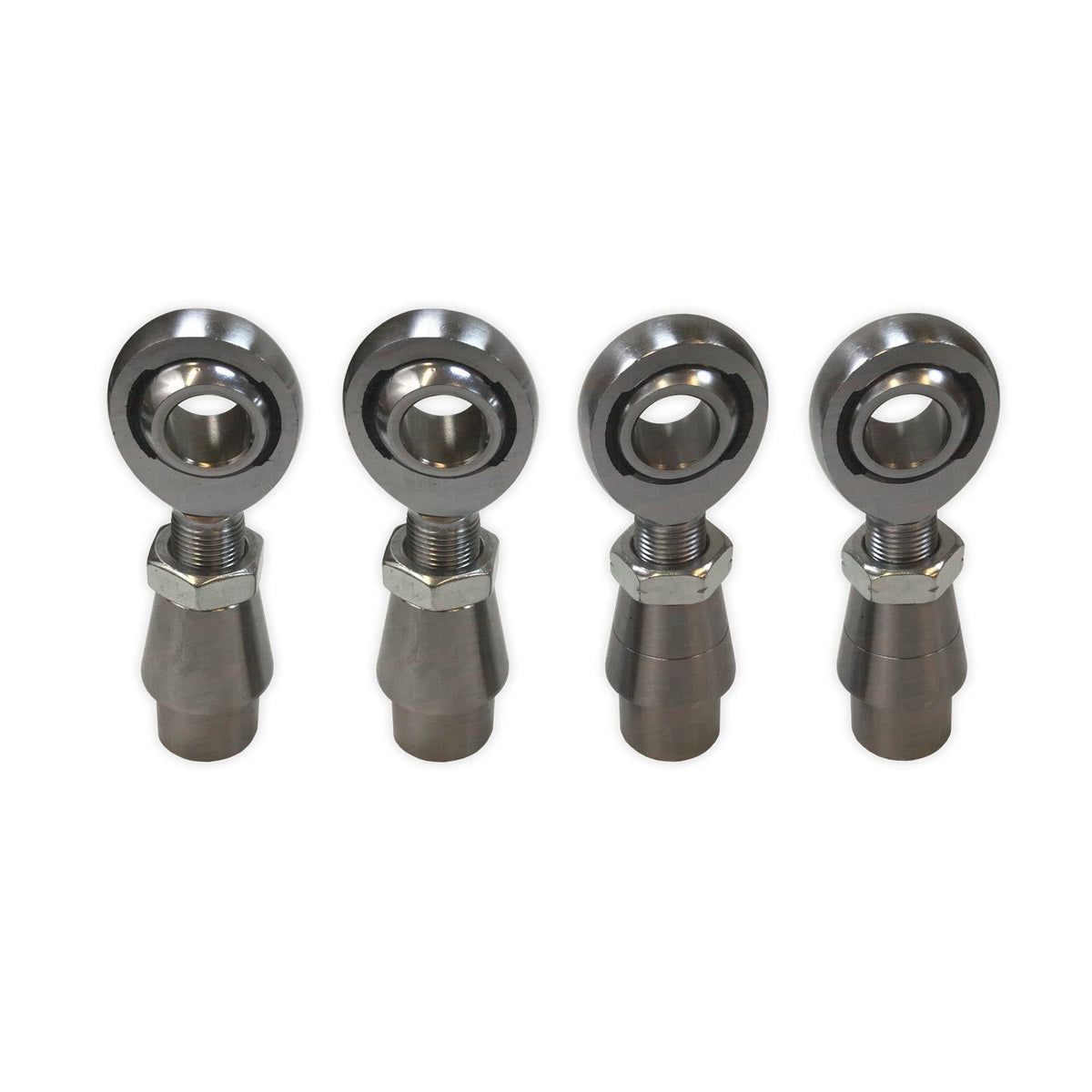

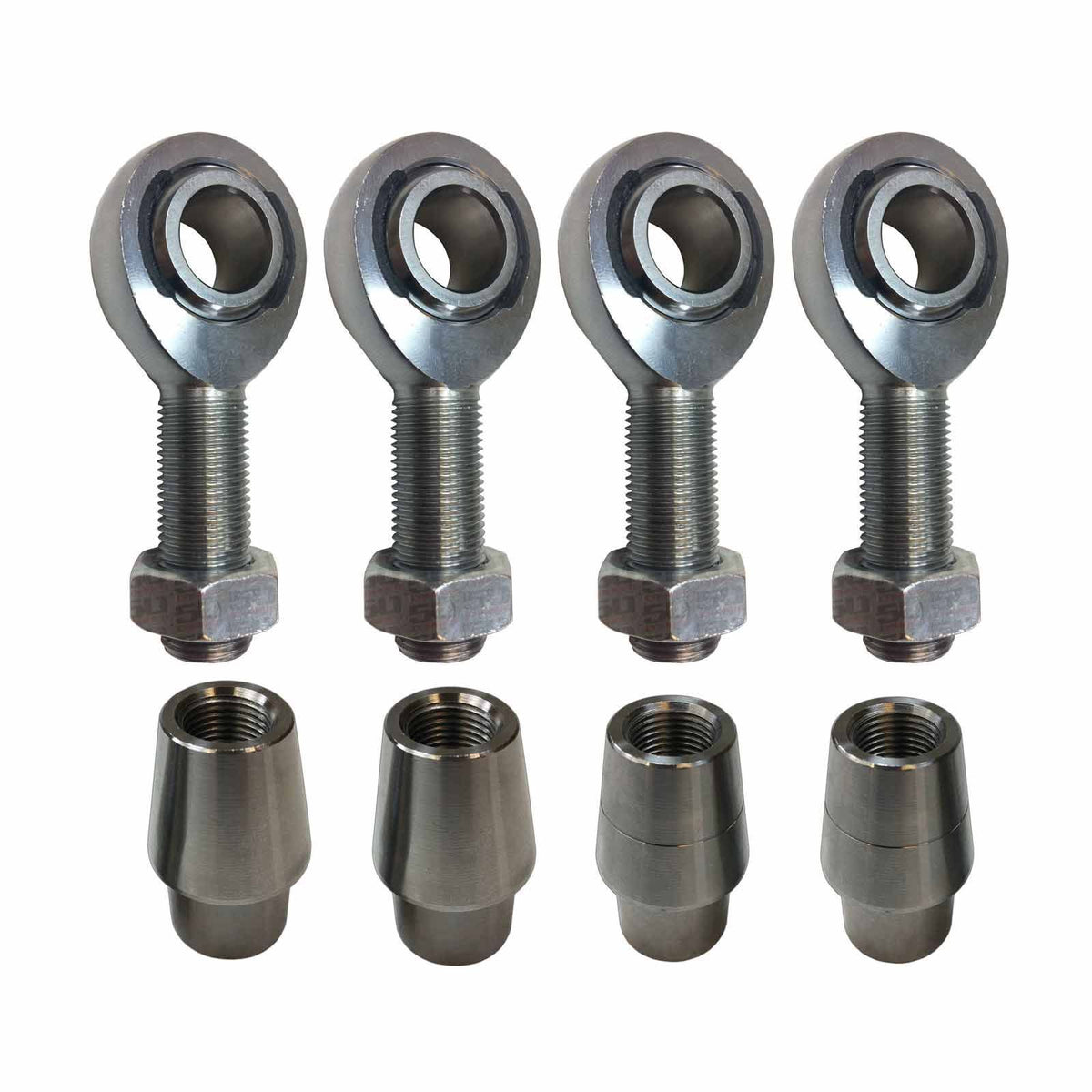

| 3/4" Sway Bar Link Rod End Kit for 1.75" OD Tubing - Chromoly Heim Joints and Bungs

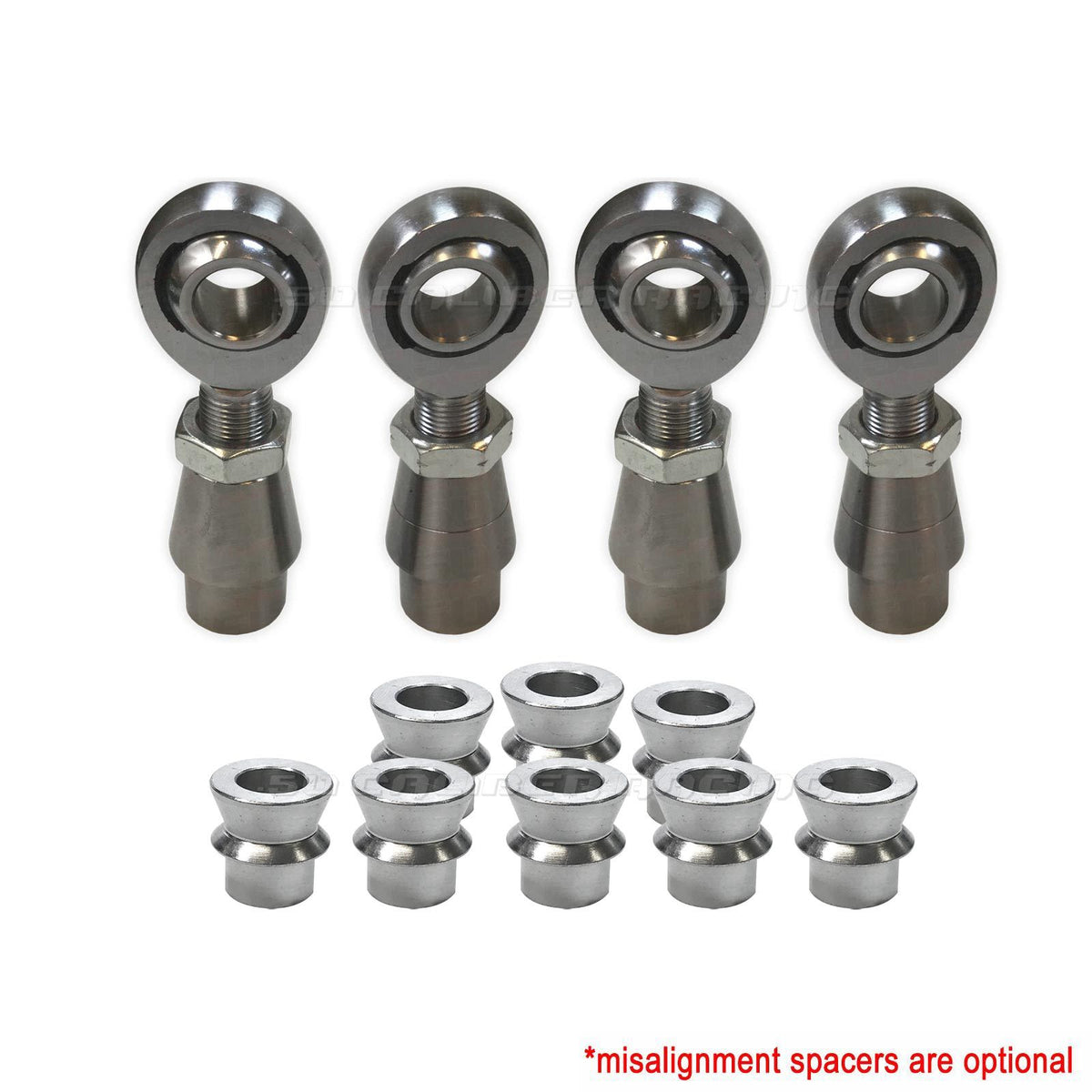

| 3/4" Sway Bar Link Rod End Kit for 1.75" OD Tubing - Shown with Optional Misalignment Spacers

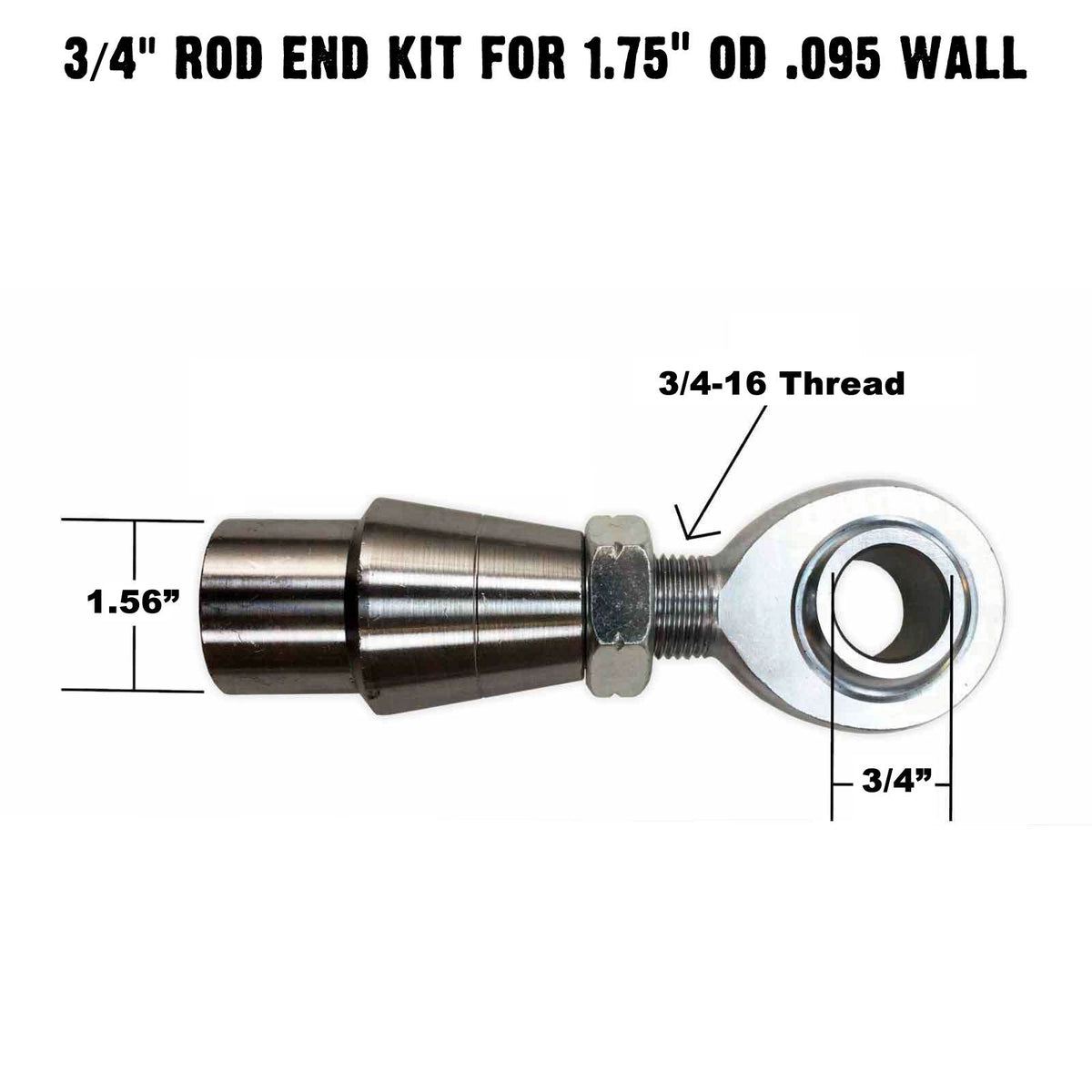

| 3/4-16 Sway Bar Link Rod End Kit - 1.75" OD .095 Wall Round Tubing - Dimensions
| 3/4-16 Sway Bar Link Rod End Kit - 1.75" OD .120 Wall Round Tubing - Dimensions
3/4 Chromoly Heim Joint Rod End Kit for 1.75" Tubing – Sway Bar Link | 3/4" Sway Bar Link Rod End Kit - Free can cooler included!

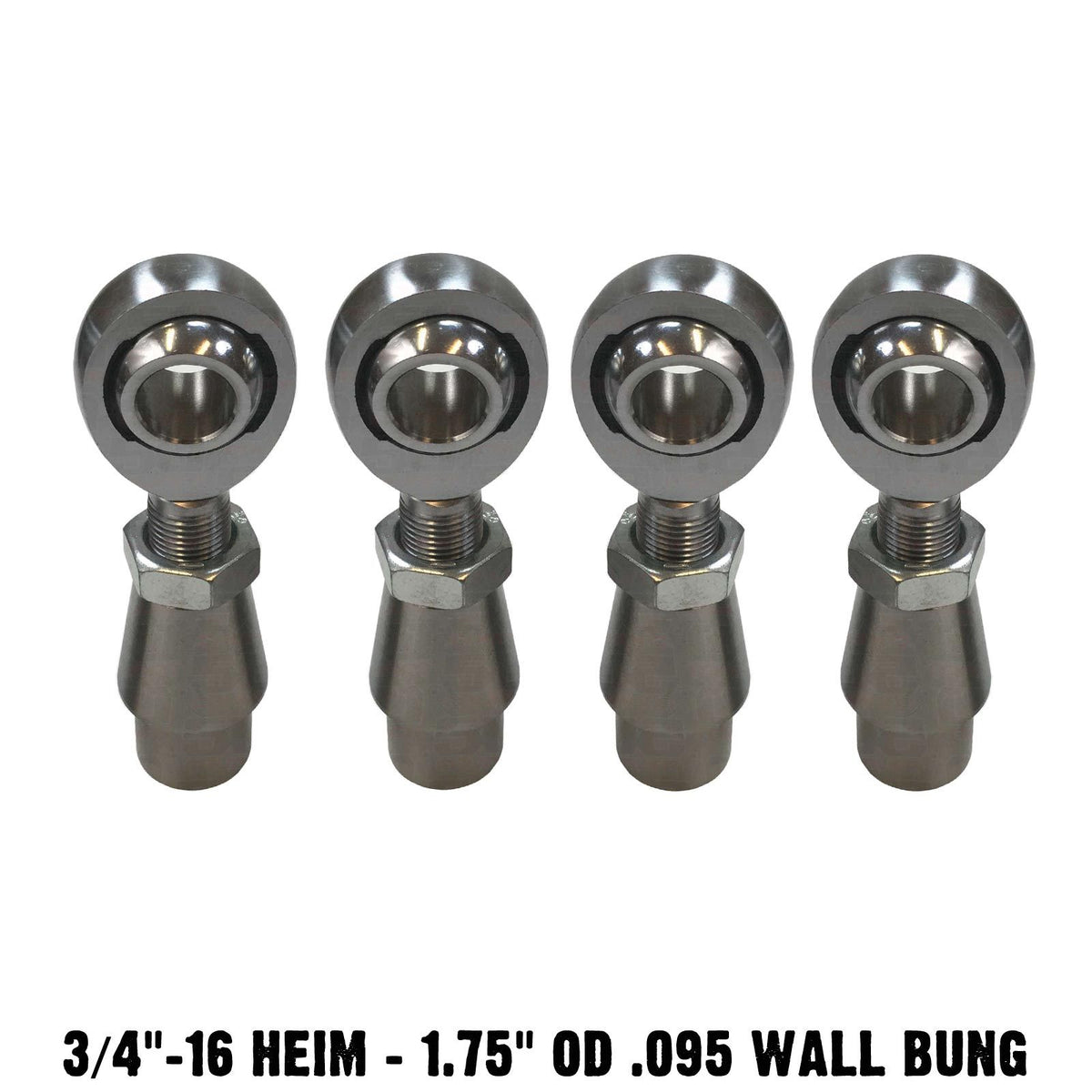

| 3/4-16 Sway Bar Link Rod End Kit - 1.75" OD .095 Wall Round Tubing - NO Spacers
3/4 Chromoly Heim Joint Rod End Kit for 1.75" Tubing – Sway Bar Link | 3/4-16 Sway Bar Link Rod End Kit - 1.75" OD .095 Wall Round Tubing - WITH Spacers
| 3/4-16 Sway Bar Link Rod End Kit - 1.75" OD .120 Wall Round Tubing - Without Spacers

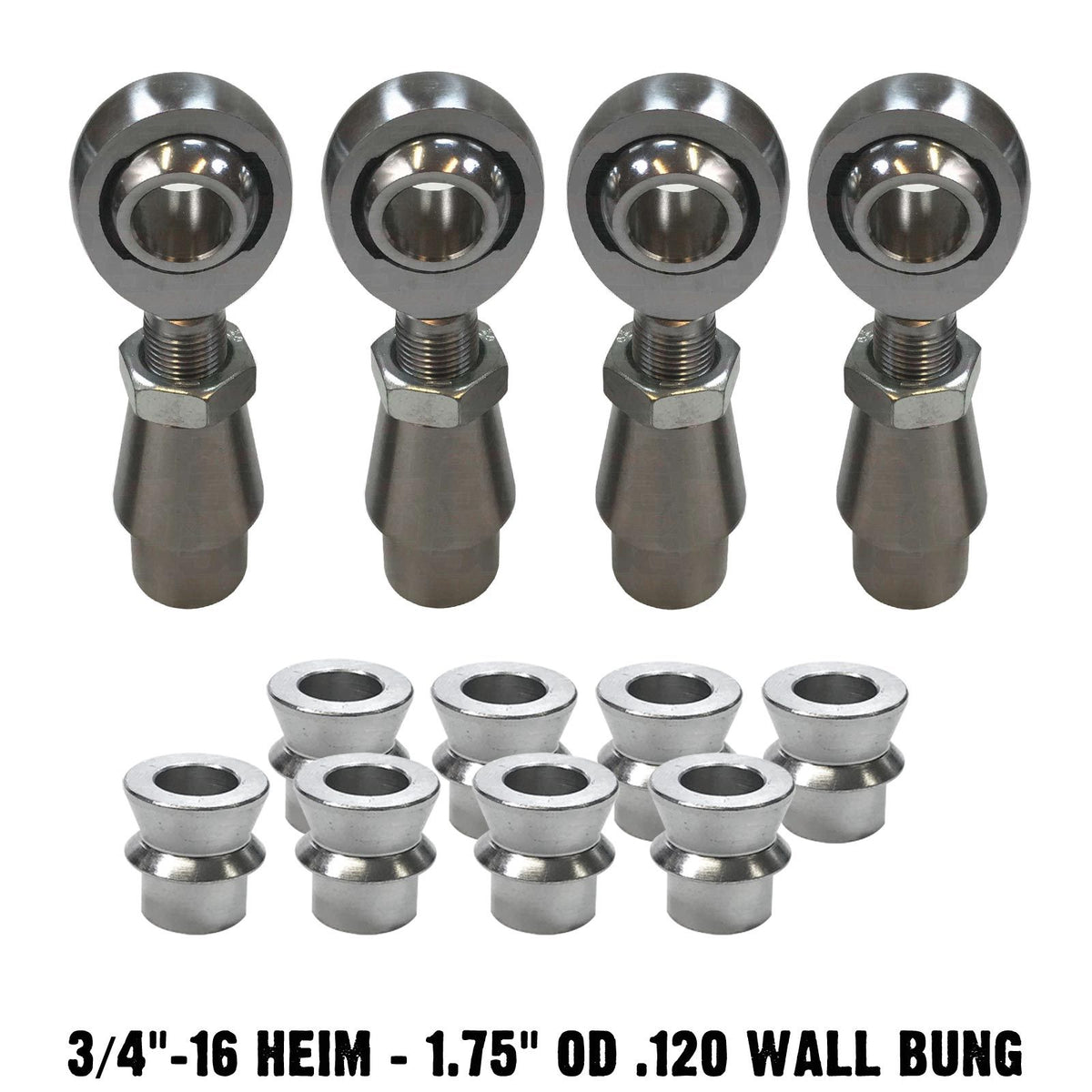

| 3/4-16 Sway Bar Link Rod End Kit - 1.75" OD .120 Wall Round Tubing - WITH Spacers

3/4 Chromoly Heim Joint Rod End Kit for 1.75" Tubing – Sway Bar Link

By 50 Caliber Racing
$98.00
SKU: 6101A29
Tubing Wall Thickness
Include High Misalignment Spacers
Rod End Kit Details
Heim joints4 (2 RH, 2 LH)
Jam nuts4 (2 RH, 2 LH)
Weld-in bungs4 (2 RH, 2 LH)
Heim3/4"-16 thread x 3/4" bore
Fits tubing1.75" OD, .095 or .120 wall
HMS spacersOptional
Material4130 chromoly, PTFE liner
Load rating28,081 lb static

Select tubing wall thickness and misalignment spacer options before ordering.

Looking for a Different Size?

1/2" heim for 1" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

5/8" heim for 1.25" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

3/4" heim for 1.5" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

3/4" heim for 1.75" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

7/8" heim for 1.5" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

7/8" heim for 1.75" tubing

Single Joint1 jointPanhard Bar2 jointsSway Bar Link4 joints4 Link8 joints

Goes with

Heim JointsHeim JointsWeld BungsWeld BungsHMS SpacersHMS Spacers

See all rod end kits

Description

Sway bar link rod end fabrication kit complete with 3/4 x 3/4 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapters). Designed specifically for 1.75" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The load rating and size make these excellent for building custom sway bar links, tie rods and radius arms for Jeeps, buggies, trucks, 4x4s and more. Includes heim joints, jam nuts and bungs. Available with or without high misalignment spacers (HMS).

Specifications

Heim Joint:

  • 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
  • Static radial load rating: 28,081 lb
  • Thread pitch: Male 3/4"-16
  • Bore: 3/4"
  • Socket end diameter: 1.750"
  • Socket width: .687"
  • Ball width: .875"
  • Center line length: 2.875"

Bung:

  • Thread: Female 3/4"-16
  • Material: Chromoly Steel
  • Thread Length: Full length
  • Choose from 2 different tube sizes:
    • 1.75" OD x .095 Wall x 1.56" ID
    • 1.75" OD x .120 Wall x 1.51" ID

Misalignment Spacers (optional):

  • Material: Chromoly Steel
  • Surface finish: Zinc plated
  • .625" ID x .743" OD x .922" W
  • Compatible with 5/8" bolt size
  • Total assembled width with HMS spacers: 1.875"

What's Included

  • (2) 3/4-16 x 3/4" bore Heims - RH Thread
  • (2) 3/4-16 x 3/4" bore Heims - LH Thread
  • (2) RH Jam Nuts
  • (2) LH Jam Nuts
  • (2) RH Weld in Bungs (tubing adapter)
  • (2) LH Weld in Bungs (tubing adapter)
  • Optional: (8) Misalignment spacers

Applications

  • Panhard bar / Trackbar
  • Drag link
  • Hi steer components
  • Radius rods
  • Sway bar links
  • Tie rods
  • Control arms
  • 3 Link / 4 Link
  • Custom Mounts

Perfect for fabricating custom suspension and steering links on your 4x4, rock crawler, sand rail, hot rod, Jeep and more!
