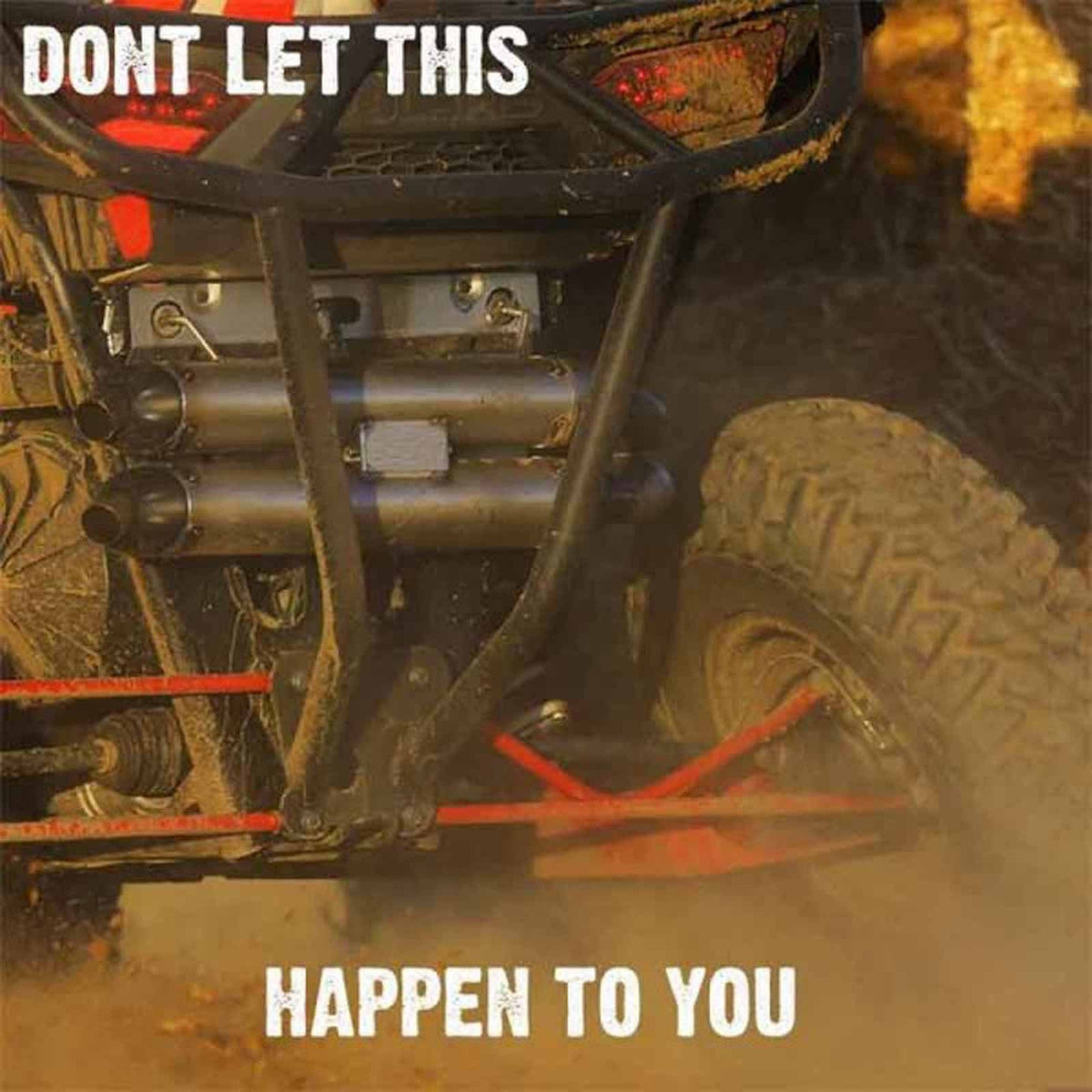

Summary: Bent or sloppy radius rods let the rear wheels steer themselves. That means sketchy handling at speed, blown shocks, bent trailing arms, and frame tabs that ovalize. Fix it once with 1.25" 6061 billet rods and 5/8" 4130 chromoly rod ends, then re-set rear toe.
Why You Should Care
- Rear steer / wandering: Toe changes under load make the car dart in whoops and on landings.
- Instability mid-corner: Bump-steer out back = surprise oversteer when you don’t want it.
- Snowball damage: Shock side-loads, bent trailing arms, and wallowed-out frame tabs.
What Radius Rods Actually Do
On both the Polaris RZR and Can-Am Maverick X3, the rear radius rods lock in wheel toe and camber as the suspension cycles. If a rod bends—or the rod ends get play—the geometry moves. That’s why the car “dog-tracks,” won’t hold an alignment, or feels loose after a hit.
Symptoms You’ll Notice First
- Rear end wanders or steps out over chop and in whoops
- From behind, a wheel looks toed in/out; track doesn’t sit square
- Alignment won’t hold more than a ride
- Clunks on throttle/brake transitions
- Rapid tire wear (feathering/cupping), grease sling from CV boots
The Damage Cascade If You Ignore It
- Shocks: Side-loads → bent shafts, blown seals, cracked lower mounts
- Trailing arms: Bending/cracking from misaligned hardware
- Frame tabs: Bolt holes ovalize, tabs crack or rip
- Hub/bearings: Looseness and early failure
- CVs & axles: Bad angles overheat joints; boots tear
- Hardware/spacers: Stretched bolts, hammered misalignment spacers
Quick At-Home Check (No Alignment Rack)
- Ground sight: Park level, look from behind—do both rears point the same?
- Straightedge/string: Measure front vs. rear edges of each tire to spot toe change.
- Rod/end feel: With the car safely lifted, disconnect one end. Rods should be straight; ends firm and smooth (nylon/PTFE liners).
- Tab holes: Pull bolts and inspect. If holes are oval, plan a repair plate before reinstall.
The Fix That Actually Holds Up
- 1.25" 6061 billet radius rods (solid, billet aluminum), stiffer and lighter than stock
- 5/8" 4130 chromoly heim joints with nylon/PTFE liners for precise toe control
- Quality high-misalignment spacers
- Set rear toe to spec after install; re-torque after the first hard ride
Install Notes to Save You Time
- Mock up all rods finger-tight before final torque so nothing binds
- Set toe with string plates or an alignment bar; paint-mark bolts after torque
- Recheck torque after one full ride—hardware seats on the first cycle
Fitment Call-Outs
Can-Am Maverick X3: Know your width—64" vs. 72" sets are not interchangeable. Measure track width on stock backspacing.
Polaris RZR: Confirm model/year and rear suspension style (XP/Pro-series/Trail). Match kit to your platform and hardware style.
FAQ
Do I have to replace all the rods?
If one bent, the rest took the same abuse. Replacing as a set keeps geometry true and saves you from chasing alignment.
Can I straighten a bent rod?
Don’t. Micro-cracks and lost temper mean the next failure comes sooner—and harder.
Heim vs. rubber bushings?
Heims hold toe under load and feel precise. Choose 4130 chromoly with PTFE/nylon liners and maintain them.
Who Benefits Most
- Desert/trail riders who see whoops and airtime
- Drivers who’ve already ovalized a tab once
- Racers who need predictable toe under load
What to Do Next
- Inspect rods, rod ends, spacers, and frame tabs
- Choose the correct kit (RZR or X3; verify width/model)
- Install, set toe, torque, and paint-mark bolts
- Re-check after the first ride
